SCSI I/O Board

1
2

Table 6-5 SCSI I/O Board Connectors (bottom side)

Figure Legend
1
2
3
4

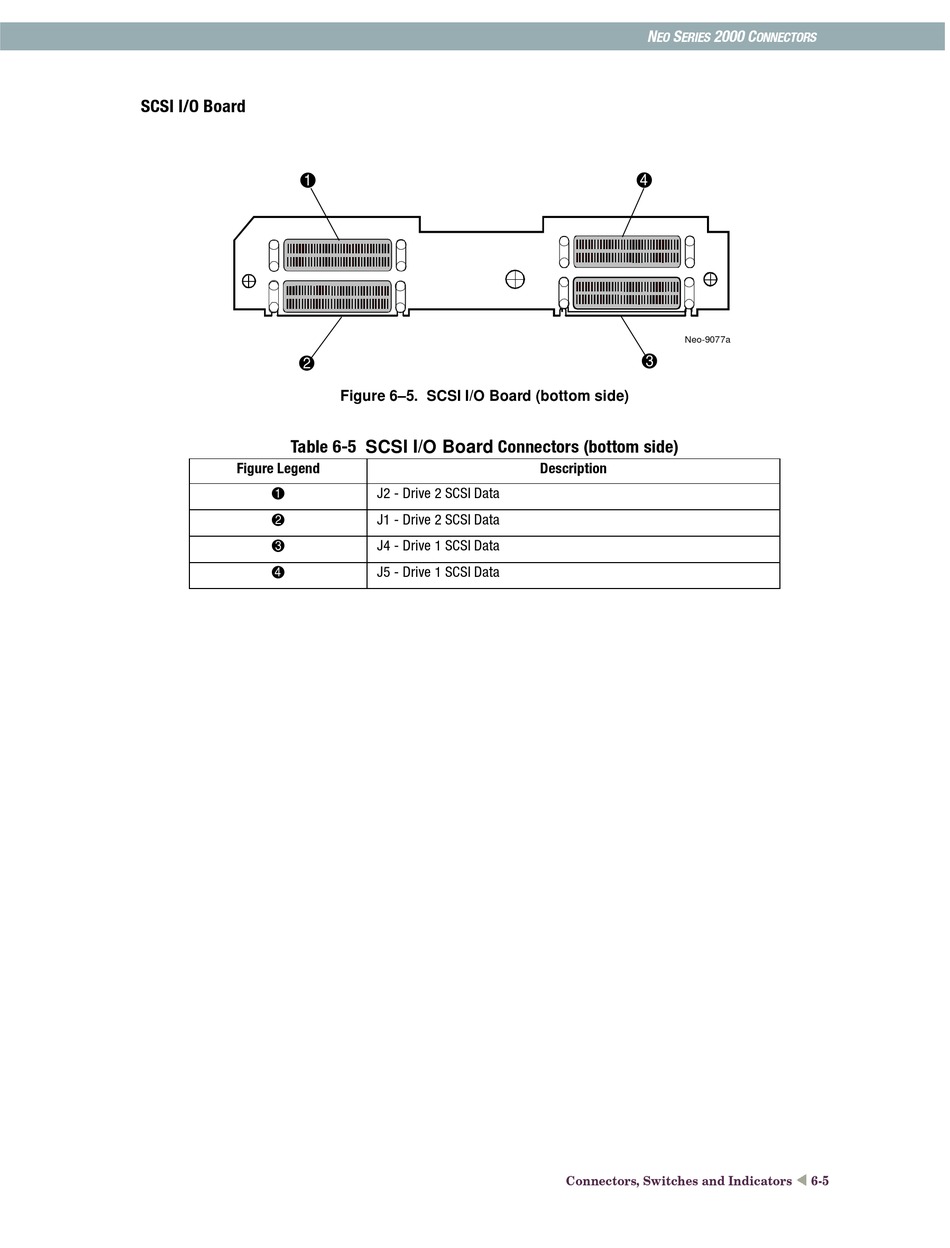

Figure 6–5. SCSI I/O Board (bottom side)
J2 - Drive 2 SCSI Data
J1 - Drive 2 SCSI Data
J4 - Drive 1 SCSI Data
J5 - Drive 1 SCSI Data
N S 2000 C
EO ERIES
4
Neo-9077a
3
Description
Connectors, Switches and Indicators
ONNECTORS
6-5
