Power Supply Receiver Remove and Replace

The Power Supply Receiver is installed on the left side at the rear of the library and houses the quick-
change power supply and the power cord receptacle. The Power Supply must be removed to replace the
Power Supply Receiver.

Power Supply Receiver Removal

2-36 Servicing the Neo Series 2000
u
R
EPLACE
1) Access and remove the right magazine using the Graphical User Interface (GUI). Refer to the
section "Emergency Magazine Removal"
2) Power off the library using the GUI and then switch the Master Power Switch on the power
supply at the rear of the module to the off (0) position.
3) Remove the power cord from the receptacle.
4) Remove the Power Supply using
instructions in this chapter.
5) Remove the tabletop cover, front main cover and power supply receiver Cover using
Covers Remove and Replace"
6) Working through the opening behind the right magazine track, remove the 22-pin main power
harness connector. Remove the two 4-pin drive power connectors, see
7) On the outside of the chassis, remove the two mounting screws.
8) At the back of the library, remove the two mounting screws while supporting the receiver.
9) Remove the receiver through the opening in the top of the library.

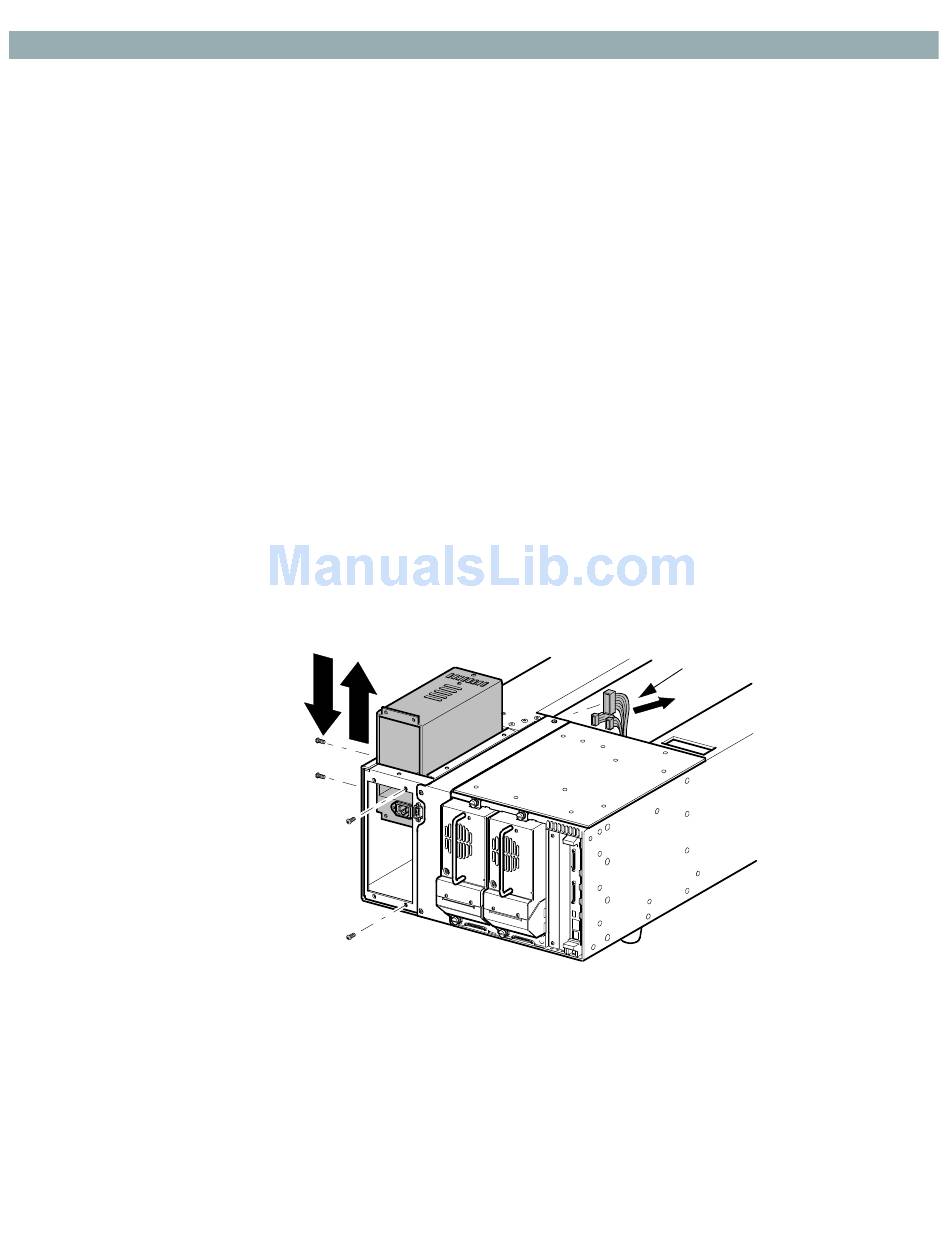

Figure 2–36. Power Supply Receiver Remove and Replace
if necessary.
"Fibre Channel Option Card Remove and Replace"
instructions in this chapter.
"Library
Figure 2–36.
22 AND 4 PIN
CONNECTORS
Neo-9050
