Lower Card Cage Fan Removal

1) Remove the lower access panel (2 screws) located at the lower left of the right side of the
chassis. This panel accesses the Card Cage Backplane Expansion PCB.
2) Disconnect the cable at J11 on the Card Cage Back Plane Expansion PCB
3) Remove the two screws (outside of the unit to the right of the access panel) that secure the
Flex Cable Bracket
allow removal of the fan.
4) Remove the two screws that secure the finger guard and fan to the standoffs

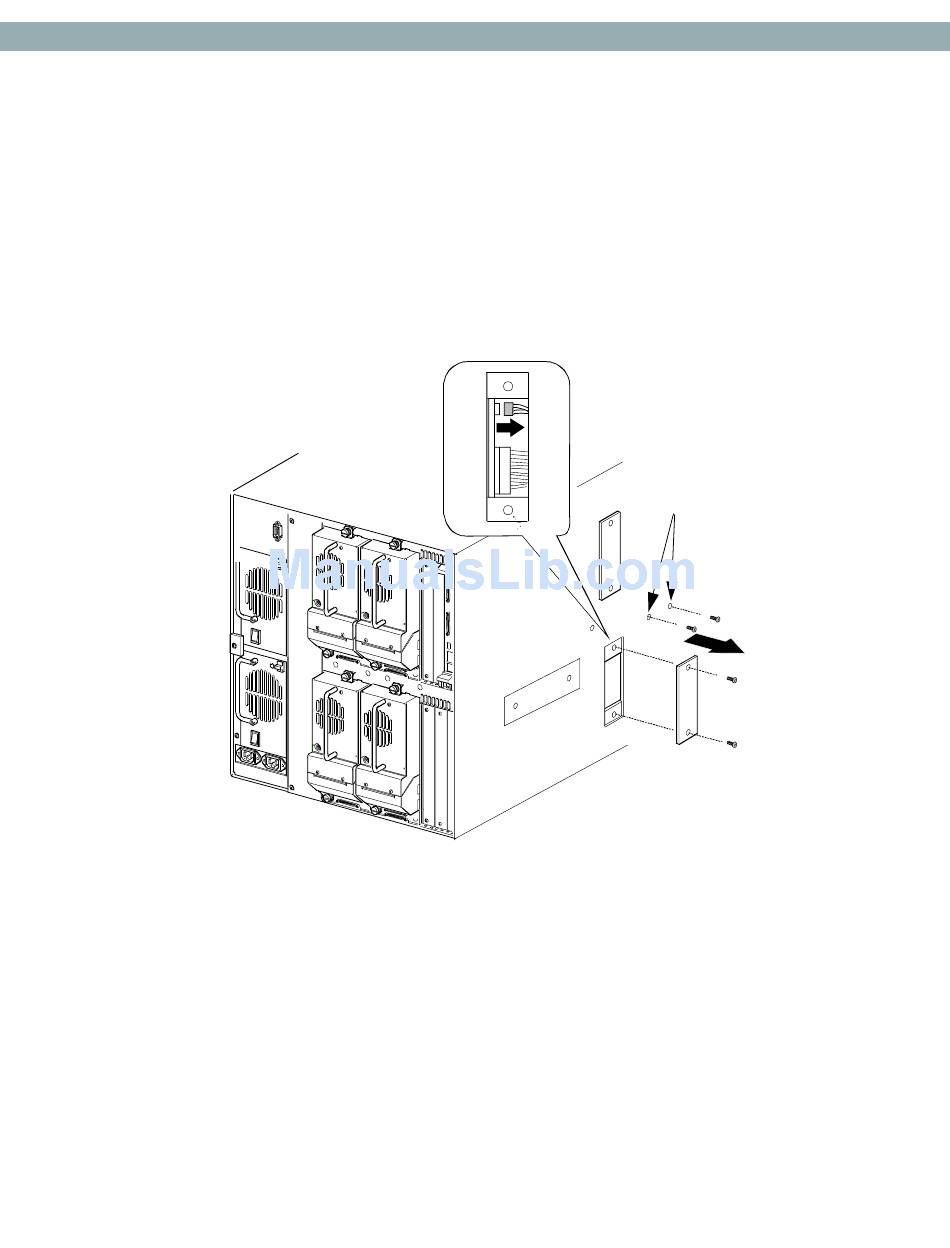

Figure 3–43. Card Cage Backplane Expansion PCB
(Figure 3–43 and Figure 3–44). Slide the bracket down the flex cable to
C C F R R
ARD AGE AN EMOVE AND EPLACE
(Figure 3–43).
(Figure 3–44).
Cable Bracket
Screws
Neo-9163
Servicing the Neo Series 4000 3-45
