Neo Series 4000 Connectors

Library Controller Board

6-8 Connectors, Switches and Indicators
u
1
2
3
4

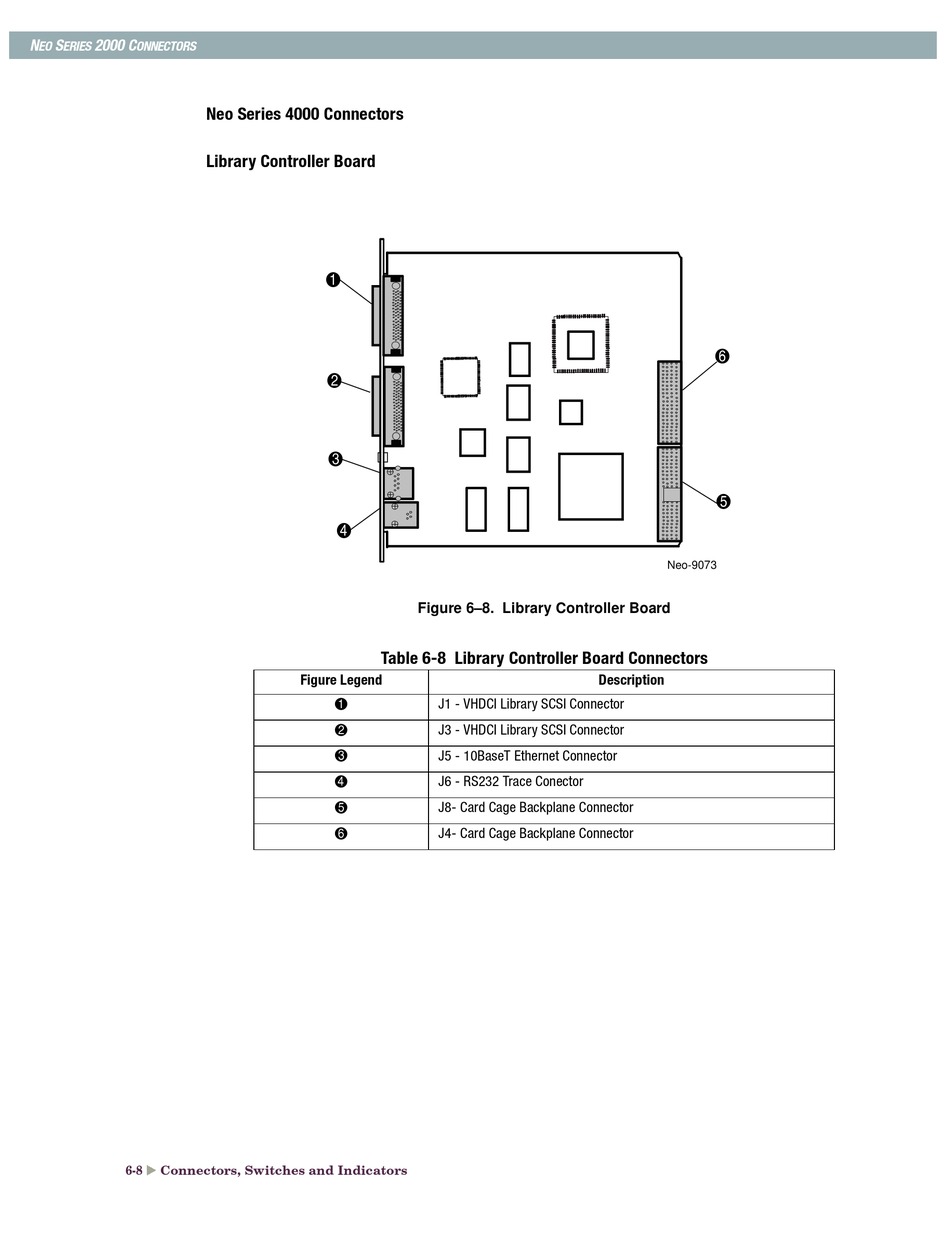

Figure 6–8. Library Controller Board

Table 6-8 Library Controller Board Connectors

Figure Legend
1 J1 - VHDCI Library SCSI Connector
2 J3 - VHDCI Library SCSI Connector
3 J5 - 10BaseT Ethernet Connector
4 J6 - RS232 Trace Conector
5 J8- Card Cage Backplane Connector
6
J4- Card Cage Backplane Connector
6
5
Neo-9073
Description
