Shuttle Assembly Robotics Replacement; Figure 2-55 Shuttle Assembly Removal - Overland Storage Neo Series Library Service Manual

S A R R
HUTTLE SSEMBLY OBOTICS EMOVE AND

Shuttle Assembly Robotics Replacement

2-58 Servicing the Neo Series 2000
u
R
EPLACE
CAUTION: Pull connector J3 by the connector body only. The wires used are small and can be
damaged easily.

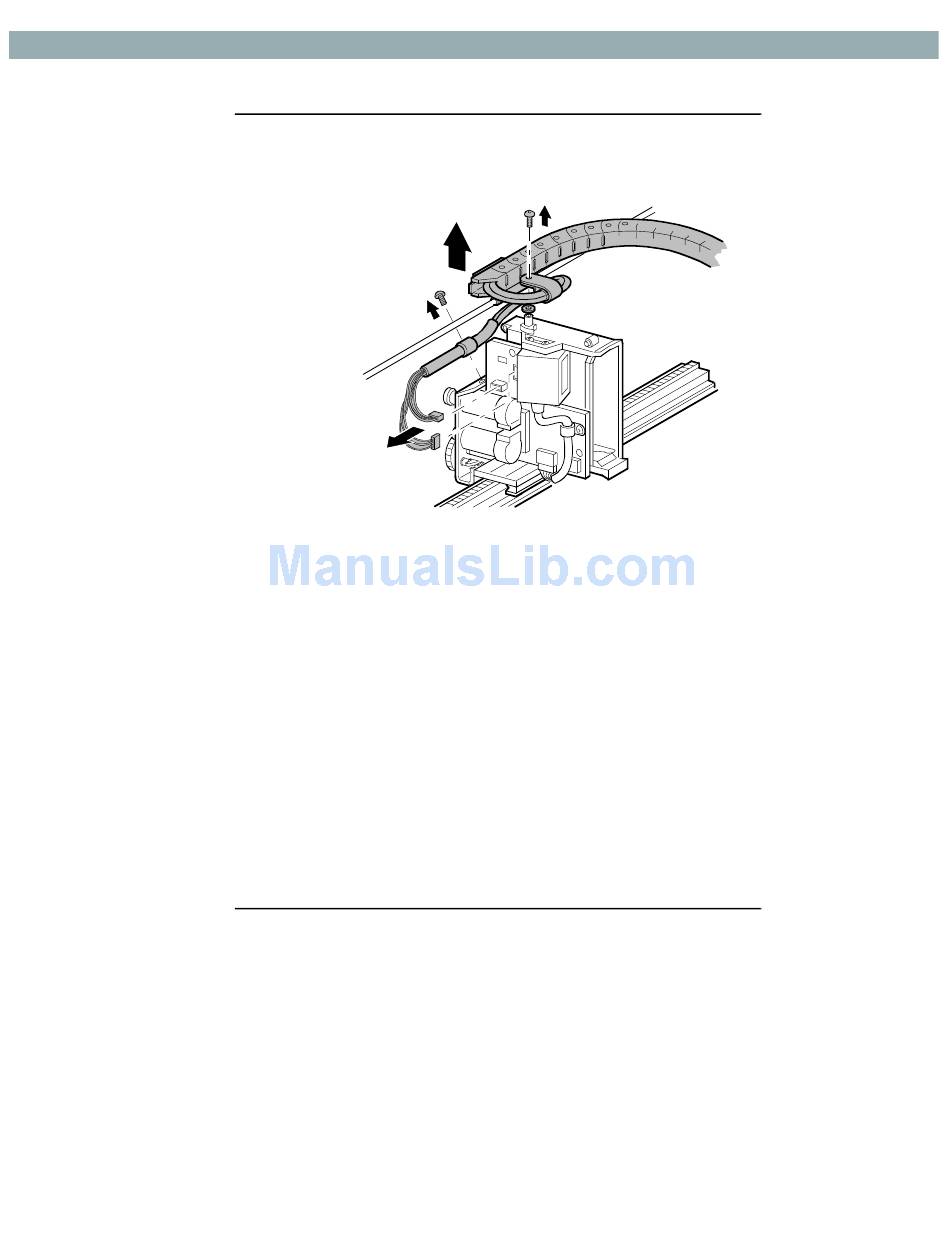

Figure 2–55. Shuttle Assembly Removal
11) Remove the screw holding the cable clamp above the pulleys, see
12) Remove the retainer screw, washer, cable clamp and spacer where the Flex Cable/Chain
Assembly pivots on the top of the Shuttle Assembly, see
13) Carefully lift the Flex Cable/Chain and Cable Support Rod up and off of the pivot point.
14) Remove the six self-locking hex nuts and washers that holds the Robot Assembly in the
chassis bottom. Use the worm gear to move the rotating track section to access the nuts if
necessary.
15) Remove the Shuttle Assembly from the library.
1) Position the Shuttle Assembly inside the chassis with the stationary track section to the front
of the library and the rotating track section to the rear.
2) Set the Shuttle Assembly base over the mounting studs.
CAUTION: Ensure no cables or wires are caught under the Shuttle Assembly base.
3) Replace the six washers and self-locking hex nuts that hold the Shuttle Assembly in the
chassis bottom. Torque to 5-6 in/lbs.
4) Lift the Cable Guide Rod and Flex Cable/Chain pivot block up and onto the pivot point on the
Shuttle Assembly.
Neo-9066
Figure 2–55.
Figure 2–55.
