C C F R R
ARD AGE AN EMOVE AND EPLACE
J11
Neo-9053a

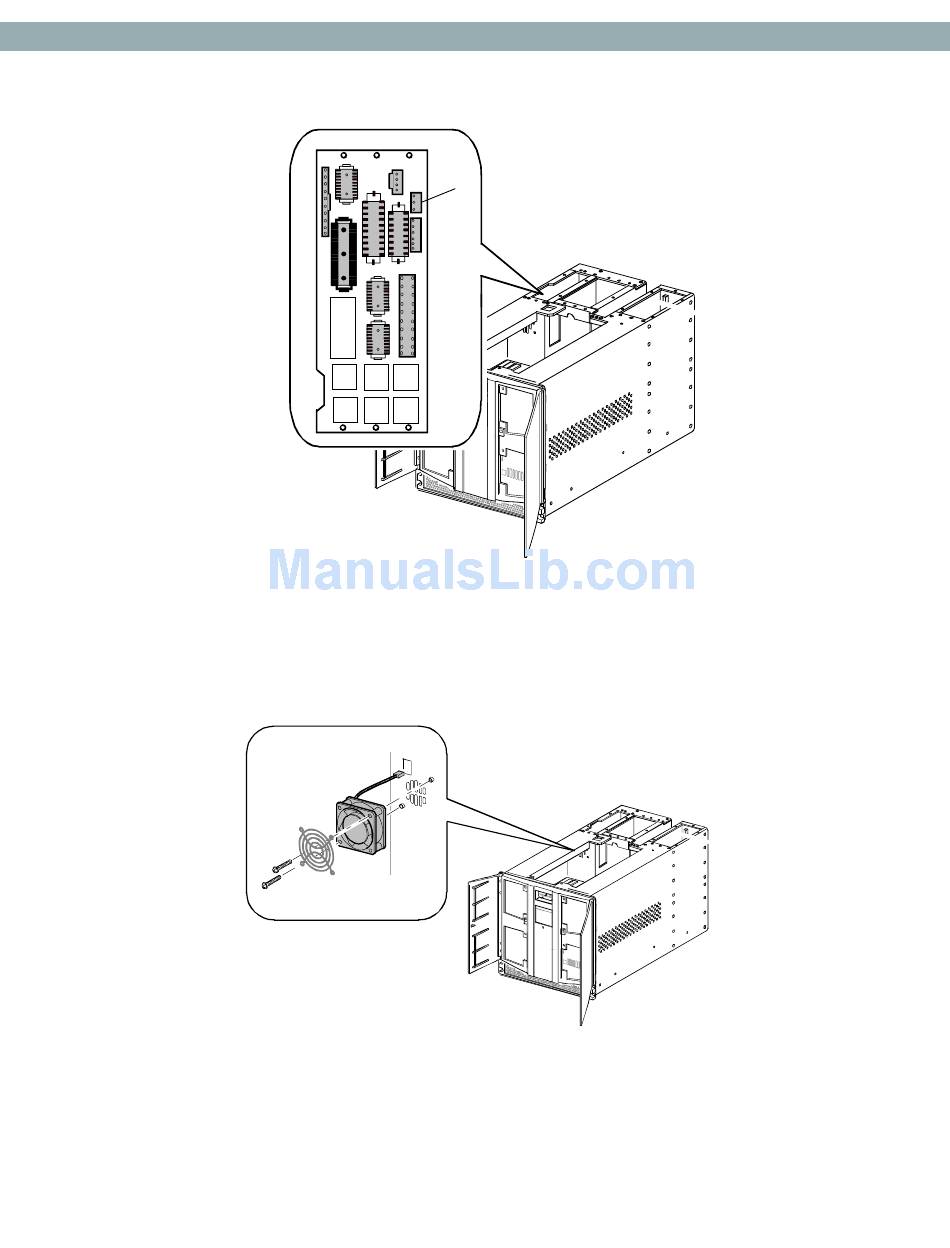

Figure 3–40. Card Cage Backplane Assembly
3) Remove the two screws that secure the finger guard and fan to the studs.
4) Pull the fan straight off of the standoffs while guiding the fan cable out through the cable
access hole, (Figure 3–41).
Neo-9055a
Figure 3–41. Upper Card Cage Fan Removal
5) Remove the Card Cage Fan from the library.
Servicing the Neo Series 4000 3-43
