Front Panel Latch Assembly Replacement; Figure 3-16 Applying Power - Overland Storage Neo Series Library Service Manual

F P L A R
RONT ANEL ATCH SSEMBLY EMOVE AND

Front Panel Latch Assembly Replacement

3-18 Servicing the Neo Series 4000
u
R
EPLACE
NOTE: The wires from the right-hand magazine Latch Assembly to the left of the GUI Assembly
need to be routed with the blue wires above the mounting post and the orange wires below the
mounting post. The sleeved section of the cable is then routed on top of the PCB for the power
on LED display.
1) With the magazine door open, position the Front Panel Latch Assembly in the Front Panel and
loosely replace the two mounting screws,
2) Loosen the screws that mount the solenoid body to the bracket and gently push forward.
Tighten the screws while applying pressure downward and to the left.
NOTE: This step may require some adjustment to latch the door properly.
3) Replace the Front Panel using
4) Turn on the library module as follows, see
a.Connect the power cords to the power supply's receptacle (1).
b.Toggle the power switches located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3)
4) Test the operation of the solenoid several times using the GUI to open the door.
2
1
(Figure 3–15).
"Front Panel Remove and Replace"
Figure 3–16.

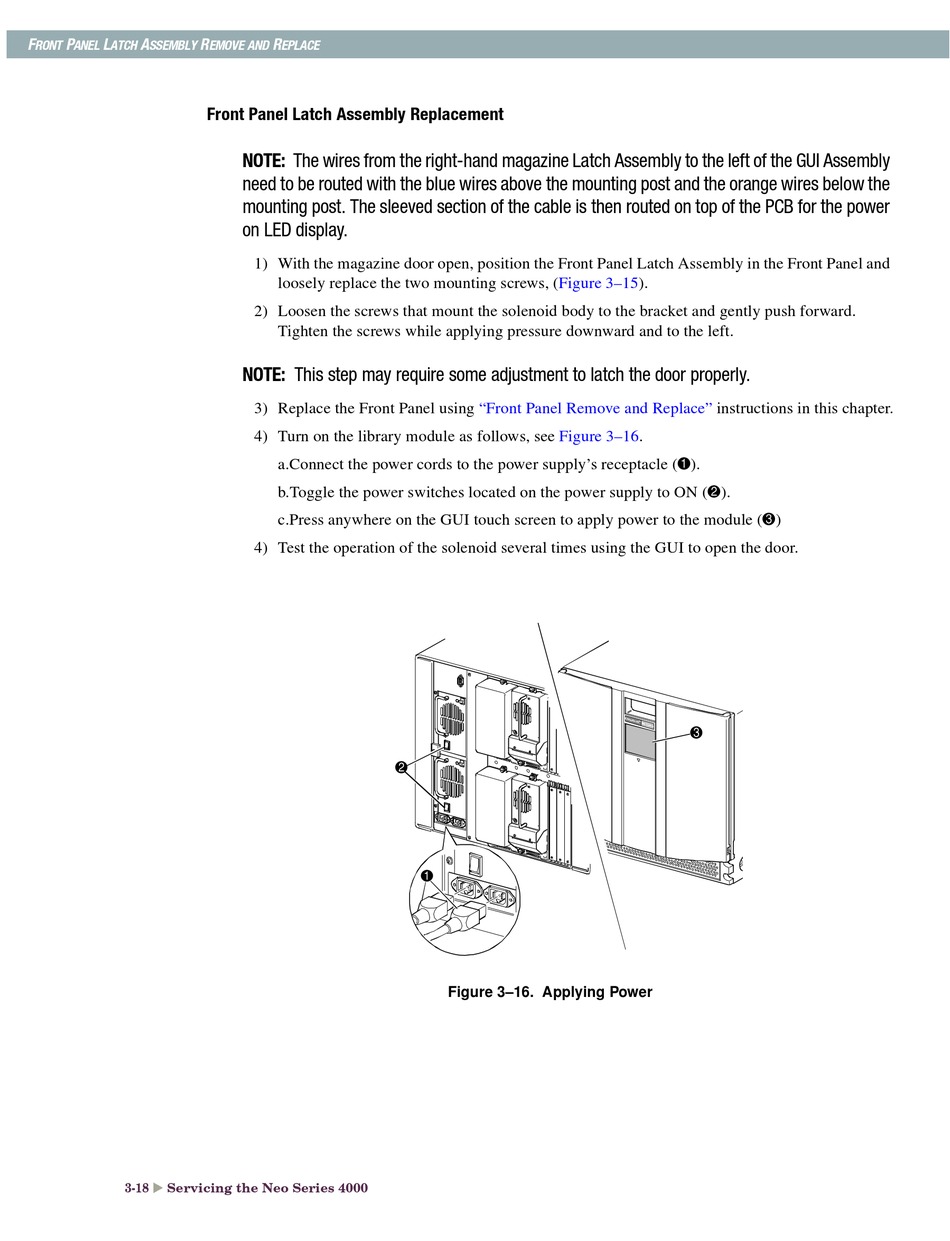

Figure 3–16. Applying Power
instructions in this chapter.
3
