Figure 6-16 Scsi I/O Board (Top Side); Table 6-16 Scsi I/O Board Connectors (Top Side) - Overland Storage Neo Series Library Service Manual

N S 2000 C
EO ERIES ONNECTORS
6-16 Connectors, Switches and Indicators
u
1

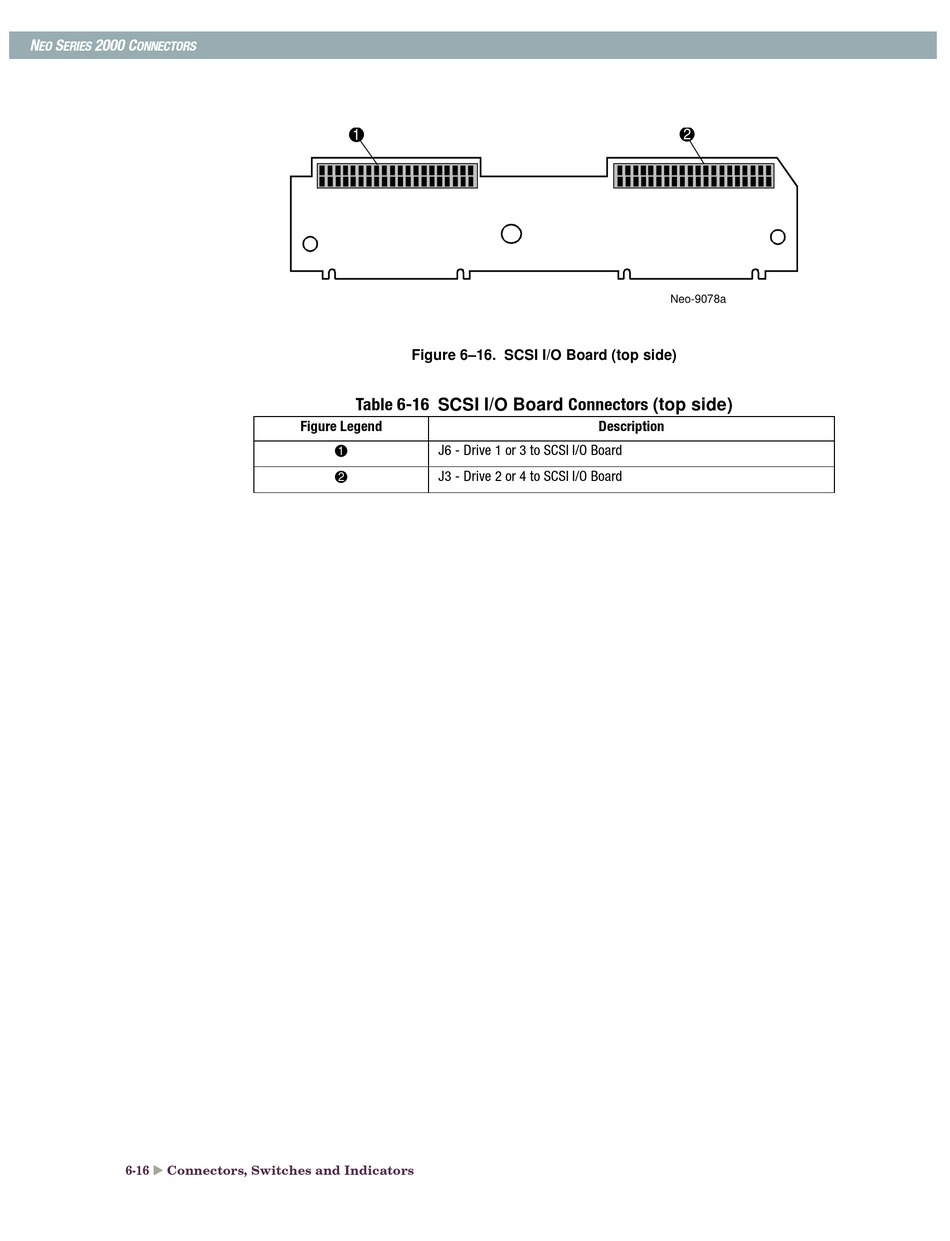

Figure 6–16. SCSI I/O Board (top side)

Table 6-16 SCSI I/O Board Connectors (top side)

Figure Legend
1 J6 - Drive 1 or 3 to SCSI I/O Board
2
J3 - Drive 2 or 4 to SCSI I/O Board
2
Neo-9078a
Description
