N S 2000 C
EO ERIES ONNECTORS

Shuttle Assembly Board

6-12 Connectors, Switches and Indicators
u
1
2
3
4

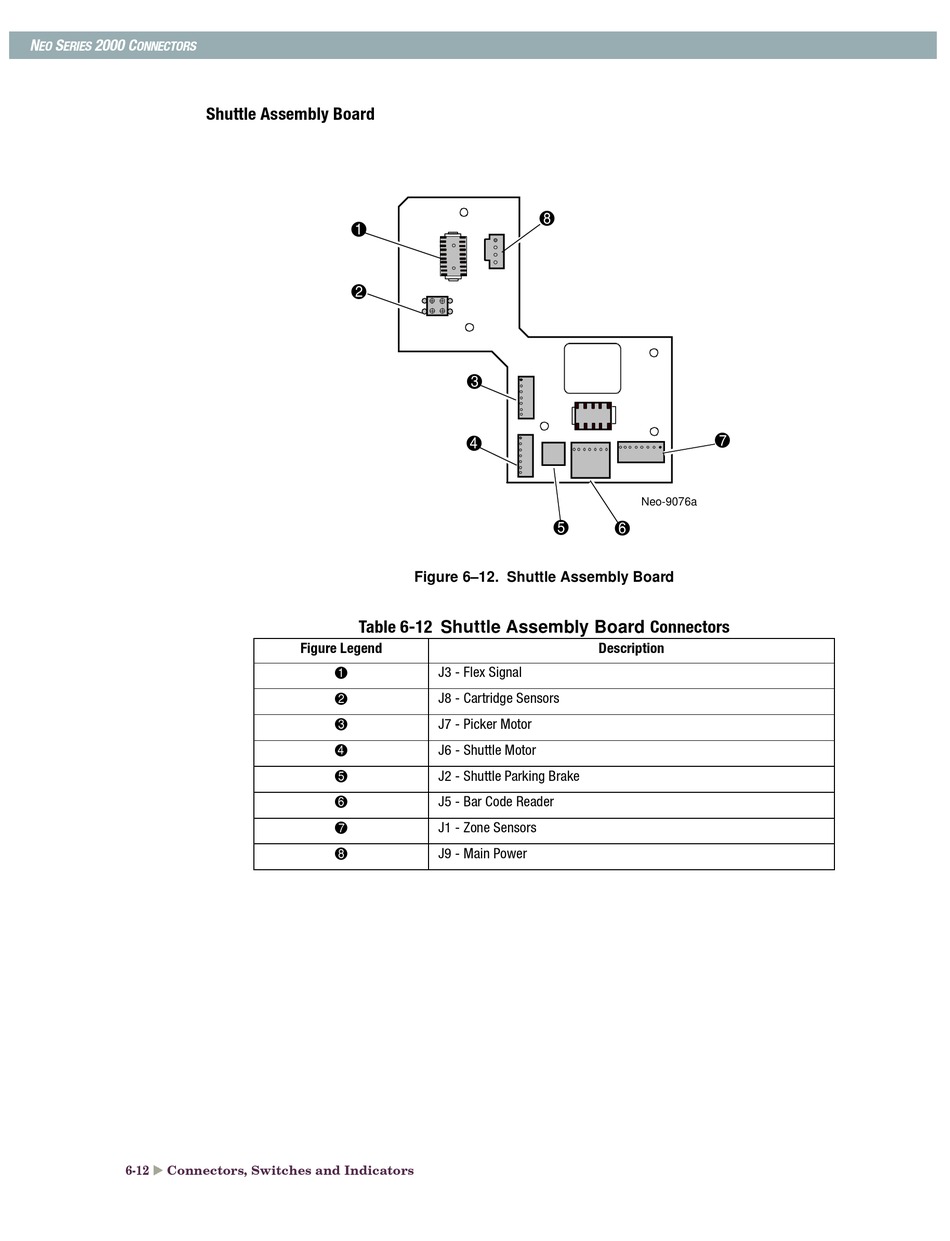

Figure 6–12. Shuttle Assembly Board

Table 6-12 Shuttle Assembly Board Connectors

Figure Legend
1
J3 - Flex Signal
2
J8 - Cartridge Sensors
3 J7 - Picker Motor
4
J6 - Shuttle Motor
5
J2 - Shuttle Parking Brake
6 J5 - Bar Code Reader
7 J1 - Zone Sensors
8 J9 - Main Power
8
7
Neo-9076a
5 6
Description
