Indicators

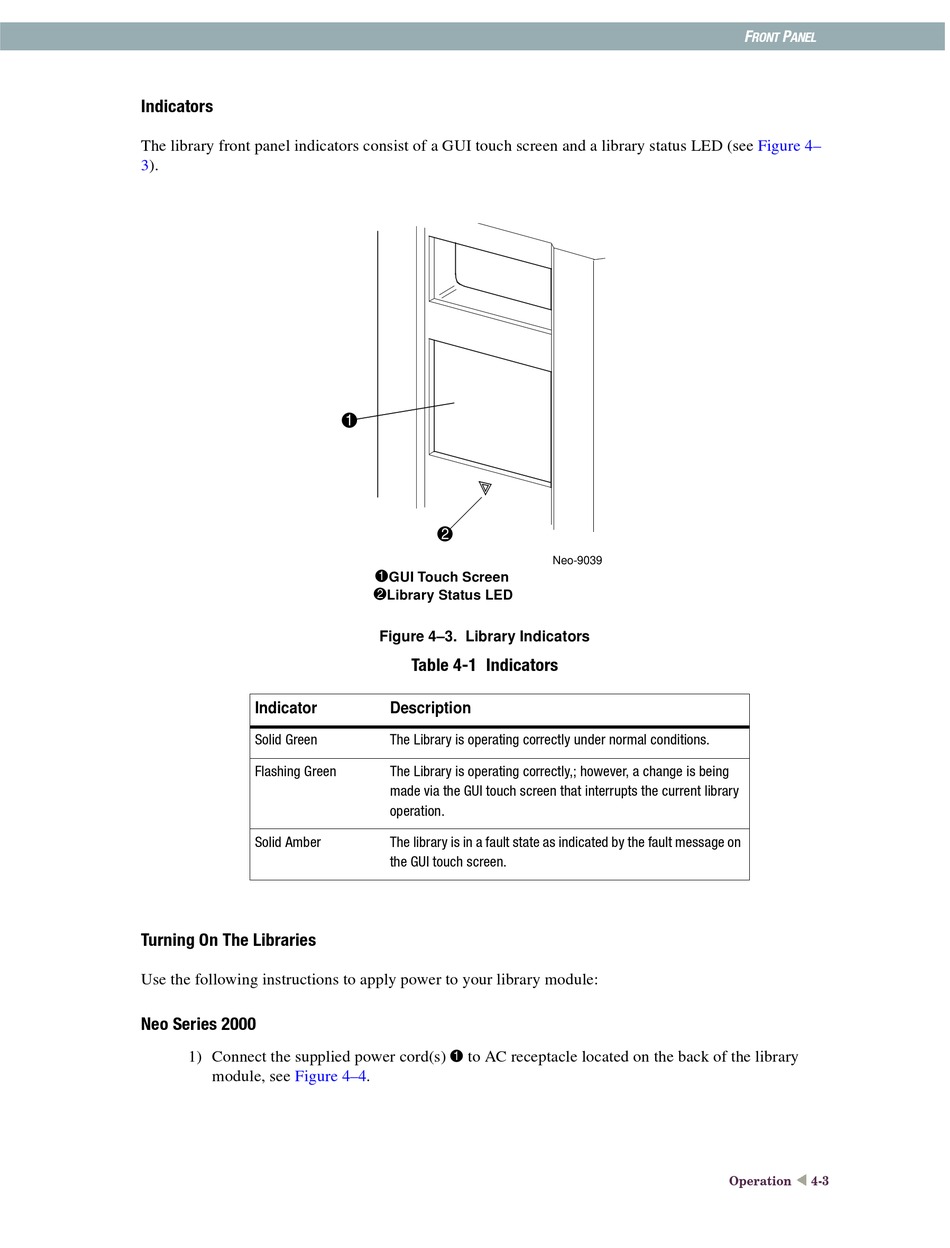

The library front panel indicators consist of a GUI touch screen and a library status LED (see
3).
Indicator
Solid Green
Flashing Green
Solid Amber

Turning On The Libraries

Use the following instructions to apply power to your library module:

Neo Series 2000

1) Connect the supplied power cord(s) 1 to AC receptacle located on the back of the library
module, see Figure
1
2
1
GUI Touch Screen
2
Library Status LED
Figure 4–3. Library Indicators

Table 4-1 Indicators

Description
The Library is operating correctly under normal conditions.
The Library is operating correctly,; however, a change is being
made via the GUI touch screen that interrupts the current library
operation.
The library is in a fault state as indicated by the fault message on
the GUI touch screen.
4–4.
Neo-9039
Operation
