Front Panel Replacement

3-12 Servicing the Neo Series 4000
u
1) Tilt the Front Panel to the chassis to allow for GUI and Door Latch connections to be made to
the PCB (Figure 3–9).
2) On the Control Panel Printed Circuit Board (PCB) assembly located in between the chassis
and front panel, (Figure
Latches), J16 (Display), J19 (Touch Screen Stiffener), and J5 (LED). Connect the zero
insertion force cable at J19 by sliding-up the body of the connector to insert the flex cable.
3) With the Front Panel pivoted at a slight angle, position the four tabs at the bottom of the Front
Panel in the chassis openings and then slip the tabs over the chassis,
4) Pivot the top of the Front Panel in a downward motion against the chassis.
NOTE: If components have been replaced (i.e. Latches), ensure cables do not obstruct
replacement of the Front Panel.
5) Replace the four screws that hold the Front Panel to the chassis.
NOTE: Do not fully tighten the mounting screws until all 8 have been re-installed
6) Replace the Tabletop Cover and Front Chassis Cover using
Replace" instructions in this chapter.
7) Turn on the library module as follows,
a. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
2
1
3–9). Connect the cables at J14 and J10 (Left and Right Door
(Figure 3–10).

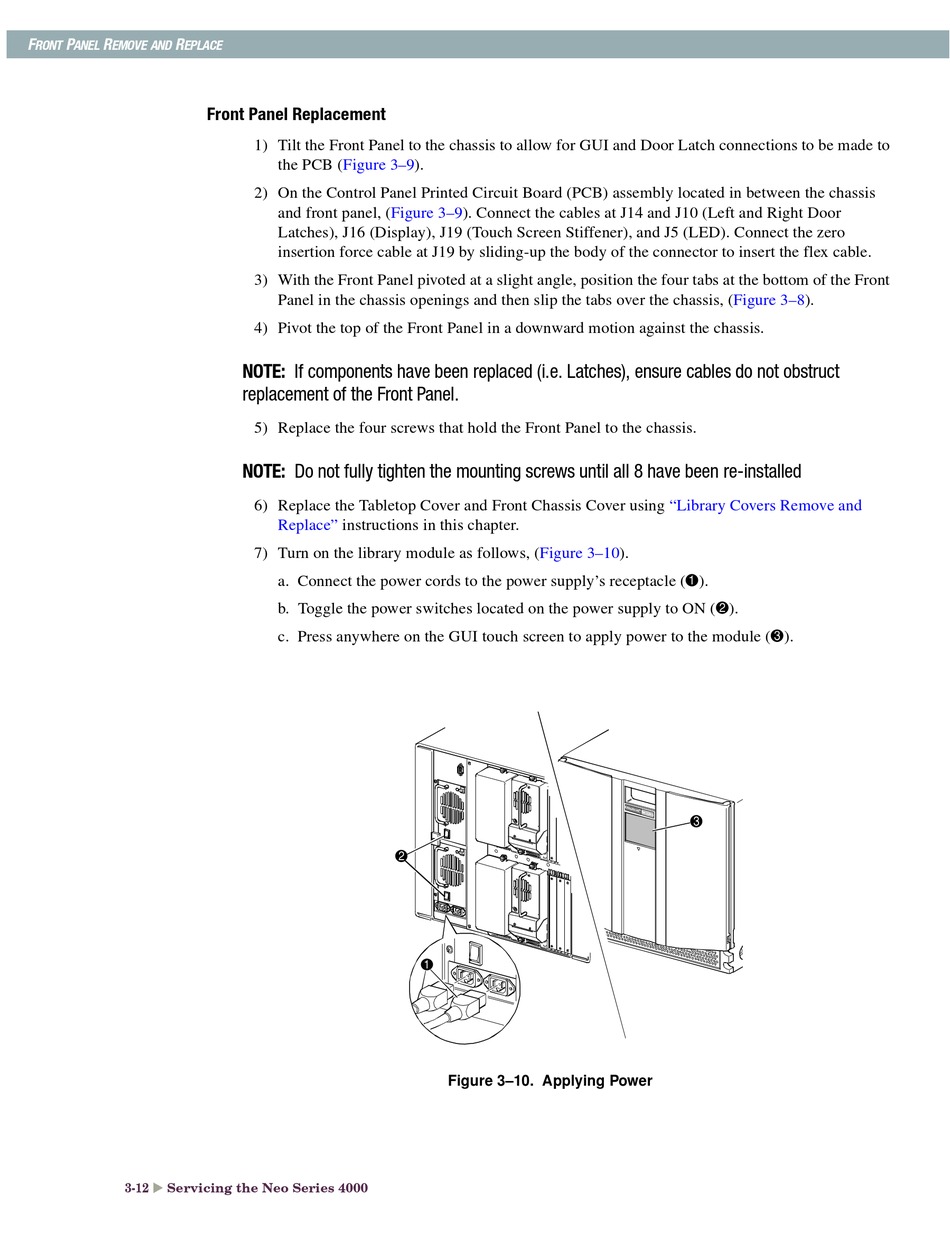

Figure 3–10. Applying Power
