Installing the TX Matrix Plus Rear Cable Management System
Identify the Parts of the Rear Cable Management System
Copyright © 2010, Juniper Networks, Inc.
Seat the TXP-F2S SIB by grasping the ejector handle and rotating the ejector handle
4.
inward until the ejectors latch into the faceplate.
Repeat the procedure for each of the remaining TXP-F2S SIBs.
5.

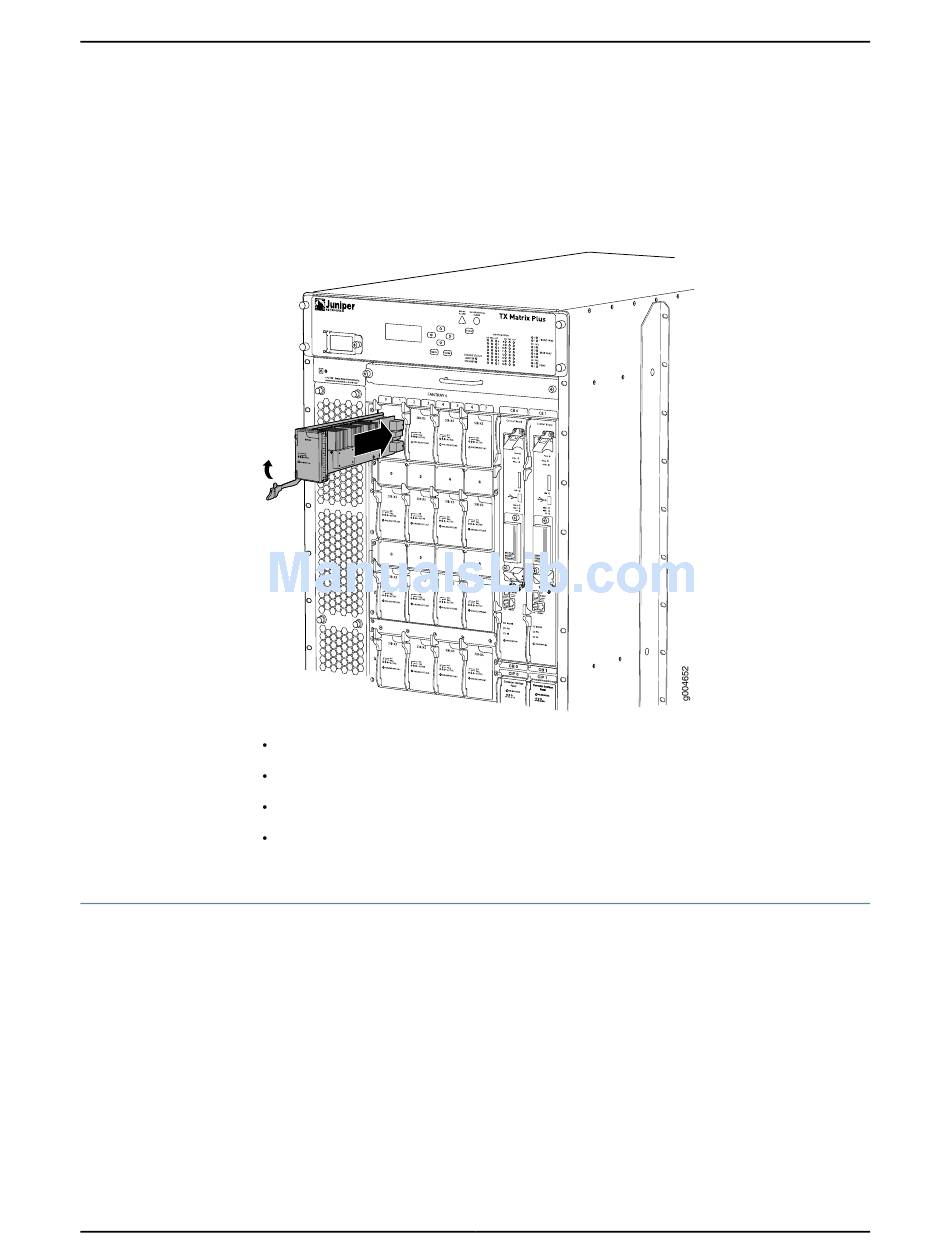

Figure 67: Reinstalling an TXP-F2S SIB
Tools Required to Install the TX Matrix Router Using a Lift on page 128
General Safety Guidelines for M Series, MX Series, and T Series Routers on page 391
TX Matrix Plus Preventing Electrostatic Discharge Damage on page 392
TX Matrix Plus Installation Safety Guidelines on page 399
Identify the Parts of the Rear Cable Management System on page 151
1.
2.
Installing the Rear Cable Management System Comb Assembly on page 152
Installing the Rear Cable Management System Shelves on page 153
3.
Installing the Rear Cable Management System Arms on page 154
4.
Remove the rear cable management system parts from the shipping crate.
1.
Identify all the parts of the rear cable management system.
2.
Chapter 11: Installing the TX Matrix Plus Router Using a Mechanical Lift
151
