Figure 62: Reinstalling A Tx Matrix Plus Seven-Input 420-A Power Supply; Figure 63: Reinstalling A Tx Matrix Plus Input Power Tray - Juniper TX MATRIX PLUS Hardware Manual

TX Matrix Plus Router Hardware Guide
Input power tray
146
NOTE: We recommend this even though the power supplies are not
connected to power.
Using both hands, slide the power supply into the chassis until you feel resistance
3.
(see Figure 62 on page 146).
Twist the ejector handles at the upper corners of the power supply faceplate clockwise
4.
until they stop.
Slide the power supply input tray into the power supply.
5.
Push the metal handle of the input power tray up toward the power supply.
6.
Fasten the input power tray to the power supply using the two captive screws. Use a
7.
Phillips screwdriver, number 2.
Repeat the procedure for the other power supply.
8.

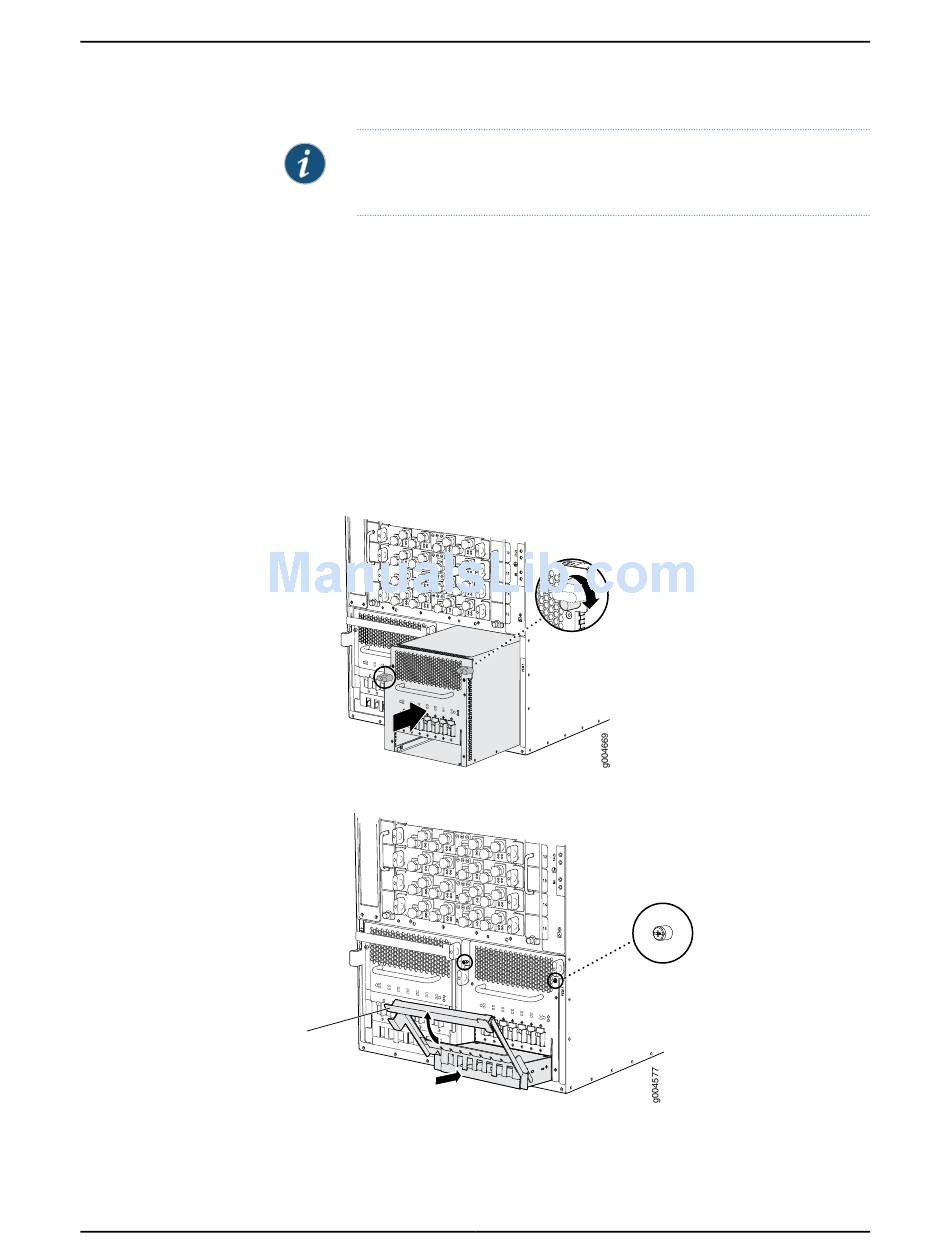

Figure 62: Reinstalling a TX Matrix Plus Seven-Input 420-A Power Supply

Figure 63: Reinstalling a TX Matrix Plus Input Power Tray

Tighten captive screws.
