TX Matrix Plus Router Hardware Guide
Related
Documentation
4
Interchassis fiber-optic array cables that connect the TX Matrix Plus router and T1600
router
Interchassis UTP Category 5 Ethernet cables that connect the TX Matrix Plus router
and T1600 router control planes
Cable management system for the fiber-optic array cables
Equipment racks for the TX Matrix Plus router and T1600 routers
Switch Interface Boards (TXP-F13 SIBs) in the TX Matrix Plus router connect with the
SIBs in the T1600 routers (TXP-T1600 SIBs) to create a high-speed switch fabric. You
manage the routing matrix by connecting the TXP-CB in the TX Matrix Plus router to
external management devices.

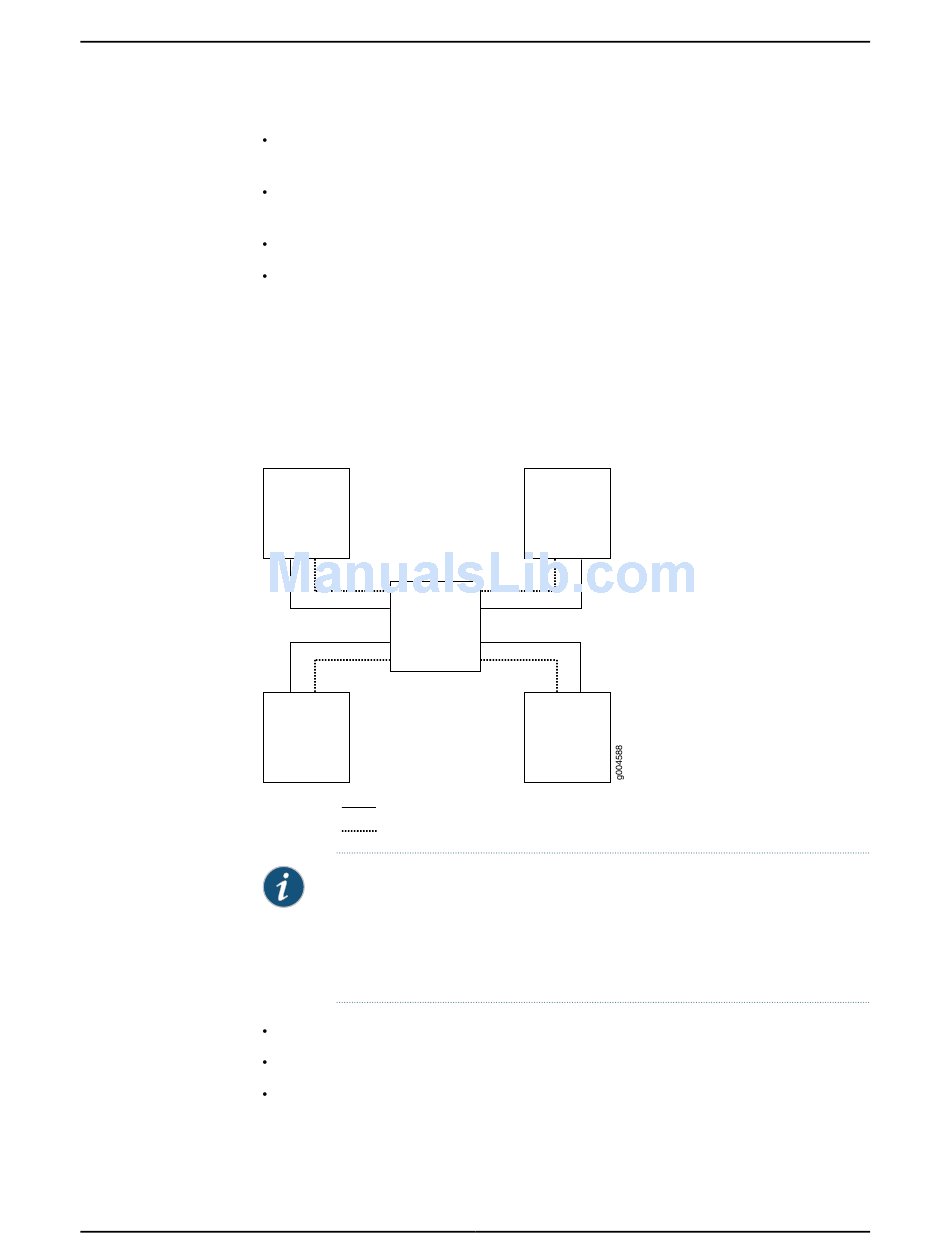

Figure 1 on page 4 shows a routing matrix that connects to four T1600 routers.

Figure 1: Routing Matrix

T1600 Router
(LCC 0)
TX Matrix
Plus
Router
(SFC)
T1600 Router
Node (LCC 2)
Data path
Control path
NOTE: A TX Matrix Plus router is also referred to as a switch-fabric chassis
(SFC). The command-line interface (CLI) uses
Plus router. A T1600 router in a routing matrix is also referred to as a line-card
chassis (LCC). The CLI and some labels on TX Matrix Plus router hardware
components use
Connecting the TX Matrix Plus Router to External Alarm-Reporting Devices on page 162
Routing Matrix with a TX Matrix Plus Router System Architecture on page 55
Routing Matrix with a TX Matrix Plus Router System Control Plane Architecture on
page 56
T1600 Router
(LCC 1)
T1600 Router
(LCC 3)
or to refer to a specific T1600 router.
LCC lcc
sfc to refer to the TX Matrix
