Figure 80: Connecting The Fiber-Optic Array Cables; Figure 81: Txp-F13 Sib; Figure 82: Cable Management Clamp - Juniper TX MATRIX PLUS Hardware Manual

TX Matrix Plus Router Hardware Guide
190
Repeat the procedure for the remaining fiber-optic array cables that connect to the
10.
TXP-F13 SIB.
Enable the TXP-F13 SIB by pressing the
11.
Route the other end of the fiber-optic array cables to the T1600 router, but do not
12.
connect the cables to the T1600 router until instructed to do so.

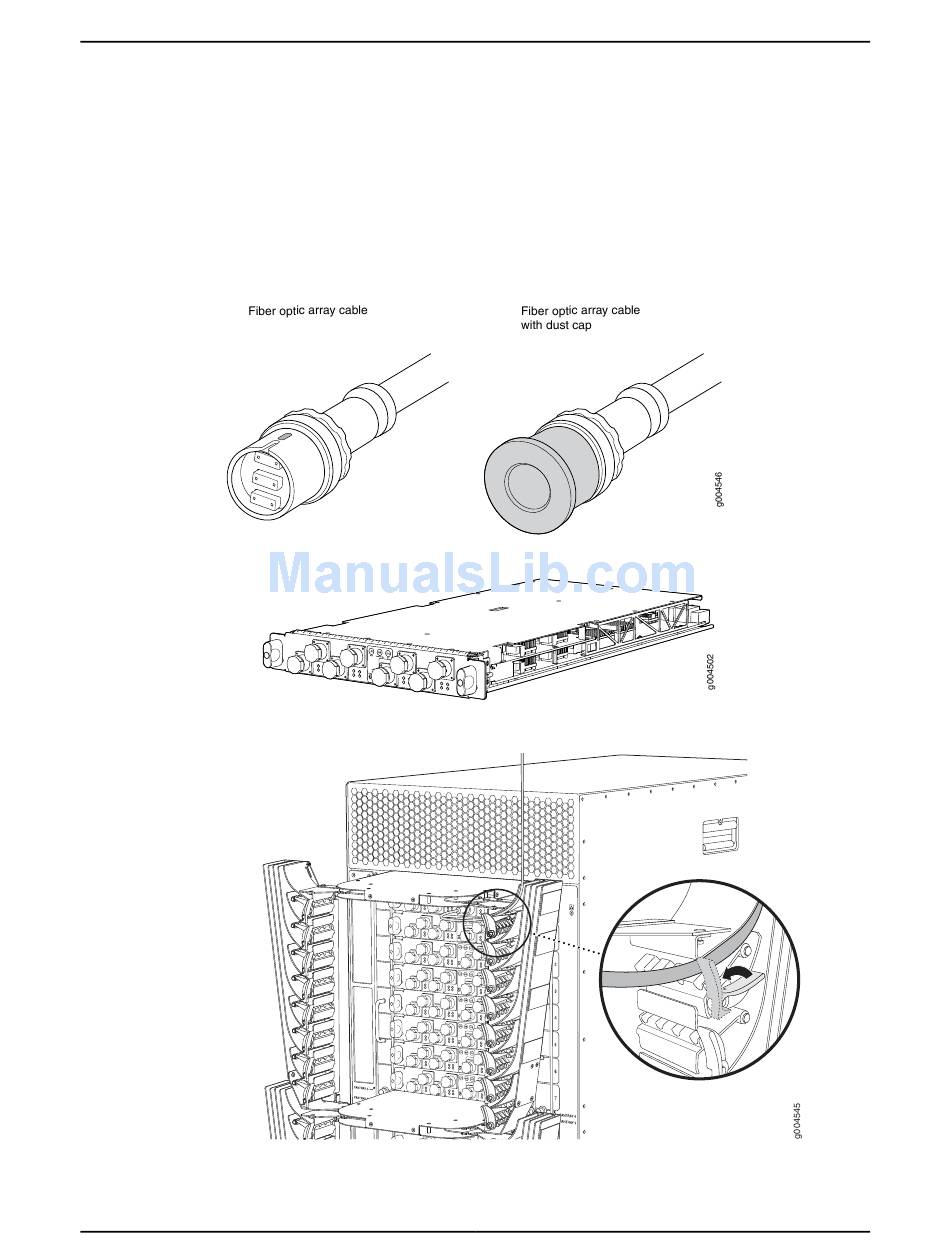

Figure 80: Connecting the Fiber-Optic Array Cables

Figure 81: TXP-F13 SIB

Figure 82: Cable Management Clamp

button.
ONLINE/OFFLINE
