Reinstalling the TXP-F13 SIBs

Copyright © 2010, Juniper Networks, Inc.
To reinstall the TXP-SIBs (see Figure 64 on page 147):
CAUTION: Be prepared to support the weight of the TX-SIB (approximately
35 lb [15.9 kg]) before you lift it.
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to an approved site ESD grounding point. See the instructions for your site.
Place one hand under the bottom edge of the TXP-F13 SIB and one hand around the
2.
top of the TXP-F13 SIB faceplate.
CAUTION: When the TXP-F13 SIB is out of the chassis, do not hold it by
its ejector handles or edge connectors. They cannot support its weight.
Locate the slot in the TXP-F13 SIB card cage in which you plan to install the TXP-F13
3.
SIB.
Lift the TXP-F13 SIB into place, and carefully align the left and right edges with the
4.
guides inside the card cage.
Carefully slide the TXP-F13 SIB all the way into the card cage until you feel resistance.
5.
Simultaneously turn both left and right ejector handles clockwise to seat the TXP-F13
6.
SIB.
Repeat the procedure for the remaining TXP-F13 SIBs.
7.

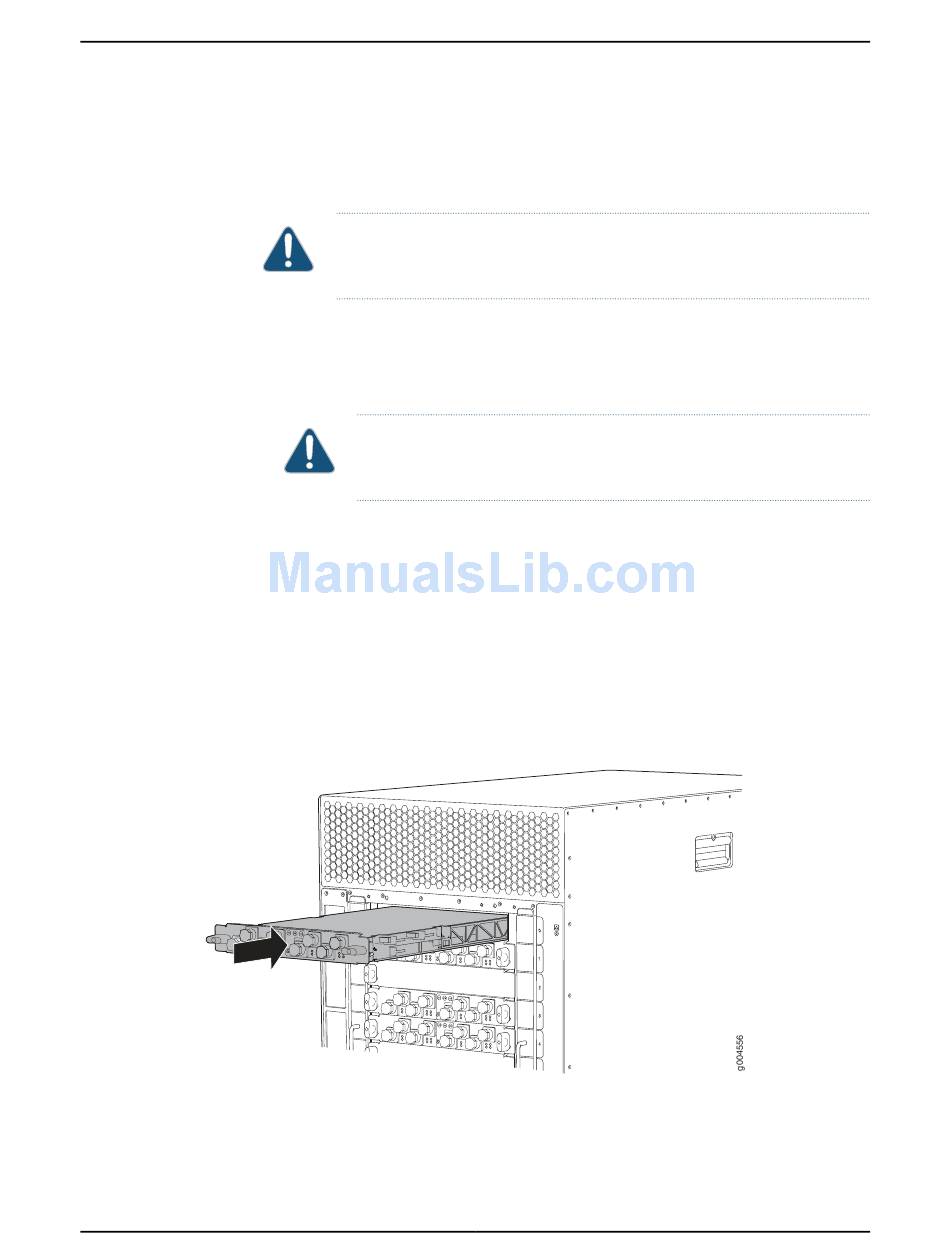

Figure 64: Reinstalling a TXP–F13 SIB
Chapter 11: Installing the TX Matrix Plus Router Using a Mechanical Lift
147
