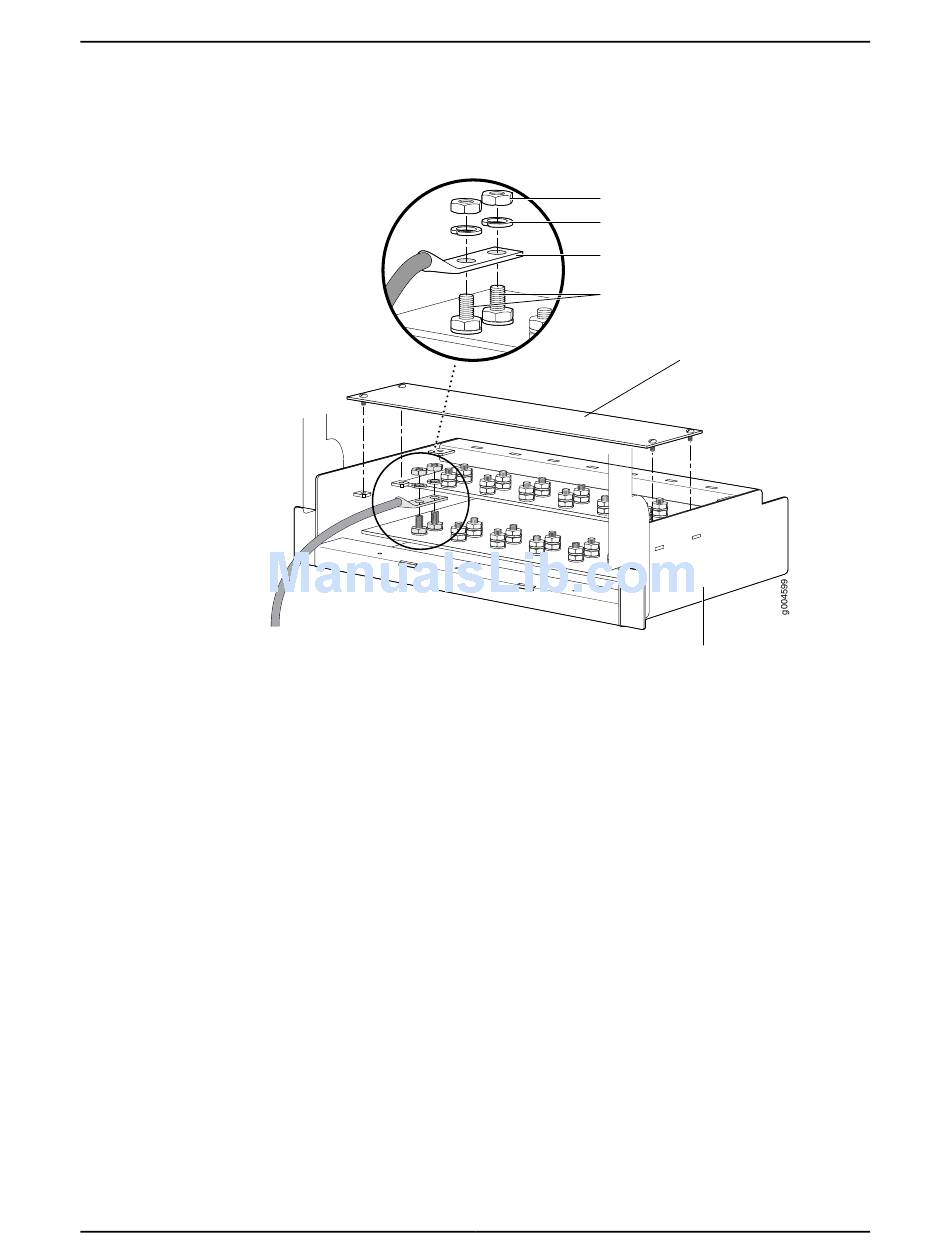

Figure 76: Connecting the Negative (–) DC Source Power Cable Lugs to
an Input Power Tray
Attach the power lug separator over the lower row of terminal studs.
13.
Remove the nuts and washers from the power terminal studs on the upper row.
14.
Secure the positive (+) DC source power cable lugs to the
15.
the upper row, first with a washer, then with a nut (see Figure 77 on page 170).
Use a 7/16-in. (11 mm) nut driver or wrench to tighten the nut. Apply between 23 lb-in.
(2.6 Nm) and 25 lb-in. (2.8 Nm) of torque to each nut.
Chapter 13: Grounding and Providing Power to the TX Matrix Plus Router
Nut
Split washer
Cable lug
Terminal studs
Power lug separator
Input power tray
(return) terminals on
RTN
169
