Reinstalling the Front Fan Trays

148
To reinstall front fan trays (see Figure 65 on page 148):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to one of the ESD points on the chassis.
Grasp the fan tray by its handles and insert it straight into the chassis.
2.
Tighten the captive screws on each side of the fan tray faceplate to secure it in the
3.
chassis, using a Phillips (+) screwdriver, number 2.
Repeat the procedure to reinstall the remaining fan tray.
4.

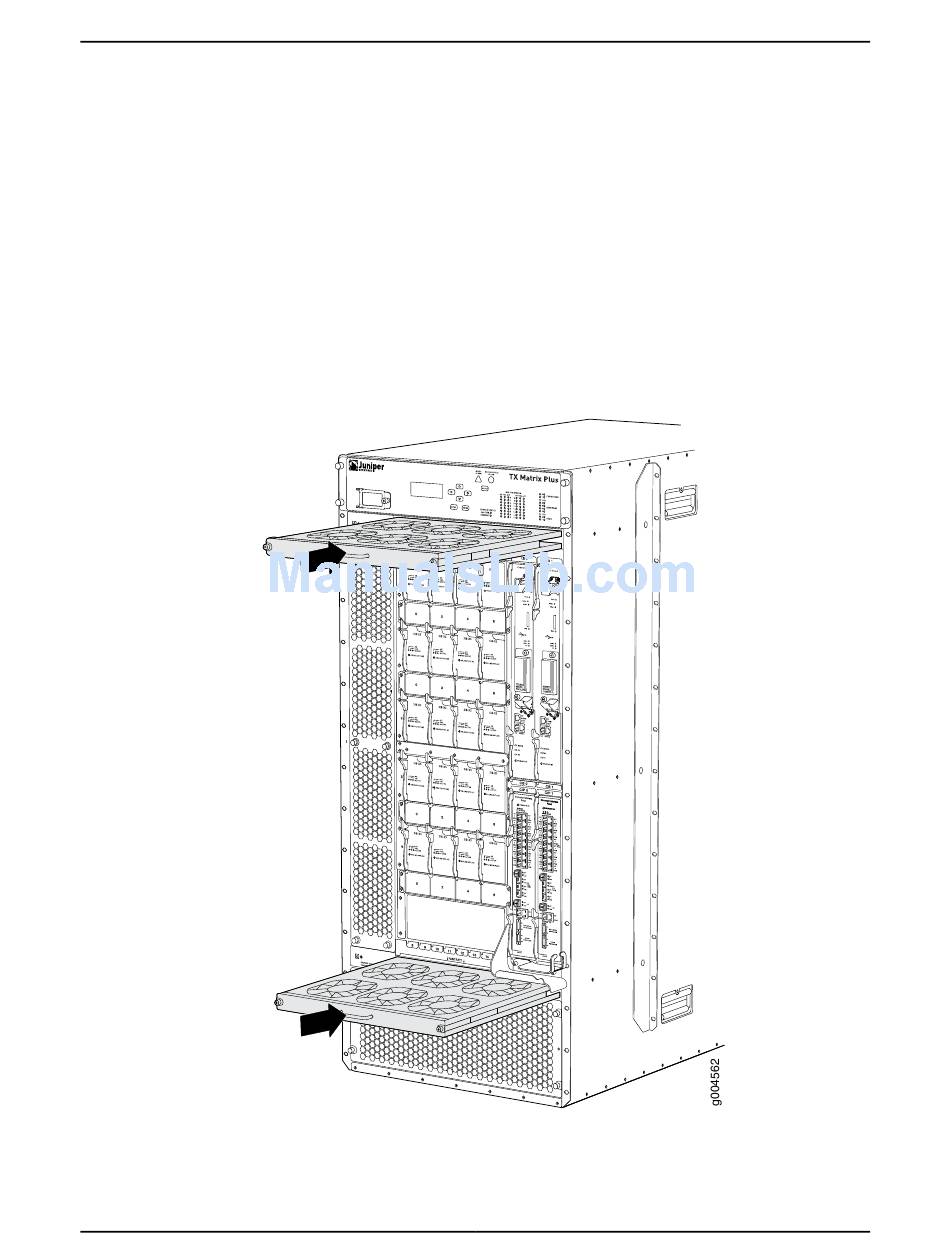

Figure 65: Reinstalling a Front Fan Tray
