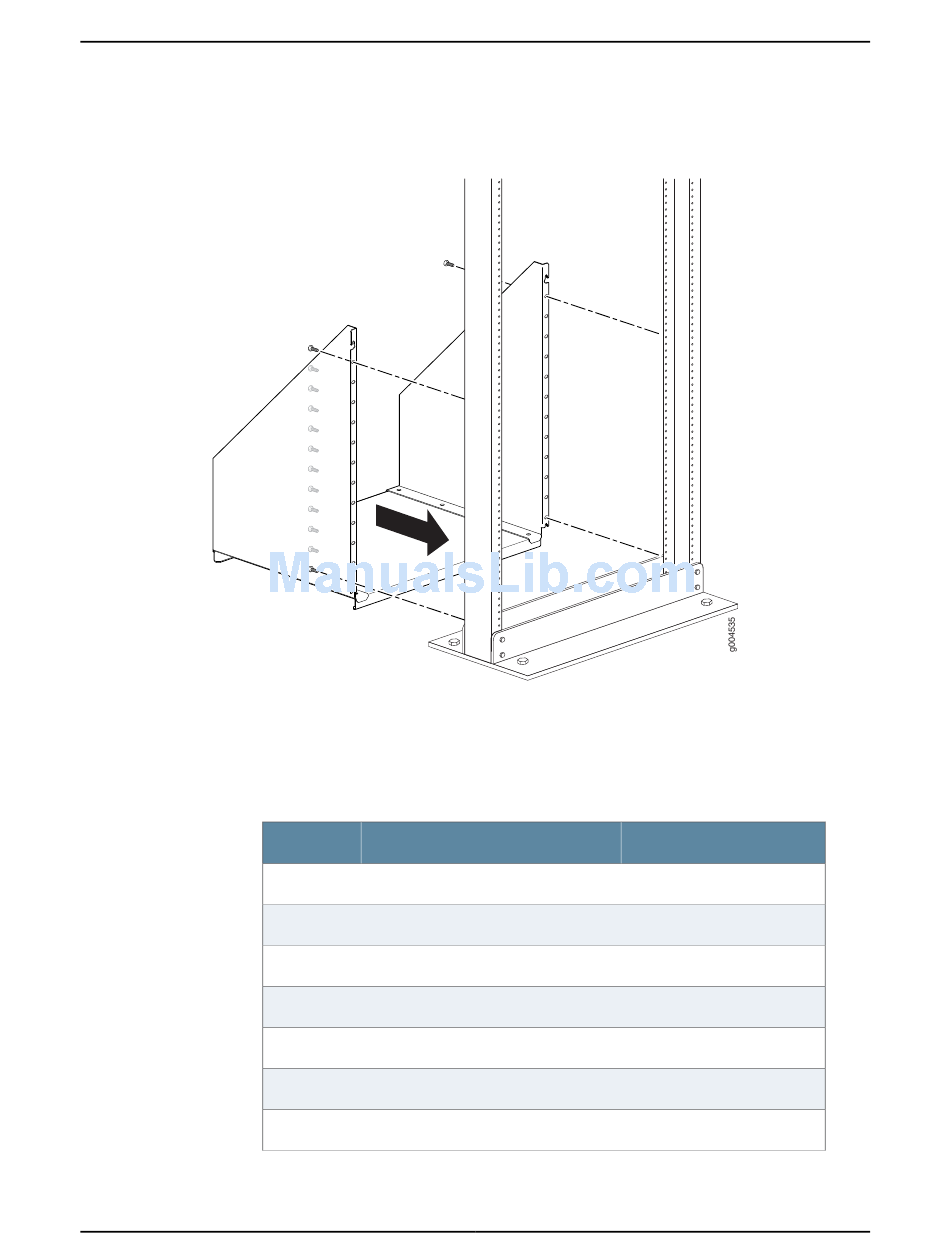

Figure 49: Installing the TX Matrix Plus Mounting Hardware for an
Open-Frame Rack
Insert screws in the holes specified in Table 35 on page 125 (an
hole location). The hole distances are relative to the standard U division on the rack that
is aligned with the bottom of the mounting shelf.
Table 35: Mounting Hole Locations for Installing a TX Matrix Plus
Open-Frame Rack Shelf
Hole Distance Above U Division
42 24.25 in. (61.6 cm)
39 22.5 in. (57.2 cm)
36 20.75 in. (52.7 cm)
33 19.0 in. (48.3 cm)
30 17.25 in. (43.8 cm)
27 15.5 in. (39.4 cm)
24 13.75 in. (34.9 cm)
Chapter 10: Installing the TX Matrix Plus Mounting Hardware
X
Open-Frame MountingShelf
13.86 U X
12.86 U X
11.86 U X
10.86 U
X
9.86 U
X
8.86 U
X
7.86 U
X
indicates a mounting
125
