LCD Modes
Copyright © 2010, Juniper Networks, Inc.
LCD Display Idle Mode on page 31
LCD Display Alarm Mode on page 31
LCD Display Idle Mode
During normal operation, the LCD display operates in idle mode and reports current status
information, as shown in Figure 15 on page 31.

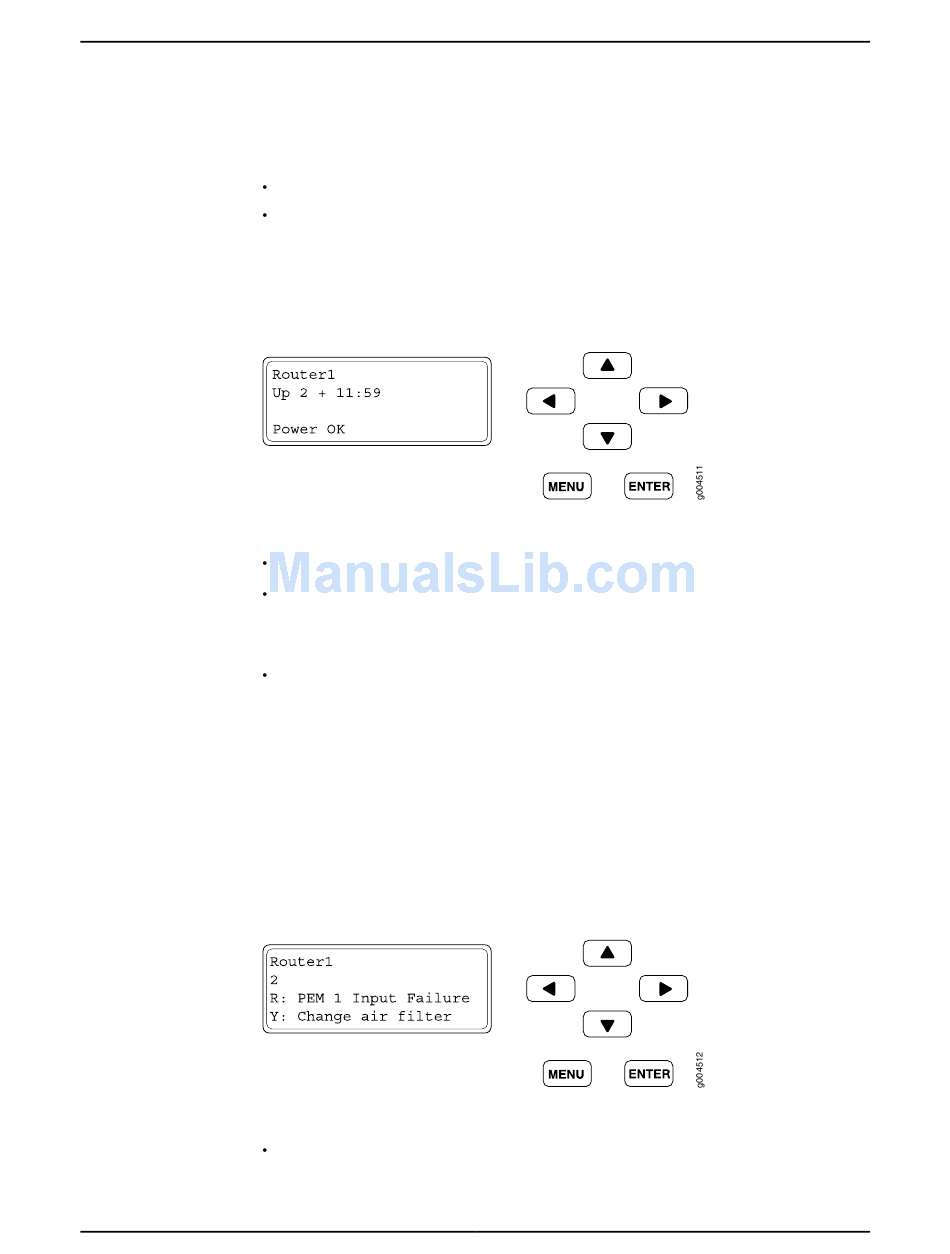

Figure 15: LCD Display in Idle Mode
The lines in the display report the following information:
First line—TX Matrix Plus router name.
Second line—Length of time the TX Matrix Plus router has been running, reported in
the following form:
Up days + hours:minutes
Third and fourth lines—Status messages, which rotate at 2-second intervals. Some
conditions, such as removal or insertion of a system component, can interrupt the
messages.
To add a message that alternates every 2 seconds with the default status messages,
use the
set chassis display message
System Basics Configuration Guide.
LCD Display Alarm Mode
When a red or yellow alarm occurs, the LCD display switches to alarm mode and reports
about the alarm condition, as shown in Figure 16 on page 31.
Figure 16: LCD Display in Alarm Mode
The lines in the display report the following information:
First line—TX Matrix Plus router name.
Chapter 2: TX Matrix Plus Hardware Component Overview
command. For more information, see the Junos OS
31
