TX Matrix Plus Router Hardware Guide
Connecting the Fiber-Optic Array Cables to the TXP-T1600 SIBs
234

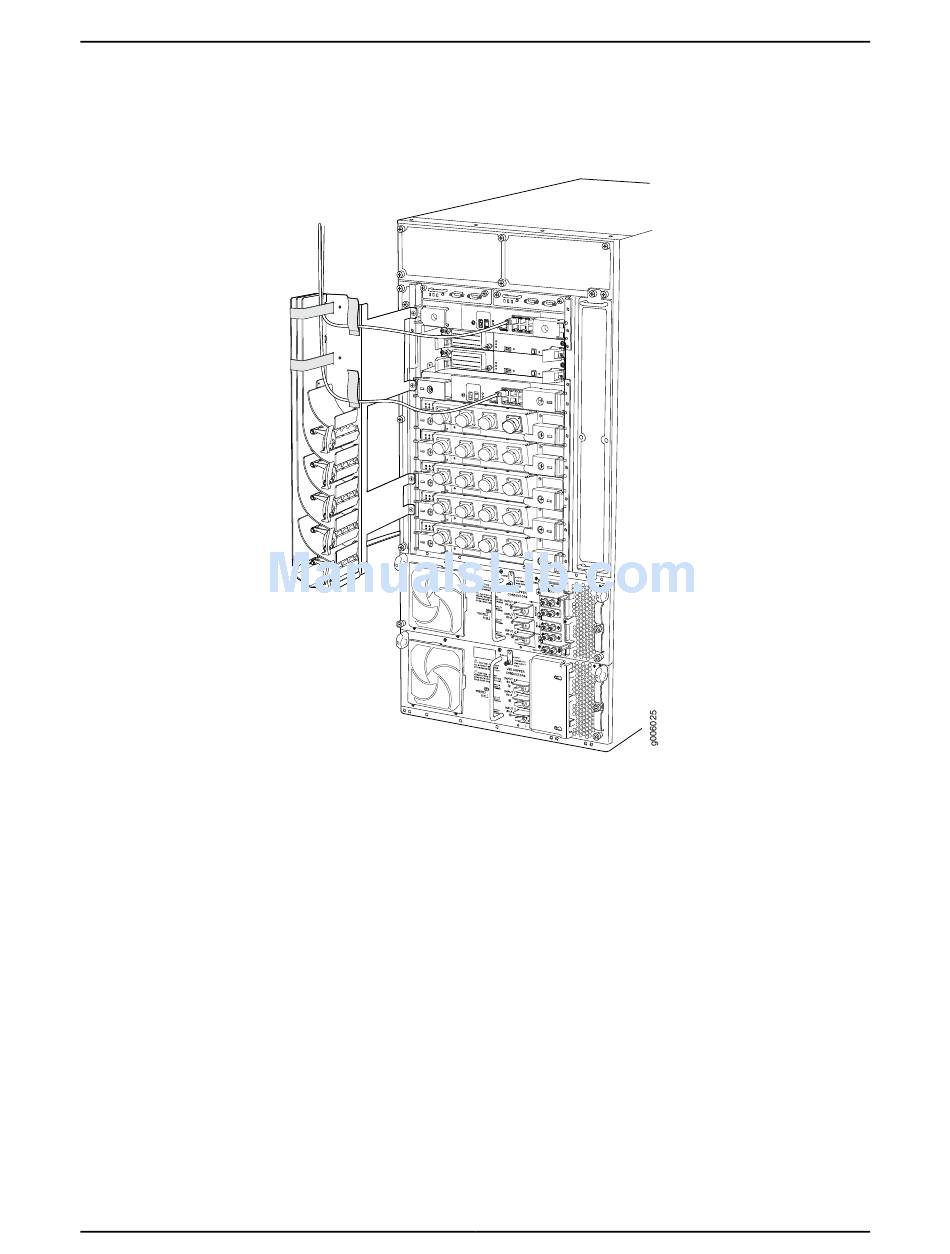

Figure 94: Routing the Control Plane Cables in to the T1600 Rear Cable
Management System
This procedure assumes that the fiber-optic array cables are already connected to the
TXP-F13 SIBs. To connect the fiber-optic array cables to the TXP-T1600 SIBs in the
T1600 router (four for each TXP-T1600 SIB):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to one of the ESD points on the chassis.
Use the labels on the ends of the fiber-optic array cables and Table 42 on page 236,
2.
Table 43 on page 238, and Table 44 on page 239, to identify the cable that plugs into
the fiber-optic array ports labeled
Remove the dust cover from the fiber-optic array ports on the TXP-T1600 SIB. Store
3.
the dust cover in a dust-free resealable plastic bag.
Remove the dust covers from the four fiber-optic array cable connectors that connect
4.
to one TXP-T1600 SIB. Store the dust covers in a dust-free resealable plastic bag.
Clean the four fiber-optic array cable connectors.
5.
,
,
, and
.
A
B
C
D
Copyright © 2010, Juniper Networks, Inc.
