TX Matrix Plus Router Hardware Guide
Related
Documentation
Routing Matrix with a TX Matrix Plus Router System Control Plane Architecture
56

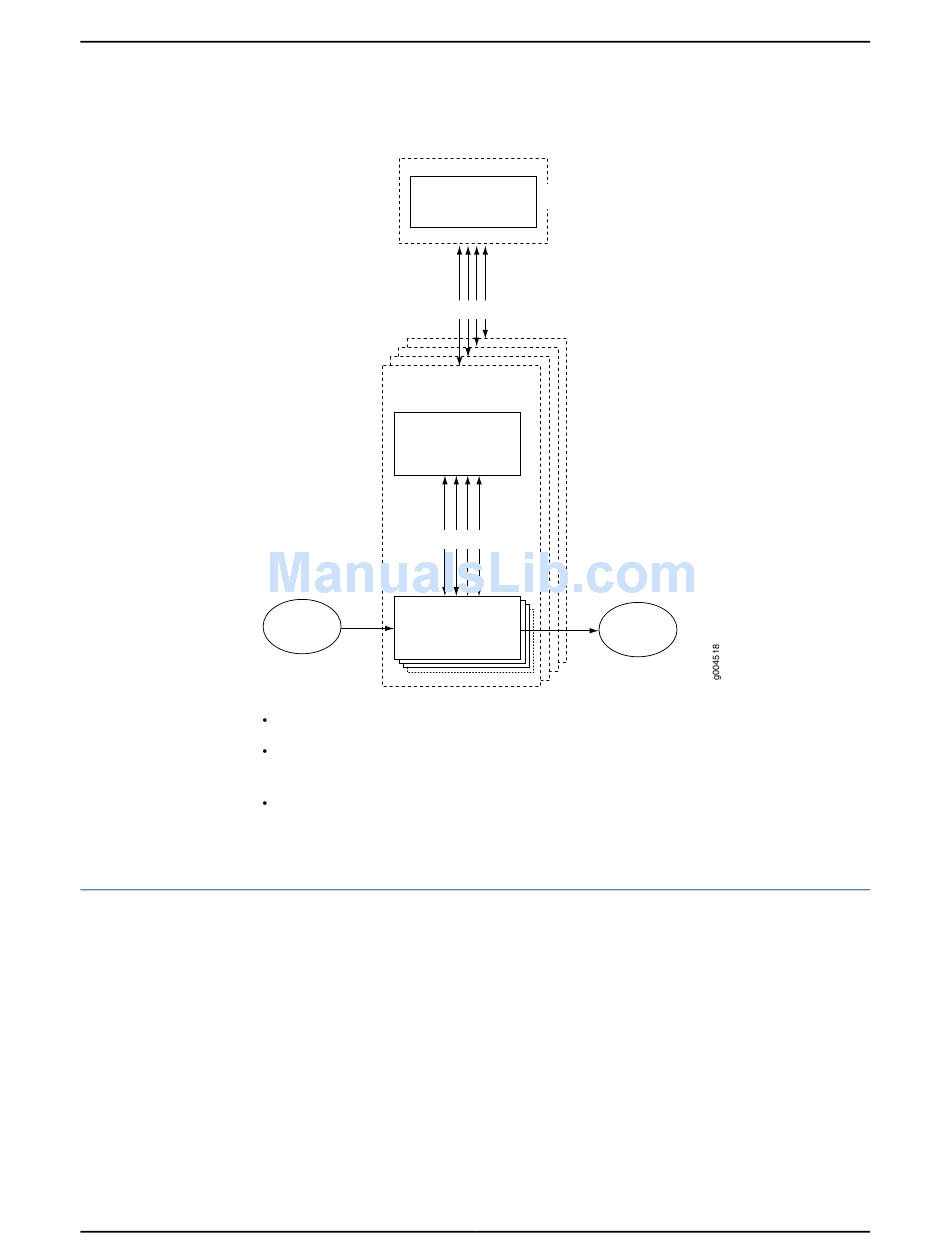

Figure 30: Routing Matrix Architecture

Plus Routing Engine
1-Gbps links
Routers
Routing Engine
100-Mbps links
Packets
Packet Forwarding
in
Engines
TX Matrix Plus Router Description on page 3
Routing Matrix with a TX Matrix Plus Router System Control Plane Architecture on
page 56
Routing Matrix with a TX Matrix Plus Router Switch Fabric and Switching Plane
Architecture on page 60
The routing matrix contains two control planes. All master Routing Engines in the TX
Matrix Plus router and T1600 routers are on one control plane; all backup Routing Engines
are on another control plane (see Figure 31 on page 57). To manage the Routing Engines
on a control plane, you must be logged into the Routing Engine in the TX Matrix Plus
router on that control plane. For example, you must be logged into the backup Routing
Engine in the TX Matrix Plus router to upgrade the software of all backup Routing Engines
in the routing matrix.
TX Matrix
TX Matrix Plus Router
T1600
Packets
out
