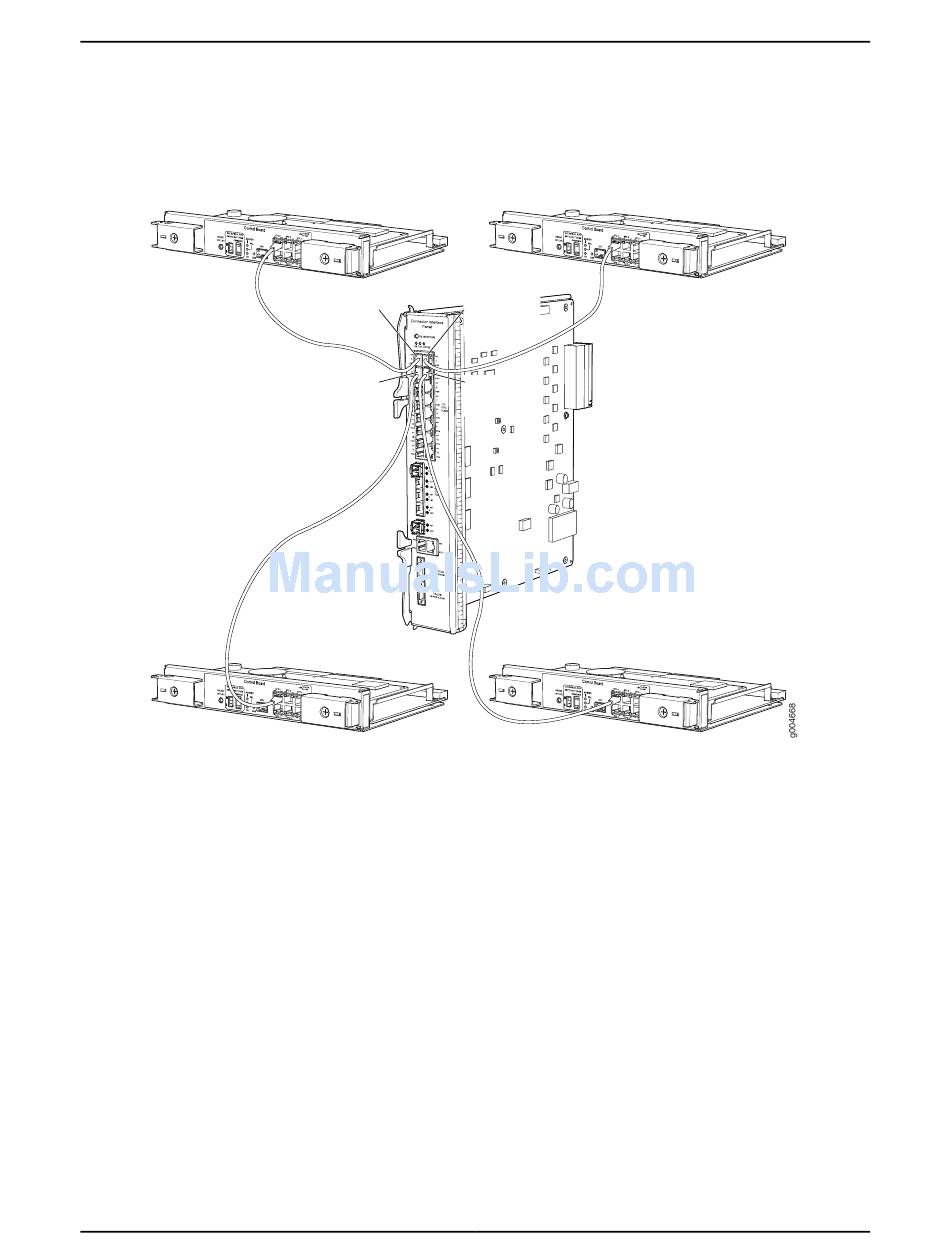

Figure 33: TX Matrix Plus Control Plane Connections

LCC Control
Plane Port 0
LCC Control
Plane Port 2
NC
C
NO
NC
C
NO
SPE ED:
YEL =10/
100
GRN =100
0
UTP Category 5 Ethernet cables provide the control plane connections between the
RJ-45 LCC CTRL PLANE ports
and the port on the LCC-CBs in the T1600 routers. The maximum length supported
SFC 0
is 100 m. The UTP Category 5 cables do not have to be the same length. The cable wiring
is straight-through (not crossover).
Table 20 on page 60 shows these connections.
The cable connections provided in Table 20 on page 60 apply to routing matrix
configurations using from one through four T1600 routers.
T-1600 LCC1
SFC 0 Port
LCC Control
Plane Port 1
LCC Control
Plane Port 3
T-1600 LCC3
SFC 0 Port
0 through 3 on the TXP-CIPs in the TX Matrix Plus router
