TX Matrix Plus Router Hardware Guide
170

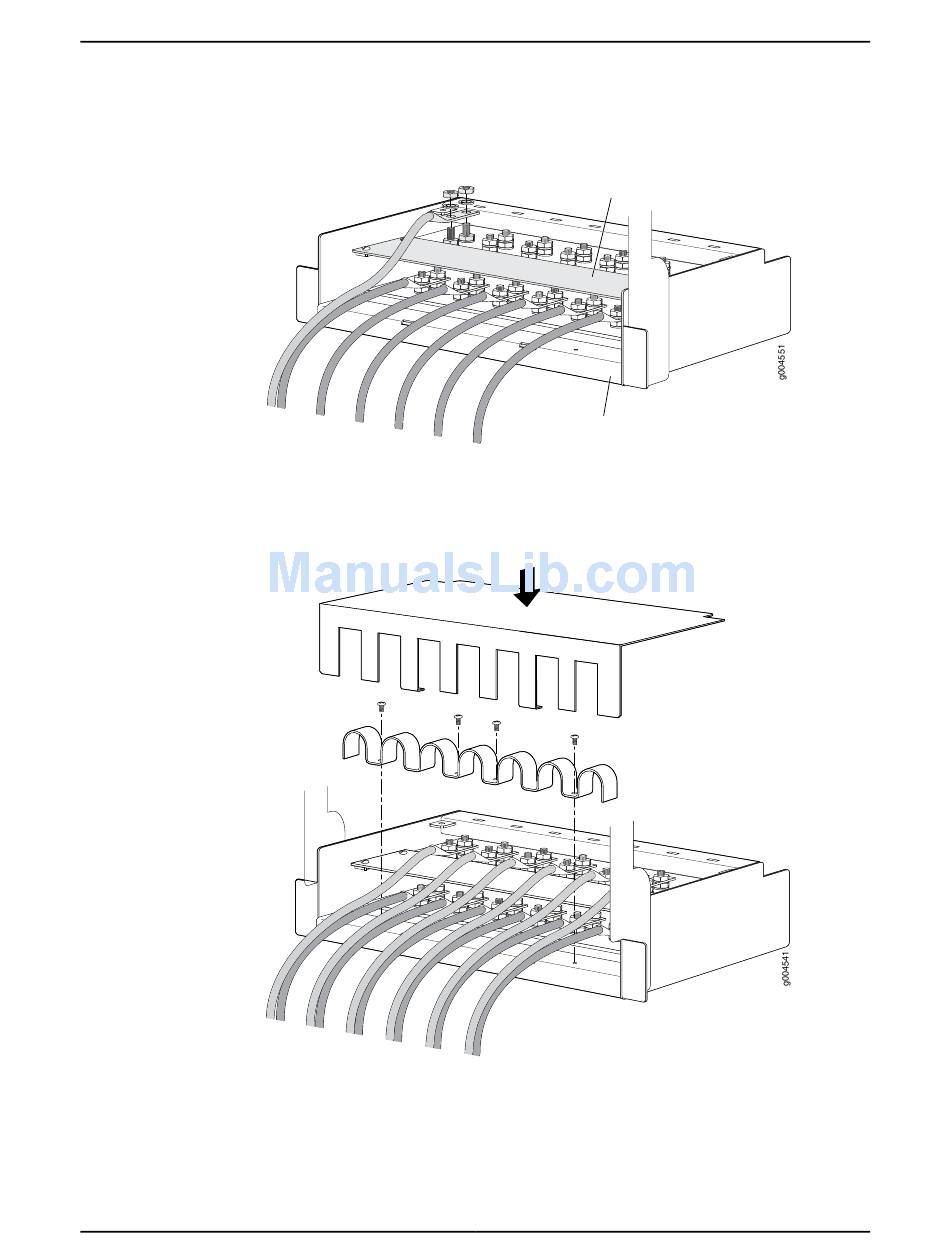

Figure 77: Connecting the Positive (+) DC source Power Cable Lugs to an
Input Power Tray in a TX Matrix Plus Router
Place the cable restraint over the DC power cables. Attach the cable restraint to the
16.
input power tray (see Figure 78 on page 170).
Figure 78: Attaching the Cable Restraint and Input Power Tray Cover in
a TX Matrix Plus Router
Verify that the power cabling is correct.
17.
Attach the cover to the input power tray(see Figure 78 on page 170).
18.
Insert the input power tray into the power supply.
19.
Power lug separator
Input power tray
Copyright © 2010, Juniper Networks, Inc.
