Figure 26: Tx Matrix Plus Rear Cable Management System - Juniper TX MATRIX PLUS Hardware Manual

TX Matrix Plus Router Hardware Guide
50

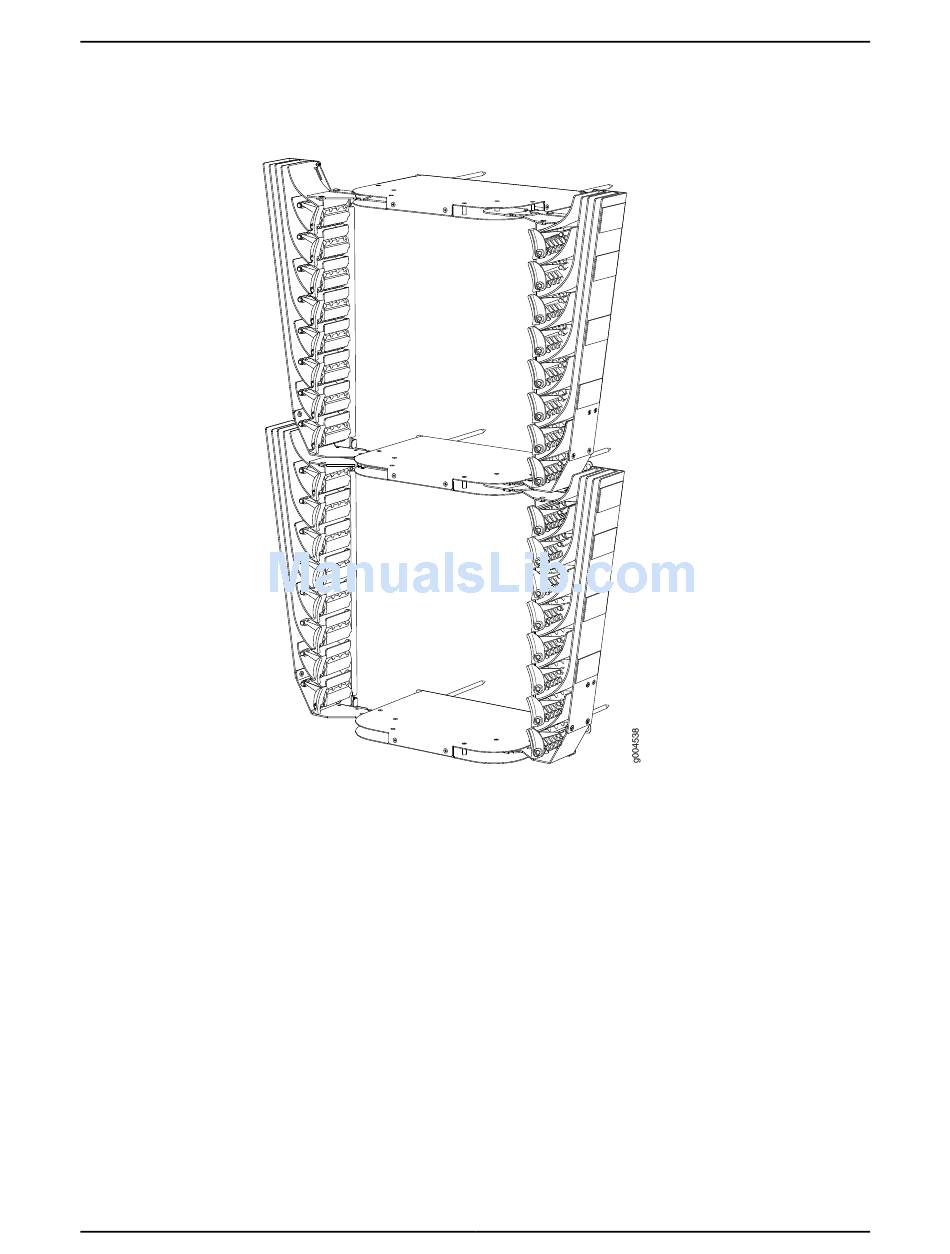

Figure 26: TX Matrix Plus Rear Cable Management System

Each cable management arm has eight cable clamps (Figure 27 on page 51). Each cable
clamp contains four cable dividers labeled
28 on page 52).
, , , , one divider for each cable (Figure
A B C D
