Installing A Tx Matrix Plus Front Left Air Filter; Figure 118: Removing A Front Left Air Filter - Juniper TX MATRIX PLUS Hardware Manual

Air filter
Copyright © 2010, Juniper Networks, Inc.

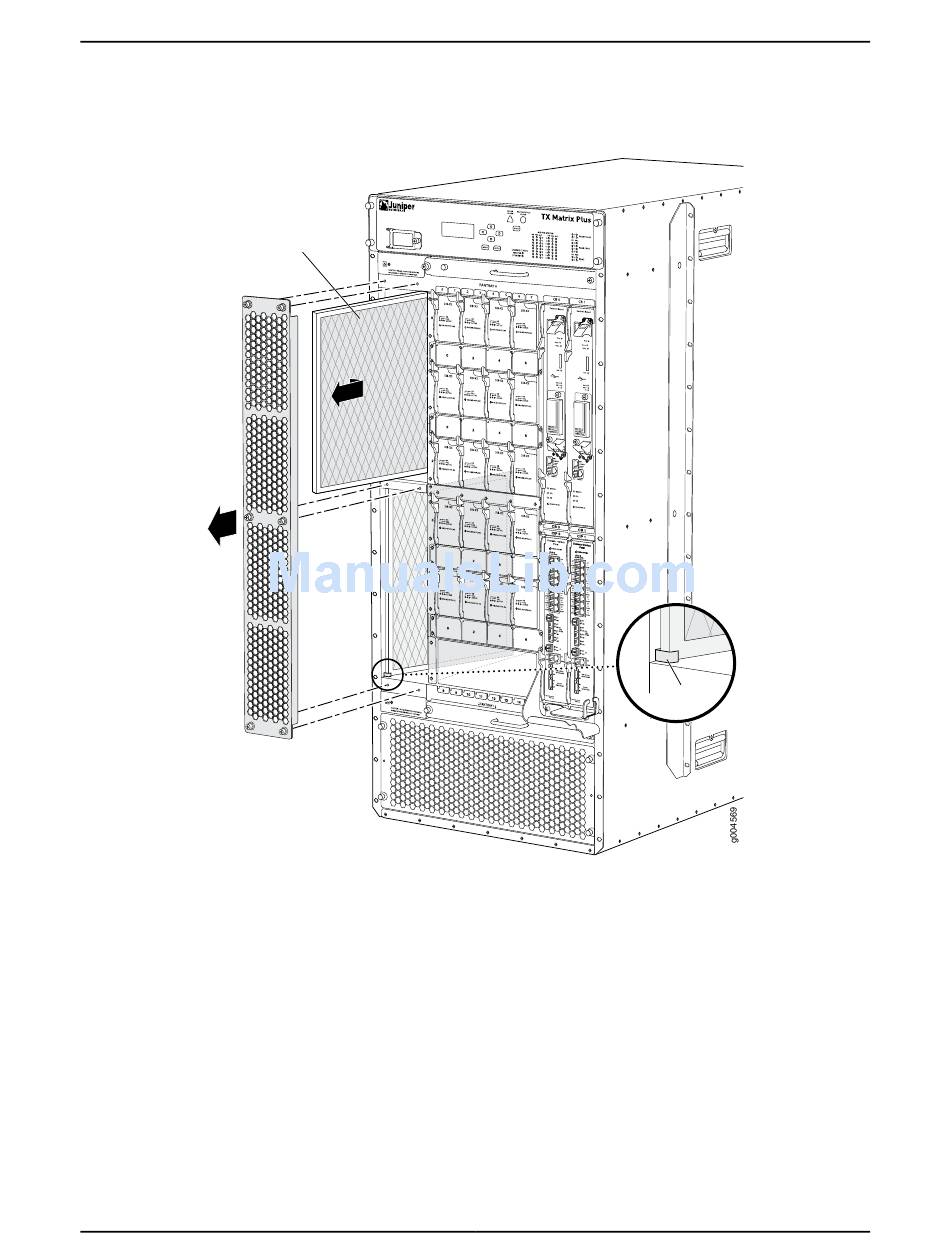

Figure 118: Removing a Front Left Air Filter

Installing a TX Matrix Plus Front Left Air Filter

To install a front left air filter (see Figure 119 on page 352):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to one of the ESD points on the chassis.
Carefully push the filter all the way into the air filter slot.
2.
Holding the filter all the way in, push it to the left side of the slot until it is held into
3.
place behind the hooks.
Replace the air filter cover.
4.
Firmly tighten the captive screws at the top, center, and bottom of the filter cover to
5.
secure it to the chassis, using a Phillips (+) screwdriver, number 2.
Chapter 22: Replacing TX Matrix Plus Hardware Components
Filter hook
