Removing the TXP-F13 SIBs

132

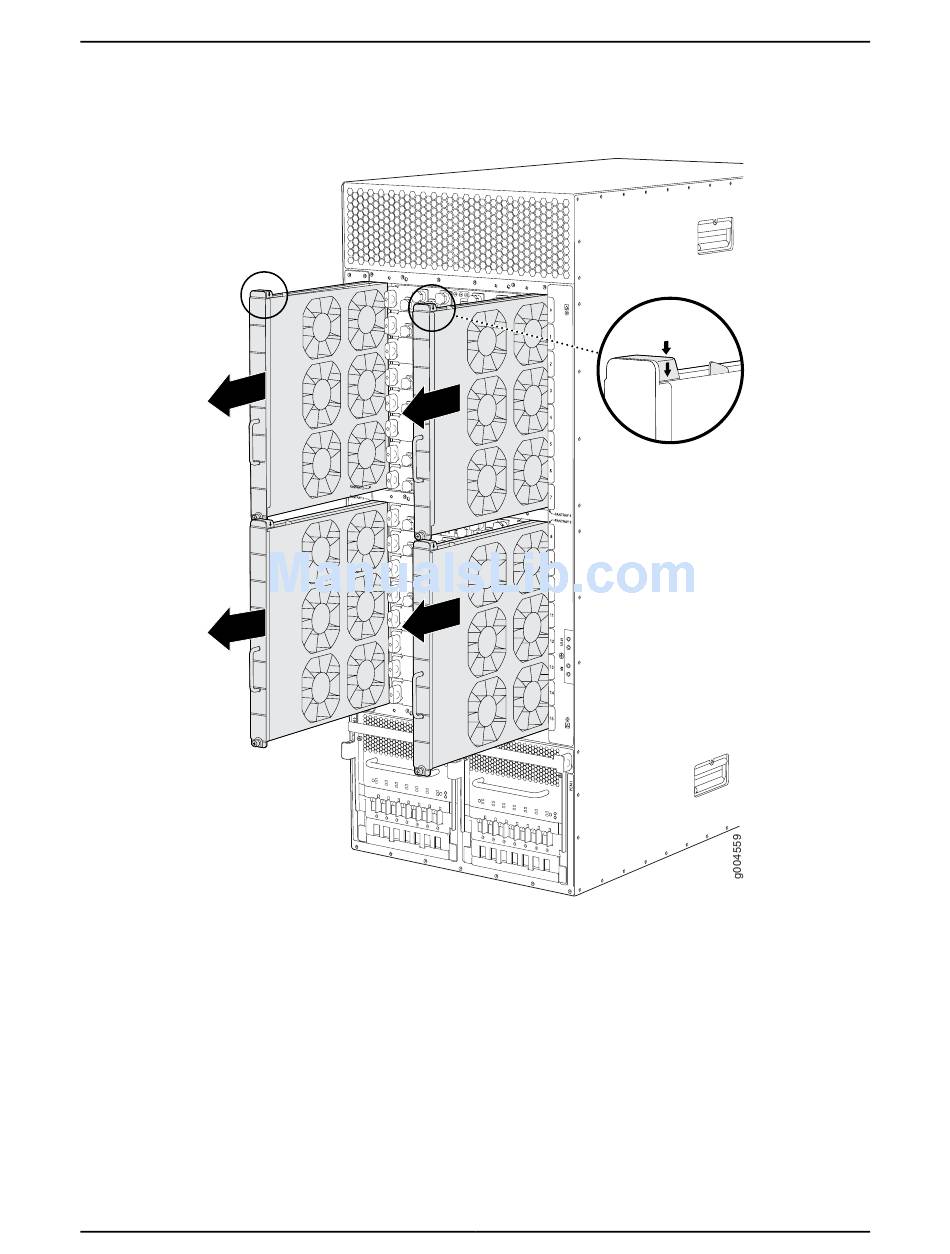

Figure 53: Removing the TX Matrix Plus Rear Fan Trays

Up to ten TXP-F13 SIBs can be installed in the rear of the chassis in slots
. Each TXP-F13 SIBs weighs approximately 17.0 lb (7.7 kg).
SIB15
To remove the TXP-F13 SIBs (see Figure 54 on page 133):
Place an electrostatic bag or antistatic mat on a flat, stable surface.
1.
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
2.
the strap to one of the ESD points on the chassis.
Simultaneously turn both ejector handles on the left and right of the faceplate
3.
counterclockwise to unseat the TXP-F13 SIB.
Press here.
Press the release
latch on the top of
each rear fan tray
to remove
them.
SIB0
Copyright © 2010, Juniper Networks, Inc.
through
