Cleaning Fiber-Optic Array Components with the Dry Cloth Cleaning Tool
Copyright © 2010, Juniper Networks, Inc.
TXP-F13 SIB LEDs on the TX Matrix Plus Craft Interface on page 34
Troubleshooting the TX Matrix Plus SIBs on page 294
Troubleshooting the Switching Planes in the Routing Matrix on page 305
As part of your routine maintenance, we recommend that you clean all exposed fiber-optic
components each time you disconnect and reconnect a fiber-optic cable, or if the optical
link is not functioning correctly.
NOTE: During maintenance or replacement procedures, small deposits of
oil, dust, and debris can enter the fiber-optic array ports, the fiber-optic array
cable connectors, and the loopback connectors and adapters used to test
the optical connections. These deposits can cause loss of light, reducing
signal power and causing intermittent problems with the optical connection.
The following tools for cleaning the fiber-optic components are provided in the TX Matrix
Plus tool kit:
Dry cleaning tool (see Figure 97 on page 271). This tool uses a dry cloth to remove dust
and oil from the fiber optics.
Cleaning tool adapter
Cleaning tool connector

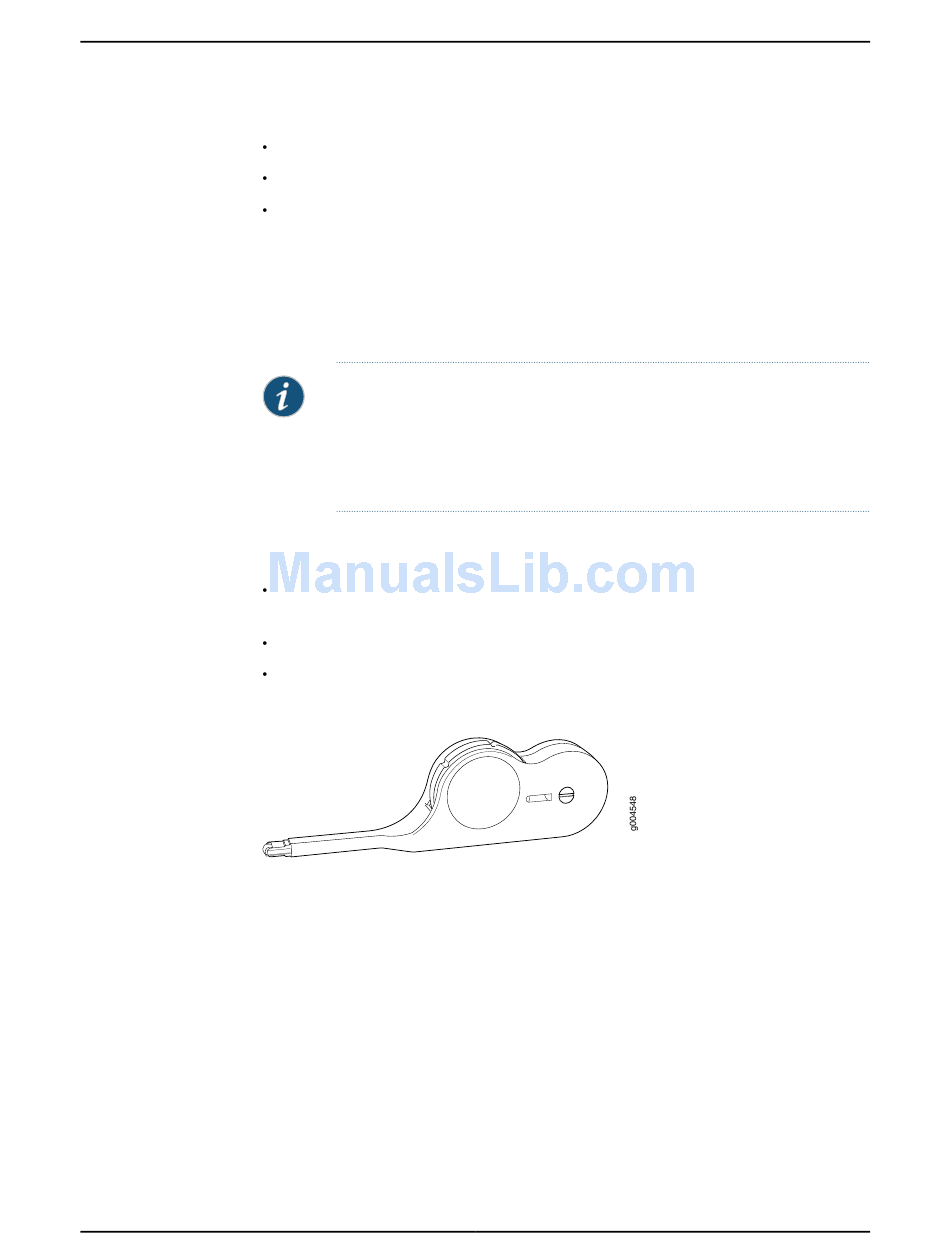

Figure 97: Cleaning Tool

Cleaning tool
To clean the fiber-optic components using the dry cloth cleaning tool:
Take the switching plane offline.
1.
See "Taking a Switching Data Plane Offline" on page 364.
Bring the TXP-F13 SIB offline by pressing the
2.
Bring the TXP-T1600 SIBs connected to the TXP-F13 SIB offline by pressing the
3.
button.
ONLINE/OFFLINE
Disconnect the fiber-optic array cable between the TXP-F13 SIB and TXP-T1600 SIB.
4.
Chapter 20: Maintaining TX Matrix Plus Hardware Components
SFC ONLINE/OFFLINE
button.
LCC
271
