TX Matrix Plus TXP-F2S SIB LEDs

Related
Documentation
Copyright © 2010, Juniper Networks, Inc.
Troubleshooting the Switching Planes in the Routing Matrix on page 305
The status LEDs (Figure 8 on page 19) are located above the
Table 7 on page 19 describes the functions of these LEDs.

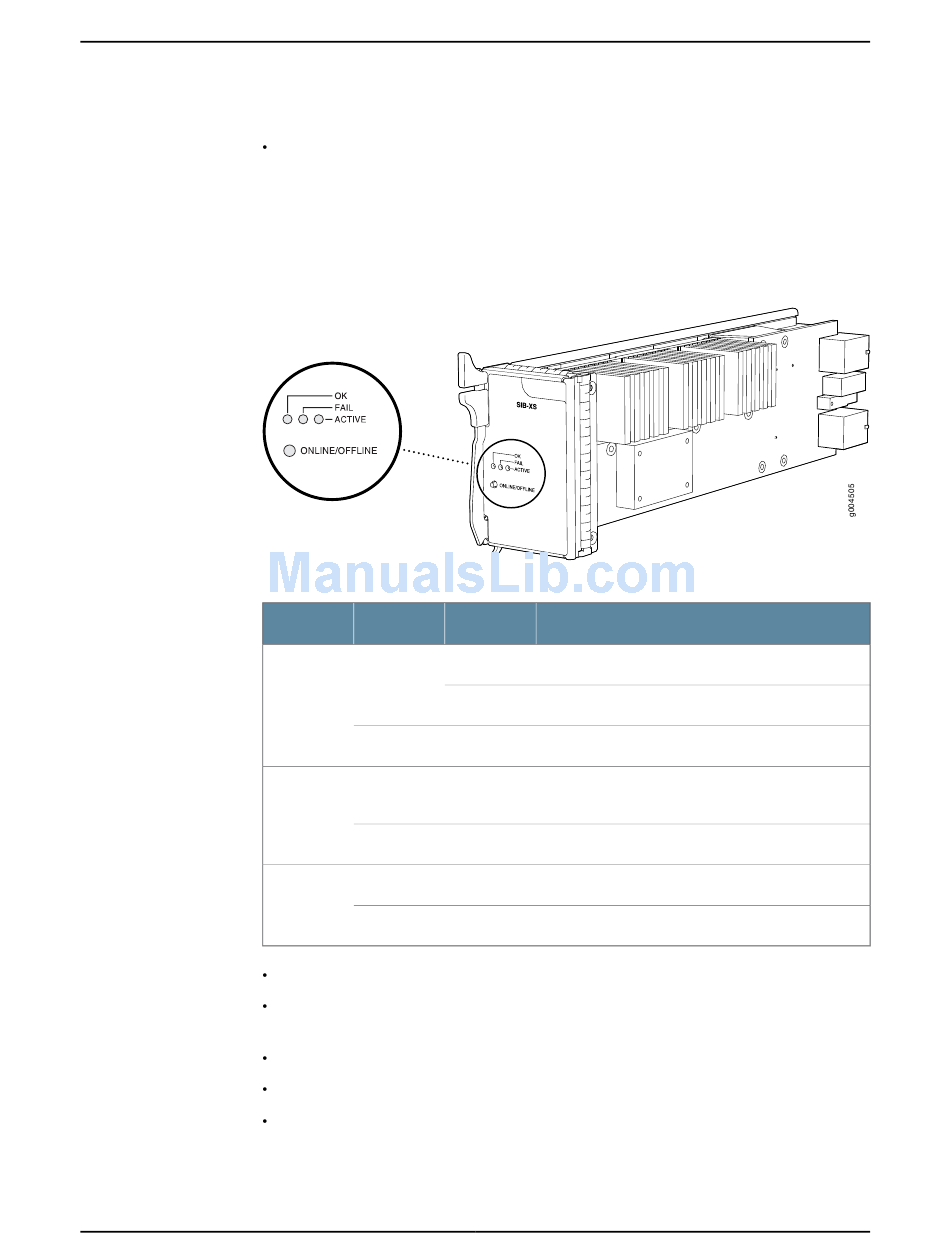

Figure 8: TXP-F2S SIB Faceplate

Table 7: F13 SIB LEDs

Label Color
Green
OK
–
Green
ACTIVE
–
FAIL Yellow
–
TX Matrix Plus TXP-F2S SIB Overview on page 17
Routing Matrix with a TX Matrix Plus Router Switch Fabric and Switching Plane
Architecture on page 60
Maintaining the TX Matrix Plus SIBs on page 269
Troubleshooting the TX Matrix Plus SIBs on page 294
Troubleshooting the Switching Planes in the Routing Matrix on page 305
Chapter 2: TX Matrix Plus Hardware Component Overview
State Description
On steadily TXP-F2S SIB is functioning normally.
Blinking TXP-F2S SIB is starting up.
Off TXP-F2S SIB is offline or not seated properly.
On steadily TXP-F2S SIB is in active mode and actively passing
traffic.
Off TXP-F2S SIB is offline or not actively passing traffic.
On steadily TXP-F2S SIB has failed.
Off No faults have been detected for the TXP-F2S SIB.
button.
ONLINE/OFFLINE
19
