TX Matrix Plus TXP-F2S SIB Overview

Routing Matrix with a TX Matrix Plus Router Switch Fabric and Switching Plane

Architecture on page 60

Maintaining the TX Matrix Plus SIBs on page 269

Troubleshooting the TX Matrix Plus SIBs on page 294

Troubleshooting the Switching Planes in the Routing Matrix on page 305

TXP-F2S SIB Components on page 17

TXP-F2S SIB Slots on page 17

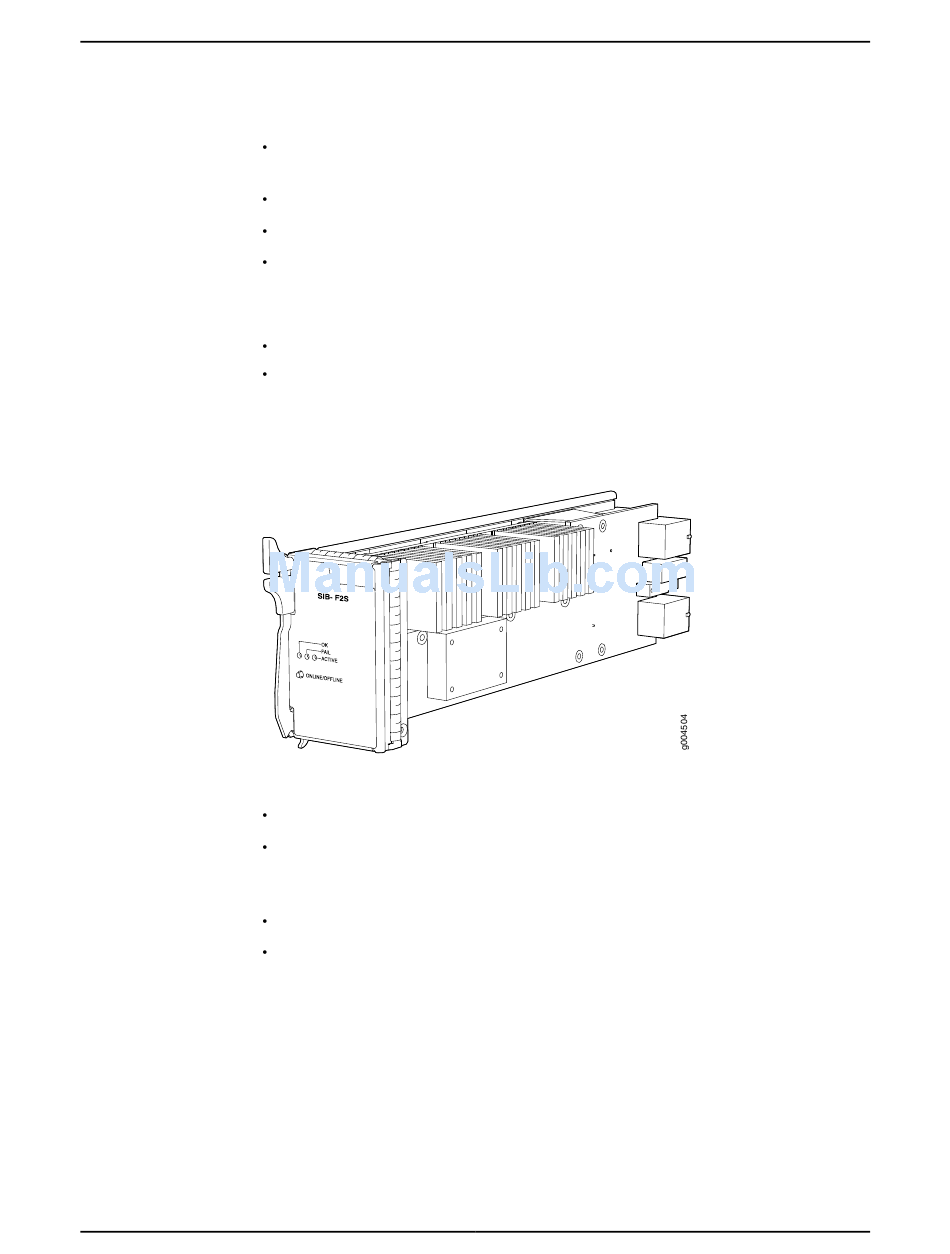

TXP-F2S SIBs are hot-removable and hot-insertable (see Figure 7 on page 17).

Each TXP-F2S SIB consists of the following components:

Switch Fabric ASICs.

High-speed links through the midplane to the TXP-FI3 SIBs.

These components are located on the TXP-F2S faceplate:

Three status LEDs—

ONLINE/OFFLINE

button located below the status LEDs.

Twenty vertical TXP-F2S SIB slots are located in the front of the TX Matrix Plus router.

A TXP-4 configuration contains four TXP-F2 SIBs for each data switching plane (see

Table 6 on page 18).

Chapter 2: TX Matrix Plus Hardware Component Overview
