TX Matrix Plus Front Cable Manager

Related
Documentation
Copyright © 2010, Juniper Networks, Inc.
The front cable manager organizes, supports, and provides strain relief for the cables
that connect to the components in front of the TX Matrix Plus router. The front cable
manager adds 2.7 in. (6.9 cm) to the depth of the chassis. The cables are routed to the
sides of the TX Matrix Plus router.
The cable management system consists of a tray to manage the cables.

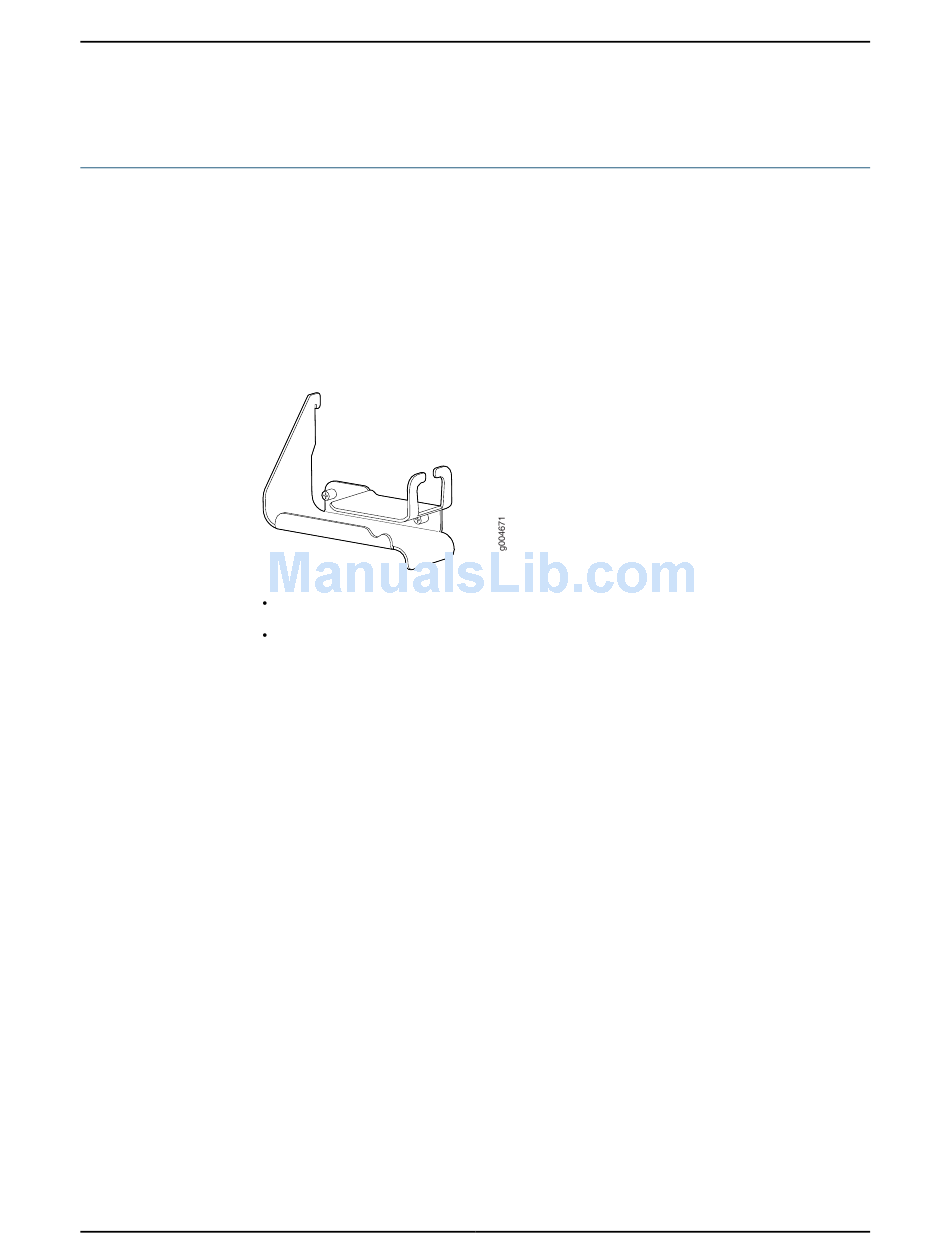

Figure 29 on page 53 shows the TX Matrix Plus front cable management system.

Figure 29: TX Matrix Plus Front Cable Manager

Installing the TX Matrix Plus Front Cable Manager on page 155
TX Matrix Plus Clearance Requirements for Airflow and Hardware Maintenance on
page 108
Chapter 2: TX Matrix Plus Hardware Component Overview
