Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to ARMS SETTING screen (3/4).
17
Press the [PAUSE/MENU] key.
It will return to the default screen.

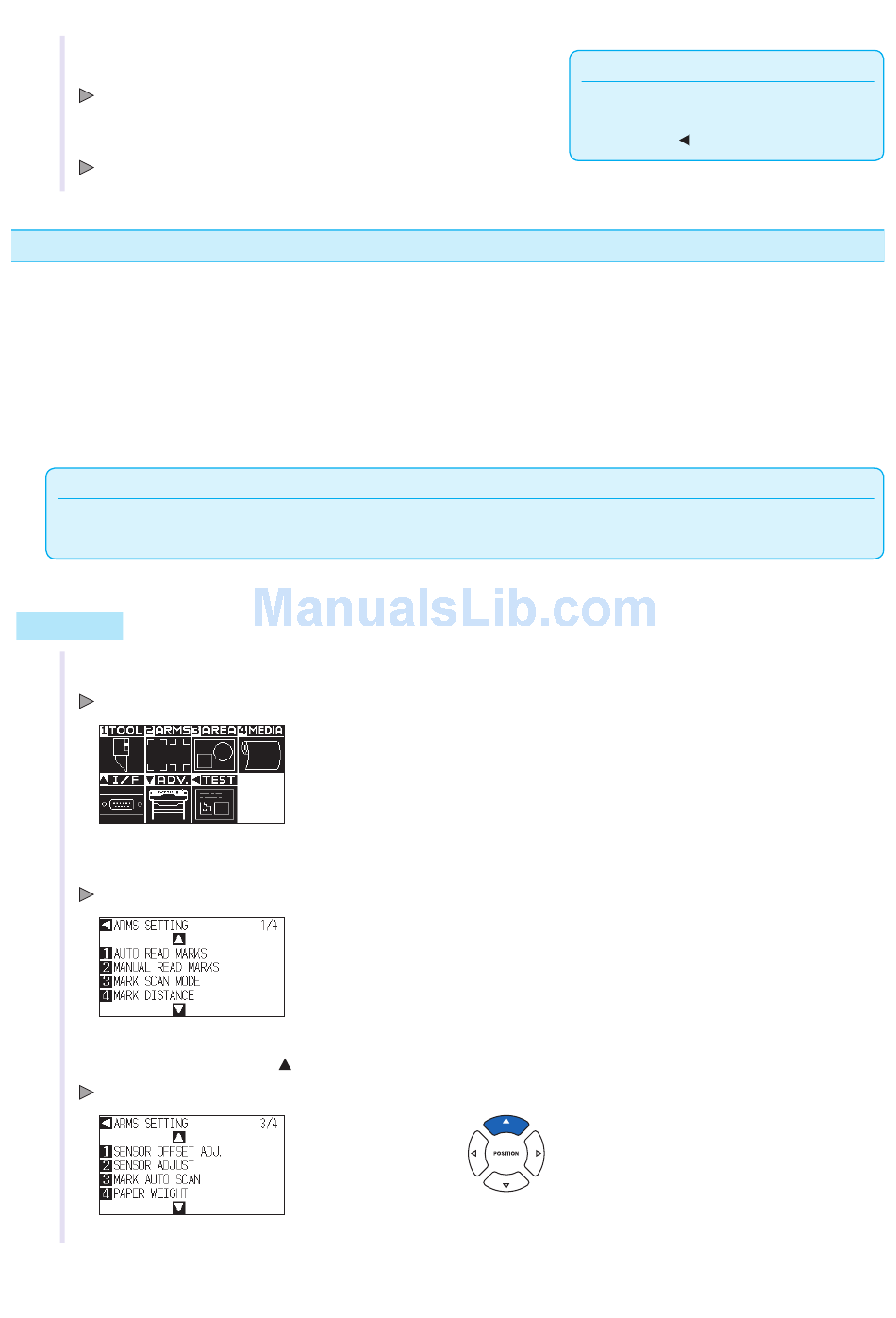

Setting the registration mark automatic detection

When setting the registration mark automatic detection to on, the following operations will be performed.
Set the registration mark mode to ARMS and during the start of the automatic reading when the current position
of the tool is close to the first point (Point 1), by pressing the "ENTER" key without moving to the detect start
position of tool, the registration mark position will be automatically retrieved.
* The "Please move the tool and press ENTER" message will be displayed. Either press the "ENTER" key at
that tool position, or move the tool to a position close to the registration mark detect start position and press
the "ENTER" key.
Supplement
If the current position of the tool is distanced from the first registration mark, detection may take a long time, and errors due to not
finding anything may occur.
When setting off, the operation above is not performed.
Operation
1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the [2] key (ARMS).
REGISTRATION MARK setting screen (1/4) is displayed.
3
Double-press POSITION ( ) key.
ARMS SETTING screen (3/4) is displayed.
Supplement
It will return to ARMS setting screen (3/4)
without changing the setting when you press
the POSITION ( ) key (CANCEL).
5-33
