GRAPHTEC CE6000 SERIES User Manual: Setting Of The Initial Down Force

Graphtec ce6000 series cutting plotter.
Hide thumbs
  • Contents

Advertisement

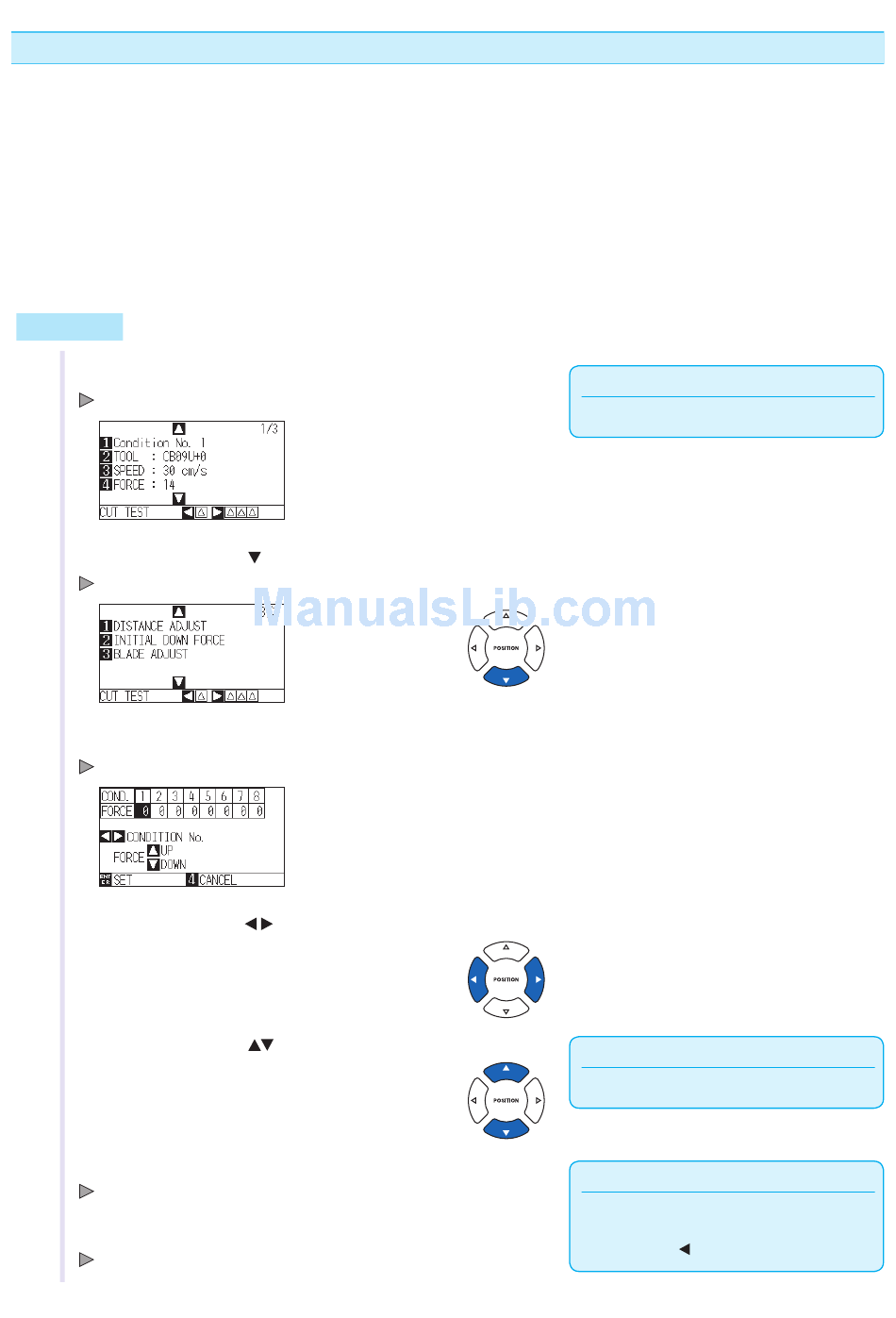

Setting of the Initial Down Force

The initial down-force setting is effective when tangential mode is selected.
Tangential control is generally used for the cutting of thick media. With thick film, additional time is required for the
cutter blade to penetrate the media fully, even when the necessary cutting force is applied.
The cutting operation starts before the cutter blade has fully penetrated the media, causing uncut sections to be left.
When the initial down force is specified, this force is used as the cutting force immediately after the lowering of
the tool when tangential emulation is selected, enabling the cutter blade to penetrate the media rapidly. (As an
example, if the cutting force is 25 and the initial down force is 4, for example, the cutting force applied immediately
after the pen is lowered will be 29)
The upper limit for added value is 31 for the CE6000-40/60 and 38 for the CE6000-120.
Operation
1
Press the [COND/TEST] key.
CONDITION setting screen (1/3) is displayed.
2
Press the POSITION ( ) key.
CONDITION setting screen (3/3) is displayed.
3
Press the [2] key (INITIAL DOWN FORCE).
INITIAL DOWN FORCE setting screen is displayed.
4
Press the POSITION (
No.
5
Press the POSITION (
setting value.
6
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to CONDITION setting screen (3/3).
7
Press the [COND/TEST] key.
It will return to default screen.
) key and select the CONDITION
) key and increase or decrease the
7-6
Supplement
Perform the settings in Normal mode.
Supplement
Setting range is from 0 to 20.
Supplement
It will return to CONDITION screen (3/3)
without changing the settings when you press
the POSITION ( ) key (CANCEL).
