GRAPHTEC CE6000 SERIES User Manual Page 175

Graphtec ce6000 series cutting plotter.
Hide thumbs

Advertisement

6

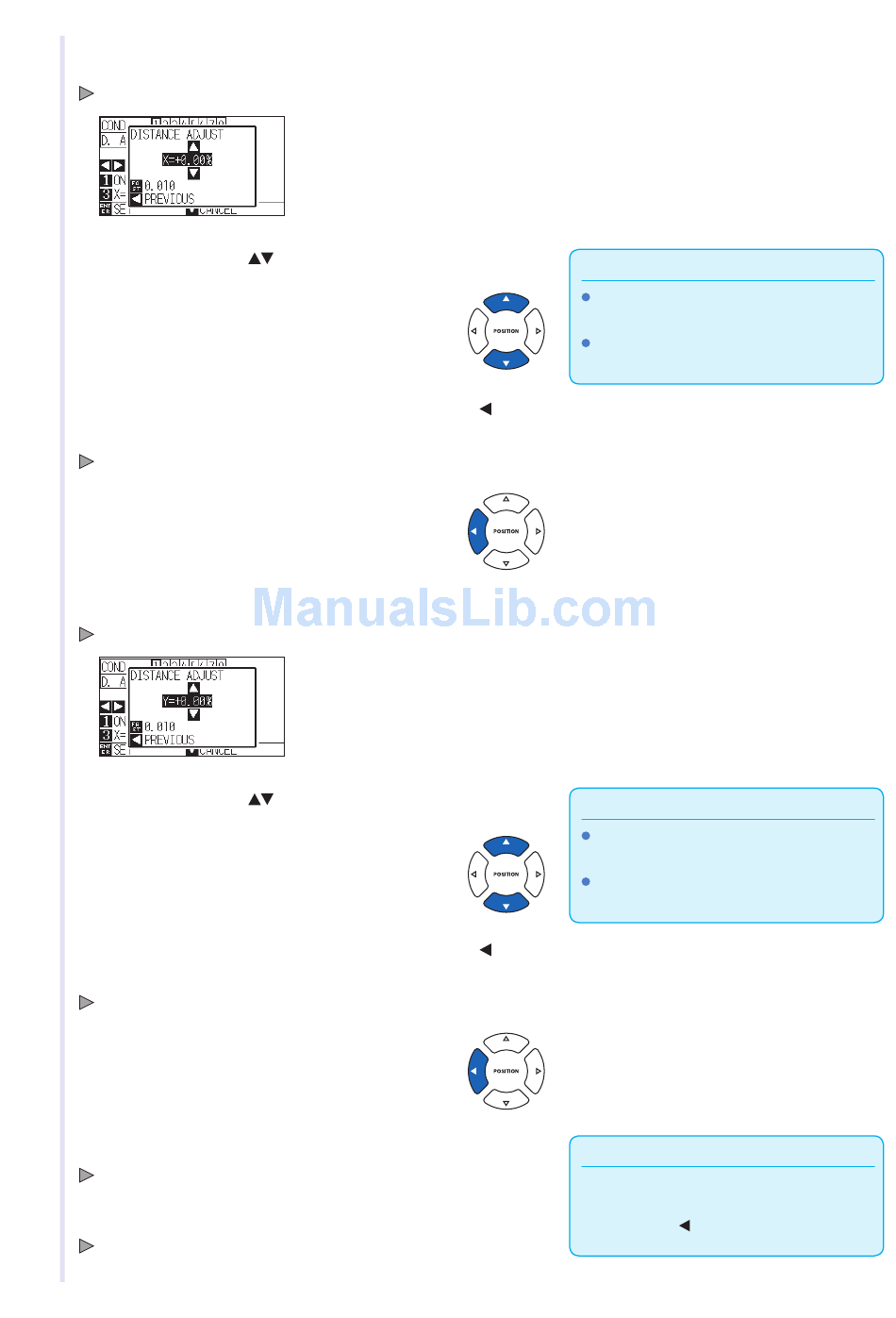

Press the [3] key (X).
X DISTANCE ADJUST setting screen is displayed.
7
Press the POSITION (
setting value.
8
Confirm the setting value, and press the POSITION ( ) key
(PREVIOUS).
X DISTANCE ADJUST will be set, and it will return to DISTANCE
ADJUST screen.
9
Press the [4] key (Y).
Y DISTANCE ADJUST setting screen is displayed.
10
Press the POSITION (
Y DISTANCE ADJUST value.
11
Confirm the setting value, and press the POSITION ( ) key
(PREVIOUS).
Y DISTANCE ADJUST will be set, and it will return to DISTANCE
ADJUST setting screen.
12
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to CONDITION screen (3/3).
13
Press the [PAUSE/MENU] key.
It will return to default screen.
) key and increase or decrease the
) key and increase or decrease the
7-10
Supplement
Setting range for adjustment value is -2.00%
to +2.00%.
Press the [FAST] key to change the setting
digits.
Supplement
Setting range for adjustment value is -2.00%
to +2.00%.
Press the [FAST] key to change the setting
digits.
Supplement
It will return to CONDITION screen (3/3)
without changing the settings when you press
the POSITION ( ) key (CANCEL).
