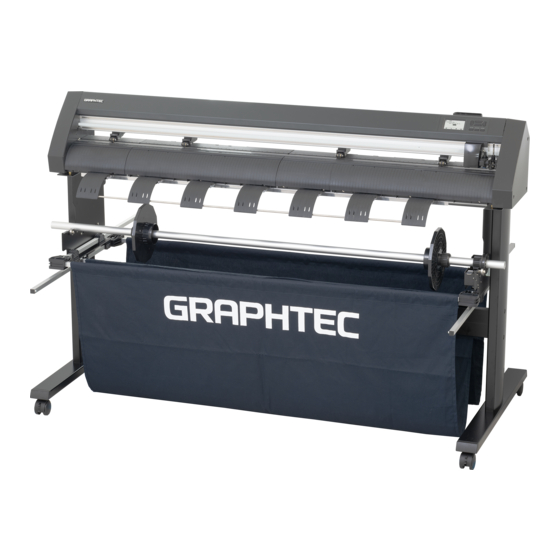

Page 1 CE8000-130AP CUTTING PLOTTER USER’S MANUAL MANUAL NO.CE80AP-UM-151...
Page 2: Notes On This Manual
In addition to cutting marking film and other media, an CE8000-130AP plotter can also be used as a pen plotter. To ensure high cutting quality and optimal productivity, be sure to read this User's Manual thoroughly prior to use.
Page 3: About The Operation Method In The Manual
About the operation method in the manual • This manual explains operations using the touch panel. You can also operate using the operation keys. For details, see "2.7 How to Use Control Panel". About the words and phrases in this text •...
Page 4: Special Precautions On Handling Blades
Special Precautions on Handling Blades Sharp cutter blades are used with this plotter. Handle the cutter blades and holders with care to prevent bodily injury. Cutter Blades Cutter blades are very sharp. While handling a cutter blade or cutter pen, be careful to avoid cutting your fingers or other parts of your body.
Page 5: After Turning On The Plotter
The Caution Label is located on the machine. Be sure to observe all the cautions on the label. Notes on the Stand Be sure to use only the stand designed for the CE8000-130AP with your CE8000-130AP plotter. The use of a different stand may cause a plotter malfunction or bodily injury.
Page 6: Notes On The Basket
Notes on the basket If the supplied basket is not used, problems in cutting quality may occur. Be sure to use the basket. Notes on the paper (media) Please use the paper (media) in accordance with the following precautions. • The paper is sensitive to temperature and humidity, and can start to stretch or contract immediately upon removal from the roll.
Page 7: Operating Environment
Proper cables and connectors are available from GRAPHTEC’s authorized dealers or manufacturers of computers or peripherals. GRAPHTEC is not responsible for any interference caused by using cables and connectors other than those recommended or by unauthorized changes or modifications to this...
Page 8: Installation Space
Installation space Please secure a space for installation as according to the below illustration. CAUTION Frontward and backward the machine, please take enough space for operation. 500mm 600mm 600mm 500mm...
Page 9: Selecting A Power Cable
Selecting a power cable Be sure to refer to the following tables if you wish to use a cable other than the one supplied as an accessory. Table 1. 100 V to 120 V Power Supply Voltage Range Supply Voltage Reference Plug Configuration Plug Type...
Page 10: Table Of Contents
Contents Preface ................
Page 11 2.2 Attaching a Tool ............. . Attaching a tool.
Page 12 Chapter 3: Basic Operations 3.1 Raise or Lower the Tool ............3.2 Move the Tool Carriage .
Page 13 Chapter 6: Cut function settings 6.1 Set F Command of Cutting (F_CUT) ......... . . 6.2 Setting a Time Out .
Page 14 Chapter 9: Settings Regarding Interface 9.1 Setting Interface ............. . USB interface .
Page 15 Chapter 12: Maintenance 12.1 Daily Maintenance 12-2 ............12-2 Daily maintenance .
Page 16: Chapter 1: Product Summary
Chapter 1: Product Summary This chapter explains how to connect this machine to your computer. SECTION IN THIS CHAPTER Checking the Accessories 1.2 Nomenclature 1.3 Assembling 1.4 Connecting to the Computer...
Page 17: Checking The Accessories
Checking the Accessories Accessories Item Q'ty Item Q'ty Power cable 1 pc SETUP MANUAL 1 of TO ENSURE SAFE AND CORRECT USE each WEB download guide 1 sht. Cutter plunger (PHP33-CB09N-HS) 1 pc Oil-based ballpoint pen plunger Cutter blade (CB09UB (1P)) 1 pc 1 pc (PHP34-BALL)
Page 18: Nomenclature
Nomenclature Front view Tool holder Cutting mat Tool carriage Pen holder Grit roller position guide Media guide Pen station Media sensor Control panel Media set Cutting groove lever Grit rollers Media stopper Media stocker Media flange Stock shaft Push rollers Control panel ......Used to access various plotter functions.
Page 19: Rear View
Rear view USB memory dedicated connector Accessory case Wireless LAN module Media sensor Push roller hold-down force switching lever connection terminal Wired LAN interface USB interface connector Power switch AC line inlet Basket Stand Media guide bar Power switch ......Used to turn the plotter on and off. AC line inlet .......Inlet where the power cable is connected.
Page 20: Assembling
Assembling For assembly of the stand, refer to the stand (ST0124) assembly instructions supplied with the stand.
Page 21: Connecting To The Computer
Connecting to the Computer This section describes how to connect the plotter and the computer. Use either a USB port, wireless LAN or wired LAN* to connect the plotter to a computer. The driver software must be installed before connection. * Wired LAN unit is factory-installed option.
Page 22: When Using Wireless Lan
When using wireless LAN Connection Check that the power switch is turned off (the " " side is pressed down). Remove the wireless LAN module cap. Wireless LAN module cap Install the wireless LAN module to the wireless LAN connection terminal. Wireless LAN module Hole Supplement...
Page 23: Chapter 2: Preparing To Cut
Chapter 2: Preparing to Cut This chapter describes how to prepare to start the cutting. SECTION IN THIS CHAPTER 2.1 Preparation of Cutter Plunger 2.2 Attaching a Tool 2.3 Loading Media (Paper) 2.4 Aligning the Push Rollers 2.5 About the Default Screen 2.6 Connecting to the Power 2.7 How to Use Control Panel 2.8 Setting Feeding Method...
Page 24: Preparation Of Cutter Plunger
Preparation of Cutter Plunger This section describes the structures and types of the cutter plungers (cutter pens). Cutter plunger nomenclature The plotter cuts using a cutter blade mounted in a plunger. There are two different plungers to suit the diameter of the cutter blade to be mounted (the 0.9 mm cutter plunger is provided as a standard accessory).
Page 25: Adjusting The Blade Length
Adjusting the blade length Blade length needs to be adjusted to perform optimal cut. Perform few test cuts and set the optimal blade length. CAUTION • To avoid bodily injury, handle cutter blades with care. • It may result in damaging the cutter blade or the cutting mat if the blade is extended too much. After adjustment, please always perform "CUT TEST".
Page 26: Attaching A Tool
Attaching a Tool Attach a tool (cutter plunger, plotter pen) to the plotter. Attaching a tool When mounting the tool in the tool holder, please note the following. CAUTION • Never touch the tool when the power is turned on or while it is in operation, as it is dangerous. •...
Page 27 Keep the tool clamper and set the tool in the tool holder with pushing up the tool clamper. Tool clamper Supplement Make sure the tool is set straight into the tool holder. Pull the tool clamper until the triangular mark on the screw side aligns with the triangular mark on the rear side of the clamper side.
Page 28: Removing The Tool
Tighten the tool holder screw. Removing the tool To remove the tool, loosen the screw until this protrusion mentioned in step 1 of "Attaching a tool" comes off and then remove the tool. Attaching a pen Attach a pen to the pen station. CAUTION •...
Page 29: Removing A Pen
Once the pen is attached, releasing the holder fixes the pen in place. Always fit into grooves on the pen. Supplement Make sure to check that the top part of any tools mounted on the pen station is set in the grooves above the pen.
Page 30: Loading Media (Paper)
Loading Media (Paper) Both roll media and sheet media can be used with the CE8000-130AP. Load the media according to the instructions given for each type. Use the grit roller on the right side of the media (looking from the front) as a guide when setting it in the media sensor.
Page 31 Flange screw, adjust the position of the grit roller, then re-tighten the flange screw. Media Media flange Stock shaft Groove Grooved portion of the components should be set so that the grooves contact Flange the receiving end of the roller. screw Lowering the media stopper releases the stopper lock.
Page 32 CAUTION • During a plotting or cutting operation, be sure to keep your hands, hair, and so forth away from the media stocker, gears and rollers. • When you are installing media, be careful for gear, a roller, etc. not pinch you finger. •...
Page 33 Put the roll media on the roll media tray and then push the tip of the roll media forward from the back of the machine. Make sure to pull it so that there is no slackening across the roll media's route. Media guide bar Media sensor The paper roll media's route goes over the center bar, over the square pipe and behind the media guide...
Page 34 Push roller Grit roller position guide Push roller Grit roller Media sensor (The center push roller is on top of the grit roller.) (The center push roller is on top of the grit rollers.) (The center push roller is near the edge.) (The center push roller is not on top of the grit roller.) When feeding long media (2 meters or more) Position the push rollers at least 15 mm inside the edges of the media.
Page 35 Raise the media stopper to lock. Media stopper CAUTION During a plotting or cutting operation, be sure to keep your hands, hair, and so forth away from the media stocker, gears and rollers. When pull out the paper, please stand to the front of the main assembly and pull horizontally of the paper. Pull from the front of the machine to even the tension of both A and B sides of the paper, as shown in the figure below.
Page 36 Raise the set lever after confirming that the route the roll paper passes through is taut and not slackening. The push roller position and the roll paper will stay in place. Media set lever Lowering the media stopper releases the stopper lock. Media stopper CAUTION During a plotting or cutting operation, be sure to keep your hands, hair, and so forth away from the media stocker,...
Page 37: Loading Sheet Media
Loading sheet media Operation Lower the media set lever to raise the push rollers. Push roller Media set lever Media sensor Load the sheet media so that the sheet media's right edge lines up with the guideline on the front side. Make sure that the sheet media completely covers the media sensor.
Page 38 Position the media and the push rollers to correspond with the width of the media. Use the 4 push rollers to push down the sides and center of the media. Use the grit roller position guide and make sure the push rollers are on top of the grit rollers. Supplement •...
Page 39: Aligning The Push Rollers
Aligning the Push Rollers This section describes how to alignment of the push rollers. Aligning the push roller Position the left and right push rollers to correspond with the width of the media. Adjust the push rollers so that they are positioned above both the media and the grit rollers.
Page 40: When Feeding Long Media (2 Meters Or Less)
Position the push rollers at least 5 mm inside the edges of the media. Push roller Media For minimum width media The CE8000-130AP can take media of 594 mm (A1 size) or more. CAUTION • The media must be at least 125 mm in length in media feed direction.
Page 41: Changing The Hold-Down Force
Changing the hold-down force The CE8000-130AP requires the push roller hold-down force to be set based on the media's width and material type in order to keep the media in place. Switching Lower the media set lever and raise the push roller.
Page 42: About The Default Screen
About the Default Screen The Initial Setup Screen appears only when powering up the machine for the first time after purchase. Here, you can set the “Display language”, “LENGTH UNIT” and “Wireless LAN”. Also, after setup, you can select the menu even from the READY status. See "2.6 Connecting to the Power"...
Page 43: Connecting To The Power
Check that the power switch is turned off. (the " " side is pressed down) Connect one end of the provided power cord to the CE8000-130AP AC line inlet and the other end to an electrical socket of the rated supply voltage.
Page 44: How To Use Control Panel
How to Use Control Panel This section explains the function on the control panel. POSITION ( ) key Screen (LCD touch panel) SLOW key ESCAPE key ENTER key Operation key POSITION ( , ) key ..Adjusts various settings, selects numerical value changes, moves the cursor, and changes the positions in the MENU screen.
Page 45: Control Panel Screens
Control panel screens Information according to the current situation is displayed on the control panel screen. HOME screen CROSS CUT screen QUICK MENU screen CUT CONDITION screen MENU screen Media set lever lowered Media set lever raised Setting status display Command : GP-GL Command : HP-GL Command...
Page 46: How To Operate The Control Panel Screen
How to operate the control panel screen You can operate this plotter using either the touch panel or operation keys. How to operate the HOME screen (READY state) When using the touch panel Use the [ ], [ ], [ ] and [ ] icons. When using the operation keys Hold down the [ENTER] key and press the POSITION ( , ) keys to select the [ ], [ ], [[ ] or [ ] icon.
Page 47: Contents To Be Operated From The [ ] Icon - Menu Screen
Contents to be operated from the [ ] icon - Menu screen The contents that can be operated and set from the MENU screen are as follows. MEMORY .... Perform the operation necessary for output from USB memory. TOOL ....Sets the conditions related to tool operation. AXIS ....
Page 48: Contents To Be Operated From The [ ] Icon - Quick Menu Screen
Contents to be operated from the [ ] icon - QUICK MENU screen The contents that can be operated and set from the QUICK MENU screen are as follows. COPY ....Copies and outputs data in buffer memory. ORIGIN ....Sets the current tool position as the origin point (cutting point). COND No.
Page 49 When using operation keys • Go back one level up: Press the [ESCAPE] key or POSITION ( ) key. • Return to the HOME screen: Hold down the [ENTER] key and press the POSITION ( ) key, then select the [ icon.
Page 50 How to operate numerical input This section describes using the [MEDIA SETTING] - [PAGE LENGTH] as an example. When using the touch panel Press the [ ] [ ] icon or the [ ] icon. When you have finished entering the numerical values, press the [OK]. Supplement •...
Page 51: Setting Feeding Method
Setting Feeding Method Feeding method for the loaded media is set. Operation If you have already loaded the media, the MEDIA TYPE menu appears. Select the media type to suit the loaded media. For roll media, check that the media stopper is unlocked, and then select a media type on the MEDIA SELECT screen.
Page 52 [SHEET] Select this when a sheet media has been loaded. The width, leading edge, and trailing edge of the sheet media are detected. Supplement • When selecting [ROLL-1] or [ROll-2] Please confirm on the confirmation screen that the media stopper lock has been released, then press the [OK]. This will be displayed on the above screen.
Page 53: Media Auto Prefeed And Cross Cut
Media auto prefeed and cross cut When setting to FEED & CROSS CUT(exe), the media is cross-cut after feeding one page. One page is the value set in "PAGE LENGTH" plus 20 mm and the value set in "REAR SPACE". When setting to CROSS CUT(execute), the media is cross-cut at the current tool position.
Page 54: Selecting Tool Condition
2.10 Selecting Tool Condition Set the “TOOL CONDITION (CUT CONDITION) No.”, “TOOL”, “OFFSET”, “SPEED”, “FORCE”, and “ACCEL (ACCELERATION)”. You can switch to the settings for each of the 8 preset media types. Selecting the TOOL CONDITION number (Condition No.) This section explains how to select the TOOL CONDITION number (Condition No.). Operation: Operation with the [ ] icon Press the [...
Page 55: Setting The Tool Condition
Use the [ ] and [ ] icons to display the tool condition number you want to use. Press the tool condition number you want to use. It will return to HOME screen. Setting the tool condition This section describes how to make the tool, speed, force and acceleration settings. Before cutting media, the following four cutter-pen conditions must be specified.
Page 56: Setting The Tool
Setting the tool Set the type and offset value of the tool that is used in each of the tool condition numbers. Condition No.1 applies specifically to use of the pen plunger for the either oil-based ballpoint pen or water based fiber-tip pen.
Page 57: Tool Offset Setting
Tool offset setting This section describes how to set the tool offset you want to use. Operation Press the [ ] icon. Press the [EDIT CUT CONDITION]. Press the tool condition number (2 to 8) you want to set. Supplement "Condition No.1"...
Page 58: Setting The Speed
Confirm the setting and press the [OK]. Press the [ ] icon. It will return to HOME screen. Setting the speed This section explains how to set the speed to be used. Operation Press the [ ] icon. Press the [EDIT CUT CONDITION]. Press the [ ] icon.
Page 59: Setting The Force
Confirm the setting and press the [OK]. Press the [ ] icon. It will return to HOME screen. Setting the force This section explains how to set the force to be used. Operation Press the [ ] icon. Press the [EDIT CUT CONDITION]. Press the [ ] icon.
Page 60: Setting The Acceleration
Confirm the setting and press the [OK]. Press the [ ] icon. It will return to HOME screen. Setting the acceleration This section explains how to set the acceleration to be used. Operation Press the [ ] icon. Press the [EDIT CUT CONDITION]. Press the [ ] icon twice.
Page 61: Adjust The Blade Length Manually
Confirm the setting and press the [OK]. Press the [ ] icon. It will return to HOME screen. Adjust the blade length manually Optimal cut is not achieved unless the blade length is adjusted in accordance to the used media and the cutter blade.
Page 62 Supplement • Blade length can be changed by spinning the adjustor on the blade. Spinning it in the A direction pushes it out, while spinning it in the B direction pulls it in. One scale unit is equal to 0.1 mm. Cutter blade moves approximately 0.1 mm turning one scale unit.
Page 63: Running Cutting Tests
2.11 Running Cutting Tests Test cutting can be performed after making the tool, speed, force, and acceleration settings to ensure that the selected cutting conditions actually produce the desired cutting results. Check how far the blade cuts into the media and how the corners are being cut. If the cutting results are not satisfactory, adjust the various settings and repeat the test cutting until the optimal settings are achieved.
Page 64: Confirm The Results Of The Cutting Test
Press the [OK] or [ENTER] key. Press the [ ] icon. It will return to HOME screen. Confirm the results of the cutting test Confirm the cutting test results, and adjust to optimal setting. Repeat cutting test and adjustment until optimal cut is achieved.
Page 65: Displaying Cutting Area
2.12 Displaying Cutting Area Check the cutting area. Operation Press the [SLOW] key in the HOME screen. Supplement The [TOOL POSITION] indicates the current tool position in the cutting area. Release the [SLOW] key. It will return to HOME screen. 2-43...
Page 66: Chapter 3: Basic Operations
Chapter 3: Basic Operations This chapter describes the basic methods to operate the plotter manually. SECTION IN THIS CHAPTER 3.1 Raise or Lower the Tool 3.2 Move the Tool Carriage 3.3 Setting the Origin Point 3.4 Setting the Plotting Direction 3.5 Stop Cutting...
Page 67: Raise Or Lower The Tool
Raise or Lower the Tool This is a function to raise or lower the tool. Operation Press the [ ] icon. Press the [TOOL]. Press the [ ] icon. Press the [TOOL UP/DOWN]. Tool is raised or lowered every time the [TOOL UP/DOWN] is pressed. Press the [ ] icon.
Page 68: Move The Tool Carriage
Move the Tool Carriage Tool carriage can be moved manually using the POSITION key. It can move the tool carriage to the origin, or move it certain distance to keep it away. Move in steps manually It can manually move in steps when the screen is displaying "READY", or when the POSITION ( , ) key is displayed.
Page 69: Setting Step Movement Distance
Setting step movement distance The parameters when setting the cutting direction are determined by the distance of the cutting direction. Operation Press the [ ] icon. Press the [CONFIG]. Press the [GENERAL]. Press the [ ] icon. Press the [MOVE STEP]. Press the move step you want to use.
Page 70: Move Away The Tool Carriage
Move away the tool carriage It is possible to move the tool carriage toward upper right. It makes it easier to confirm the cutting results if you perform this operation after the cutting is completed. <When using Roll Media>: Seen from above <When using Sheet Media>: Seen from above To the top of the maximum cutting area...
Page 71: Reset (Revert To The Initial State When The Power Was Turned On.)
Reset (Revert to the initial state when the power was turned on.) Revert to the state when the power was turned on. Operation Press the [ ] icon. Press the [ ] icon. Press the [RESET]. Press the [YES].
Page 72: Setting The Origin Point
Setting the Origin Point Point where the plotting starts is called origin point. The origin point can be set at any location. New origin point Original origin point How to set the current position to the new origin point Move the tool to the new origin point by pressing the POSITION ( , ) keys when it is in READY status.
Page 73: When Coordinate Axes Rotation Are Set
When coordinate axes rotation are set If the origin point is moved while the coordinate axes are rotated, the origin point will move as shown below. Supplement See "3.4 Setting the Plotting Direction" about the rotation of the coordinate axes. Original origin point New origin point...
Page 74: Setting Origin Point When Hp-Gl Is Set
Setting origin point when HP-GL is set When using the HP-GL command, the origin point is set to either the lower left of the cutting area or the center. Supplement • When using the GP-GL command, this setting does not affect the operation. •...
Page 75: Setting The Plotting Direction
Setting the Plotting Direction Rotate the coordinate axes to change the cutting direction. Supplement The rotation settings will be saved even if the power is shut off. Coordinate axes rotation settings ON Coordinate axes rotation settings OFF Operation Press the [ ] icon.
Page 76: Pause And Resume Cutting
Stop Cutting It will stop cutting during operation. The menu is displayed on the screen of the control panel while it is stopped. It is possible to choose either to continue or stop the operation. It is also possible to exchange or reset the media while it is stopped. Pause and resume cutting Operation Press the [STOP] or [ESCAPE] key.
Page 77 Stop cutting Operation Press the [STOP] or the [ESCAPE] key. Press the [CANCEL JOB]. Supplement It will resume cutting by pressing the [RESUME JOB]. Confirm if the data transfer from the computer is stopped and press the [YES, CLEAR]. The buffer memory will be cleared and it will return to HOME screen. Supplement •...
Page 78: Chapter 4: Convenient Functions
Chapter 4: Convenient Functions This chapter describes about the convenient functions of the plotter. SECTION IN THIS CHAPTER Setting for Cutting 4.2 Copy (Duplicate Cutting) 4.3 Panel Cutting 4.4 Cross Cut Force...
Page 79: Setting For Cutting
Setting for Cutting Settings such as area and width of cutting, page length, mirrored, enlarged, shrunk, etc., can be set. Setting cutting area Origin point will be set at lower left of the AREA once the AREA is set. It is possible to set the origin point at the center when the HP-GL is selected. Move the origin point to change the cutting position.
Page 80 Press the [TOOL MOVE]. Supplement • Coordinate value displayed here is the distance to the tool carriage from the origin point. • Press [DEFAULT] if the cutting area is not to change. Press the POSITION ( , ) keys and move the tool carriage to the position to be the lower left of the cutting AREA.
Page 81: Setting Cutting Width (Expand)
Setting cutting width (EXPAND) Set the width of the cutting area. Default setting is to the internal edge of the push rollers. It can be set up to 10 mm outside. Setting will affect both ends, resulting the total width change will be double the set value. CAUTION Do not set the "INITIAL B.
Page 82: Setting Length Of The Page
* Be sure to use the basket. • For the CE8000-130AP, the page length up to 50 m can be set. We give quality assurance for page feeding up to 3 m. (Under the condition that the media described below is used.) •...
Page 83 Press the [PAGE LENGTH]. Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between 20.0 cm and 5000.0 cm. Confirm the setting and press the [OK]. Press the [ ] icon.
Page 84: Copy (Duplicate Cutting)
Copy (Duplicate Cutting) Repeats cutting the specified number of times using the cutting data held in the buffer memory. Supplement • Do not send new data to plotter while copying. Cutting data in the buffer memory will be cleared. • Previous cutting data will be cleared and newly sent data will be stored as cutting data if you send new data with 10 seconds or more interval from the time it finished cutting.
Page 85 Operation Plot (cut) the data you want to copy once. Cutting data is stored in the buffer memory. Press the POSITION ( , ) keys and move the tool carriage to the position to copy. Press the [ ] icon. Press the [COPY].
Page 86: When Media Change Mode Is On
Press the [COPY SPACE] Supplement Copy interval can be set when MEDIA CHANGE MODE is turned OFF. Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement • You can set the range between 1.0 mm and 10.0 mm. •...
Page 87 Press the [ ] icon. Press the [COPY]. Supplement • Turning MEDIA CHANGE MODE on will display the CHANGE MEDIA message each time after a single cut. "If the [QUIT COPY] is pressed, copying will be suspended and it will return to the HOME screen. •...
Page 88 Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between 1 and 100. Confirm the setting and press the [OK]. Press the [START]. Press the [YES]. The copy will start. If the number of copies is 2 or more, replace the media after the first copy is completed.
Page 89: Panel Cutting
Panel Cutting To prevent skew of long media, utilize Panel Cutting when cutting. Supplement • When Panel Cutting is on, the machine will begin by dividing up partition length and continue cutting until one of the following data breaks appears. When the first partitioned area cut is finished, the machine will move to the next area, and repeat this until all areas have been cut.
Page 90 Press [ENABLE FUNCTION] to turn it to [ON]. To cancel, set it to [OFF]. Press the [DIVIDE LENGTH]. Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between 1.0 cm and 2000.0 cm. Confirm the setting and press the [OK].
Page 91: Cross Cut Force
Cross Cut Force Adjust the blade force when cross cutting. The setting range of Cross Cut force is 1 to 38. The force becomes strong when the set value is large. If the medium is thin, set the setting value to a small value, if it is thick, set it large. Supplement This setting will be saved even if the power is shut off.
Page 92: Chapter 5: Manual Position Adjust
Chapter 5: Manual Position Adjust Here, we will explain how to match up points while manually confirming the media and tool (cutter pen or plotting pen) points. SECTION IN THIS CHAPTER 5.1 Overview of Axis Adjustment 5.2 Adjusting Coordinate Axes...
Page 93: Overview Of Axis Adjustment
Overview of Axis Adjustment For axis adjustment, the inclination of the axis can be adjusted based on the coordination of 2 alignment marks (grit). In addition, the distance can be adjusted by entering the distance of each point. Move the tip of each tool to the appropriate point. Use media that has the plots (grits or alignment marks) required to find the X and Y axis and the origin point.
Page 94: Adjusting Coordinate Axes
Adjusting Coordinate Axes The following explain how to adjust to coordinated axes. Supplement • After aligning, the alignment will be canceled when the following occurs. · A new origin point is set. · The media again is set. · The Rotation is set. (Please set the Rotation before axis alignment.) The axis alignment point at this time moves according to the Rotation setting.
Page 95 Press the [AXIS POINT SETTING]. Press the POSITION ( , ) keys to move the tip of the tool to the alignment mark position. Move the tool to the position of alignment point 1 (Any point on the X axis already plotted). Supplement Pressing the POSITION and [SLOW] keys at the same time will move the tool carriage slower.
Page 96 Chapter 6: Cut function settings This chapter provides the settings required when using the cutting plotter in combination with CAD for apparel. SECTION IN THIS CHAPTER 6.1 Set F Command of Cutting (F_CUT) 6.2 Setting a Time Out 6.3 Setting a Separator 6.4 Offline Output from USB Memory 6.5 Cross Cut Setting 6.6 Setting Rear Margin...
Page 97 Set F Command of Cutting (F_CUT) With the feed command in the GP-GL command, set to Cross Cut (ON) / Not (OFF). When this function is enabled, even if a parameter that does not cut the paper with the feed command is sent, Cross Cut is activated.
Page 98 Setting a Time Out Regarding the timeout setting, when the data input time to the interface becomes equal to or longer than the specified time, that point in time is regarded as a data break. All data up to the data break will be plotted, after it, cross cut will be performed. Supplement This setting will be saved even if the power is shut off.
Page 99 Press the time out you want to use. Press the [ ] icon. It will return to HOME screen.
Page 100 Setting a Separator Regarding the separator setting, the command that is set as separator is judged as the data break when it is sent. All data up to the data break will be plotted, after it, cross cut will be performed. GP-GL separator Set the separator at GP-GL.
Page 101 Use the [ ] and [ ] icons to display the GP-GL separator you want to use. Supplement You can set to "FS", "H", "J 0", "F" or "-". When set to "-", cross cut by separator is not performed. Press the GP-GL separator you want to use.
Page 102 Press the [ ] icon twice. Press the [HP-GL SEPARATOR]. Use the [ ] and [ ] icons to display the HP-GL separator you want to use. Supplement You can set to "IN", "DF", "PS", "IW", "SC", "IP", "SP", "NR", "PG", "AH", "AF" or "-". When set to "-", cross cut by separator is not performed.
Page 103 Offline Output from USB Memory Dedicated data that was created by the application software can be saved in the USB memory and output from the cutting plotter. Select the data from the menu of the plotter, and then output it in offline. Supplement •...
Page 104 Use the [ ] and [ ] icons to display the file to be used. Supplement The string in parentheses <> is the folder name. Press the folder name to display the files in the folder. Press the file you want to use. Start cutting with the selected file.
Page 105 Cross Cut Setting Using the values set with the command and timeout specified in separator, set whether performing Cross Cut or not. Supplement This setting will be saved even if the power is shut off. Operation Press the [ ] icon. Press the [MEDIA] icon.
Page 106 Setting Rear Margin During timeout or when making cross cut with separator setting, the media is cross-cut t at the position where the margin value set here is added to the maximum value of + X plotted. Cross Cut position Value of rear margin (+X) Rear position plotted Supplement...
Page 107 Press the [REAR SPACE]. Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between 7.0 mm and +30.0 mm Confirm the setting and press the [OK]. Press the [ ] icon.
Page 108 Setting the Number of Pre Feeds Set the number of pre feeds to prevent deviations from occurring when the roll media is pulled out. During the pre feed, the grit roller leaves traces on the paper. Pre feeds can be repeated after paper exposure time has elapsed. This function is available when the Initial Feed or if Panel Cutting is ON.
Page 109 Setting Paper Exposure Time This function sets the time the paper/media is acclimated to the operating environment after being pulled off the paper roll to minimize media expansion or contraction, and prevent it from adversely effecting cutting or plotting. After the initial feed is complete, the paper will be fed backwards to half the preset feed length and exposed for the set amount of time.
Page 110 Chapter 7: Settings Regarding Cutting Quality There are times that ideal cutting may not be possible, such as the lines may shift, corners deform, or uncut sections occur, due to the characteristics of the media (thickness, how hard it is, etc.) or the shape of the blades, when the actual cutting is done.
Page 111 Cutting the Corner of Thick Media Sharp Outline of tangential mode The blade needs to be facing toward the direction of cut when cutting the media. The tip of the blade is shaped as shown so the blade is facing the cutting direction even when it is cutting curved lines or corners. The tip of the blade is off from the rotation axis of the blade (CUTTER OFFSET).
Page 112 Setting the tangential mode Enabled (Mode 1 and Mode 2) and OFF of the tangential mode can be set individually for each of tool condition No.2 to 8. Operation Press the [ ] icon. Press the [EDIT CUT CONDITION]. Press the [ ] icon four times.
Page 113 Setting the length of overcut Set the length of overcut with tangential mode. Operation Press the [ ] icon. Press the [EDIT CUT CONDITION]. Press the [ ] icon five times. Press the tool condition number (2 to 8) you want to set. Press the [OVERCUT].
Page 114 Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between 0.0 mm and 0.9 mm. Confirm the setting and press the [OK]. Press the [END]. Specify the setting value using the [ ] [ ] icon or the [ ] icon.
Page 115 Press the [EDIT CUT CONDITION]. Press the [ ] icon five times. Press the tool condition number (2 to 8) you want to set. Press the [INITIAL DOWN FOECE]. Specify the setting value using the [ ] [ ] icon or the [ ] icon.
Page 116 Setting the Step Pass It may not cut the curved line smoothly if there is very short lines in the curve. It will cut in the units of the specified value when the STEP PASS is used, which allows to control the short lines with certain length, resulting to stable rotation of the blade for higher cut quality.
Page 117 Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between 0 and 20. Confirm the setting and press the [OK]. Press the [ ] icon. It will return to HOME screen.
Page 118 Setting the Offset Angle The CE8000-130AP analyzes the cutting data, and controls the angle of the cutter blade tip if the change in the angles of the corner is large. Angle control is applied if there is larger angle change than the angle specified as reference angle.
Page 119 Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between 0 and 60. Confirm the setting and press the [OK]. Press the [ ] icon. It will return to HOME screen. 7-10...
Page 120 Setting the Distance Adjust DISTANCE ADJUST value corrects any deviation in the length of cut or plotted line segments, which occurs depending on the media being used. DISTANCE ADJUST value for the deviation is specified as a percentage of the total distance. For example, a setting of +0.05% adjusts a distance of 2 m (2,000 mm) by 2,000 x 0.05% = 1 mm, making 2,001 mm.
Page 121 Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between -2.00% and +2.00%. Confirm the setting and press the [OK]. Press the [CORRECTION VALUE Y]. Specify the setting value using the [ ] [ ] icon or the [ ] icon.
Page 122 Setting Cut Line Pattern Lines can be cut with perforated lines so the cut parts will not fall off. There are 8 different patterns of perforated lines set as 0 to 7, and the ratio of cut and uncut part differs in each (tool is raised or the force is decreased for following length every 8 mm of the cut).
Page 123 Press the [CUT LINE PATTERN]. Press the [TYPE No.]. Display the TYPE No. you want to use using the [ ] and [ ] icons. Press the Type No. you want to use. Press the [GAP ACTION]. Specify the setting value using the [ ] [ ] icon or the [ ] icon.
Page 124 Press the [ ] icon. Press the [ ] icon. It will return to HOME screen. 7-15...
Page 125 Setting Initial Blade Control Position Adjust After turning on the power or changing pen condition settings, touch the blade to the media and adjust the blade direction. The Initial Blade Control Position will need to be set in order to make sure the area is not damaged and that the blade properly makes contact with the media.
Page 126 Press the blade initialization position you want to use. Supplement • "SPECIFIED Y POSITION " is displayed when media is loaded. • If you select [SPECIFIED Y POSITION] in the ready state, the following message will be displayed. Press the POSITION ( , , , ) key to move the tool position, and press the [ENTER] key to set.
Page 127 Setting the blade control force Slight cut operation is performed before the actual cut operation to align the blade toward the cutting direction. Lower FORCE is necessary compared with the normal cutting, so it is possible to set lower FORCE as a BLADE CTRL FORCE.
Page 128 Confirm the setting and press the [OK]. Press the [ ] icon. It will return to HOME screen. 7-19...
Page 129 Setting Adjustment Between the Tools If there is a misalignment between the tools, you can correct the misalignment by using this function. If there is a misalignment in the cutting/plotting between Tool 2 (tool attached to the tool holder) and Tool 1 (tool attached to the pen station), you can correct it by entering the adjustment value.
Page 130 Press the POSITION ( , ) keys to move the tool carriage and the media to the position where the test pattern is cut. Move it inside of a cutting area greater than 50 mm on both the X and Y axes. Supplement Pressing the POSITION and [SLOW] keys at the same time moves the tool carriage slowly.
Page 131 Confirm the setting and press the [OK]. Press the [CORRECTION VALUE Y]. Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between -3.0 mm and +3.0 mm. Confirm the setting and press the [OK].
Page 132 Cross cut the roll paper The operation to separate media is called "Cross Cut". You can manually cross-cut at any position or cross-cut automatically at the end of cutting. The blade force to cross-cut is called Cross Cut force and can be adjusted. CAUTION Do not place your hands where the blades pass.
Page 133 Manually cross-cut Cross-cut at the current tool carriage position. When the [CROSS CUT(execute)] is selected, you can separate the roll media at any position by cross-cutting it manually after feeding it with the POSITION ( , ) key. When the [FEED&CROSS CUT(exe)] is selected, the roll media is cross-cut after feeding 1 page. When specifying 1 page, set a value obtained by adding 20 mm and the value set in the "REAR SPACE"...
Page 134 Chapter 8: Settings Regarding Cutting Time This chapter describes the settings affecting the cutting time. SECTION IN THIS CHAPTER 8.1 Sorting the Plotting Data 8.2 Perform Automatic Pre Feed When Cut Data is Received 8.3 Perform Automatic Pre Feed When Media is Set (Initial Feed) Received 8.4 Setting Feed Speed for Pre Feed 8.5 Setting the Moving Speed...
Page 135 Sorting the Plotting Data When sorting cutting/plotting data, cutting is performed collectively so that the amount of movement in the media feed direction and the tool replacement time are minimized, so cutting operation is improved efficiently. The data of pen plunger (Condition No. 1) is plotted first, and then the data of cutter plunger (Condition No. 2 to No.
Page 136 Perform Automatic Pre Feed When Cut Data is Received It is possible to feed and reverse the media automatically for specified amount when the plotter receives the cutting data. "Pre feeding" to prevent the shifting of media can be done automatically. Also, the media will be unrolled from the roll before cutting when rolled media is to be used.
Page 137 Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement • You can set the range between 0.5 m and 50.0 m. • Feed length can be set in 0.1 m units. Confirm the setting and press the [OK]. Press the [ ] icon.
Page 138 Perform Automatic Pre Feed When Media is Set (Initial Feed) Received It can be set to automatically feed and return the length of the page when the media is loaded and the media set lever is raised. This is equal to automatically perform the "Pre Feed" to prevent the shifting of the media. Supplement This setting will be saved even if the power is shut off.
Page 139 Setting Feed Speed for Pre Feed Set the speed of media feed such as the feed (media carry) of auto media of received cut/plotting data. Set the feed speed to "SLOW" if the media shifts during the Pre Feed when the heavy or slippery media is to be used.
Page 140 Setting the Moving Speed Moving speed is the speed the tool moves when it is raised (tool up state). The cutting time in total becomes short if you set the MOVING SPEED to fast speed even though the speed of the tool when it is cutting (lowered) is set to slow speed for the hard to cut media (hard or sticky).
Page 141 Press the moving speed you want to use. Press the [ ] icon. It will return to HOME screen.
Page 142 Setting the Shortcut Move When the plotter received coordinate information for moving with the tool up is continuously from a computer connected, you can set whether to move to each coordinate in turn or move directly to the final coordinate using the "SHORTCUT MOVE".
Page 143 Setting the Tool Up Height The TOOL UP HEIGHT is the height of the tool position when the tool is raised. Set to "HIGHER POSITION" if the media is thick. Usually, set to the "NORMAL POSITION". Supplement This setting will be saved even if the power is shut off. Operation Press the [ ] icon.
Page 144 Chapter 9: Settings Regarding Interface This chapter describes setting regarding interface. SECTION IN THIS CHAPTER Setting Interface 9.2 Connecting via wireless LAN 9.3 Connecting via wired LAN 9.4 Clearing buffer memory 9.5 User selection settings...
Page 145: Setting Interface
– When the plotter is connected to a USB hub or extension port. – When the plotter is connected to a hand-built or modified computer. – When using a driver other than the one specifically designed for CE8000-130AP. • Notes when using the USB 3.0 interface –...
Page 146: Connecting Via Wireless Lan
Connecting via wireless LAN Configure settings when connecting using wireless LAN. * If the wireless LAN module is not installed, [ ] will be displayed on the menu and you will not be able to open the setting items. When connecting via wireless LAN, set the following items. •...
Page 147 Press the [ACCESS POINT]. Supplement If no connectable access point is found, the following screen will be displayed. Please check the status of your wireless LAN router. Use the [ ] and [ ] icons to display the access point to be used. Supplement If the access point you want to connect is not displayed, press [ ] to return to the previous screen, then press...
Page 148: Set Ip Address, Subnet Mask And Gateway
Confirm the entered information and press the [CONNECT]. Supplement If an error message is displayed, check the contents of the error message and reconfigure settings again. Press the [YES]. Supplement When connected to an access point, a check mark will be displayed to the right of the access point name. Press the [ ] icon.
Page 149 Press the [COMMUNICATION]. Press the [WIRELESS LAN] Press the [IP ADDRESS]. Press the [IP ADDRESS]. Press the separated numbers you want to set. Enter the numbers you want to set and press the [OK]. Confirm the numbers and press the [OK]. Supplement •...
Page 150 Press the [SUBNET MASK]. Press the separated numbers you want to set. Enter the numbers you want to set and press the [OK]. Confirm the numbers and press the [OK]. Supplement If you want to change the numbers for other separated numbers, repeat steps 11 and 12. Press the [GATEWAY].
Page 151 Confirm the numbers and press the [OK]. Supplement If you want to change the numbers for other separated numbers, repeat steps 15 and 16. Press the [OK]. Supplement • If you change the settings, the plotter will automatically restart and return to the HOME screen. •...
Page 152 Press the [CONFIG]. Press the [COMMUNICATION]. Press the [WIRELESS LAN]. Press the [IP ADDRESS]. Press [DHCP] to turn it to [ON]. To cancel, set it to [OFF]. Press the [OK]. Supplement • If you change the settings, the plotter will automatically restart and return to the HOME screen. •...
Page 153: Confirming The Connection Information
Confirming the connection information The SSID and encryption standard, etc. related to the connected access point are displayed. Operation Press the [ ] icon. Press the [CONFIG]. Press the [COMMUNICATION]. Press the [WIRELESS LAN]. Press the [ ] icon. Press the [CONNECTION INFO]. Information about the connection is displayed.
Page 154: Connecting Via Wired Lan
Connecting via wired LAN This section explains the setting when connecting via wired LAN. * Wired LAN unit is factory-installed option. * If the wired LAN module is not installed, [---] will be displayed on the menu and you will not be able to open the setting items. When connecting via wired LAN, set the following items.
Page 155 Press the separated numbers you want to set. Enter the numbers you want to set and press the [OK]. Confirm the numbers and press the [OK]. Supplement • If you want to change the numbers for other separated numbers, repeat steps 6 and 7. •...
Page 156 Press the [GATEWAY]. Press the separated numbers you want to set. Enter the numbers you want to set and press the [OK]. Confirm the numbers and press the [OK]. Supplement If you want to change the numbers for other separated numbers, repeat steps 14 and 15. Press the [OK].
Page 157: Dhcp Setting
DHCP setting DHCP setting depends on the network device configuration and your environment. For details, see your device’s manual or consult your network administrator. The default value of DHCP is [OFF]. Supplement Although the DHCP depends on the settings of the DHCP server, if the DHCP setting is turned on, the IP address of this plotter may change every time the power is turned on.
Page 158 Press the [OK]. Supplement • If you change the settings, the plotter will automatically restart and return to the HOME screen. • If you do not change any settings, proceed to step 7. Press the [ ] icon. It will return to HOME screen. 9-15...
Page 159: Clearing Buffer Memory
Clearing buffer memory Erases output data in buffer memory. Operation Press the [ ] icon. Press the [CONFIG]. Press the [COMMAND]. Press the [ ] icon. Press the [BUFFER CLEAR]. Press the [YES, CLEAR]. The buffer memory will be cleared and it will return to HOME screen. 9-16...
Page 160: User Selection Setting
User selection setting Call up the user selection setting (CAD). "Command", "Origin point", "Step size", "Separator", "Timeout" and "Page length" have been set. Setting user selection User selection settings Command HP-GL HP-GL GP-GL HP-GL HP-GL HP-GL HP-GL HP-GL Step size 0.025 0.025 0.025...
Page 161 Press the [CONFIG]. Press the [GENERAL]. Press the [ ] icon twice. Press the [SELECT USER]. Use the [ ] and [ ] icons to display the user number to be used. Supplement You can set from setting no. 1 to 8. Press the user number you want to use.
Page 162: Chapter 10: Settings Regarding Operation Environment
Chapter 10: Settings Regarding Operation Environment This chapter describes settings regarding the operation environment. SECTION IN THIS CHAPTER 10.1 Related to Menu Display 10.2 Related to sensor 10.3 Plotter Environment-related Setting 10-1...
Page 163: Related To Menu Display
10.1 Related to Menu Display Make settings related to menu display. Display language setting (LANGUAGE SELECTION) This function sets the language used on the display. One of ten languages can be selected: English, Japanese, German, French, Italian, Spanish, Portuguese, Russian, Korean, and Chinese.
Page 164: Display Length Unit Setting (Length Unit)
Display Length Unit Setting (LENGTH UNIT) The coordinate values that appear on the display and the other parameters for various settings can be changed to either meter or inch display. Operation Press the [ ] icon. Press the [CONFIG]. Press the [GENERAL]. Press the [LENGTH UNIT].
Page 165: Related To Sensor
10.2 Related to sensor This section describes how to make the sensor-related settings. Enabling/Disabling the media sensors You can disable the sensors that detect the presence or absence of media and the size of the medium in the feed direction. If you want to enable it, set it back to "ENABLED"...
Page 166: Enabling/Disabling The Push Roller Sensors
Press the [ENABLED] or the [DISABLED] for the sensor. Press the [ ] icon. It will return to HOME screen. Enabling/Disabling the push roller sensors Set the push roller sensors that detect the width of the media to "DISABLED". If you want to enable it, set it to "ENABLED" here. CAUTION Usually, please use it while set to “Enabled”.
Page 167 Press the [ENABLED], [INSIDE DISABLED] or [DISABLED] for the sensor. Supplement • It will not generate error even if the inner push rollers are not on the grit rollers when the "INSIDE DISABLED" is selected. • When "DISABLE" has been set, the home sensor position is not detected, so depending on the data, a position error could occur.
Page 168: Plotter Environment-Related Setting
10.3 Plotter Environment-related Setting This section describes how to make the plotter environment-related settings. Fan suction setting This function sets the suction force used to affix media to the plotter. It may not feed properly if the media is thin, so set to "WEAK". Operation Press the [ ] icon.
Page 169: Media Set Assist Setting
Media set assist setting Media set assist is an auxiliary function that operates a suction fan when loading media to make it easier to load the media. Supplement • Depending on the type of media, using Media Set Assist may make it difficult to set the media. In this case, please make the setting to [OFF].
Page 170: Enabling/Disabling The Beep Setting
Enabling/Disabling the beep setting You can turn off the buzzer sound. If you want to enable the buzzer sound again, set it here. Operation Press the [ ] icon. Press the [CONFIG]. Press the [GENERAL]. Press [BEEP] to turn it to [ON]. To cancel, set it to [OFF].
Page 171 Press the [CONFIG]. Press the [GENERAL]. Press the [ ] icon. Press the [LCD CONTRAST]. Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between -30 and 30 (5 steps). Confirm the setting and press the [OK].
Page 172: Chapter 11: Settings Of Controls From Computer
Chapter 11: Settings of Controls from Computer This chapter describes settings regarding the controls from the computer. SECTION IN THIS CHAPTER 11.1 Setting Related to Command Processing 11.2 Related to GP-GL command 11.3 Related to HP-GL command 11-1...
Page 173: Setting Related To Command Processing
11.1 Setting Related to Command Processing Make settings related to command processing. Setting the command There are 2 types of commands, the GP-GL and the HP-GL, that the plotter can use. Match the setting to the used software, or set it to AUTO. Supplement •...
Page 174: Priority Of Cut Condition Selection
Priority of cut condition selection Select the priority of the setting created by different method when the tool condition is set. All the tool condition that is received from the computer will be ignored, and only the setting and change of the tool condition from the control panel is accepted when “MENU PRIORITY”...
Page 175: Related To Gp-Gl Command
11.2 Related to GP-GL command This section is useful only when using the GP-GL command. Setting the GP-GL step size The distance to travel with 1 step can be changed. Match the setting value of the application to be used. Operation Press the [ ] icon.
Page 176: Enabling/Disabling The ' : ' And ' ; ' Commands
Enabling/Disabling the ' : ' and ' ; ' commands If the first part of the data is lost when the GP-GL command is set, these commands may be having an adverse effect. In this case, set the ' : ' and ' ; ' commands to DISABLED. Operation Press the [ ] icon.
Page 177: Moving The Pen While Raised Or Lowered In Response To The 'W' Command
Moving the pen while raised or lowered in Response to the 'W' command Here, you can change the settings for the 'W' command, which is a GP-GL arc cutting command. The pen will move to the specified starting position in the raised status when it is set to TOOL UP, regardless of the pen’s conditions.
Page 178: Related To Hp-Gl Command
11.3 Related to HP-GL command This section is useful only when using the HP-GL command Model ID response This function set the operation upon receipt of the "OI" command requesting for the model ID. The reply will be 7550 when set to 7550, and 7586 when set to 7586. Operation Press the [ ] icon.
Page 179: Circle Command Resolution
Circle command resolution This is a function to set the resolution when receiving the HP-GL command arc cutting command for pen plotter. Select from "AUTO" or "DEFAULT" of 5 degrees. Operation Press the [ ] icon. Press the [CONFIG]. Press the [COMMAND]. Press the [ ] icon twice.
Page 180 Chapter 12: Maintenance This chapter describes the settings for the maintenance. SECTION IN THIS CHAPTER 12.1 Daily Maintenance 12.2 Replacing Cutter Blade 12.3 Cleaning the Cutter Plunger 12.4 Cutter Plunger Exchange 12.5 Setting the Alarm for Blade Wear Alarm 12-1...
Page 181 12.1 Daily Maintenance Daily maintenance During the course of daily plotter operation, be sure to observe the following precautions: (1) Never lubricate the mechanisms of the plotter. (2) Clean the plotter's casing using a dry cloth or a cloth that has been moistened in a neutral detergent diluted with water.
Page 182 12.2 Replacing Cutter Blade Replace the cutter blade by referring to the structure diagram of the cutter plunger. CAUTION To avoid bodily injury, handle cutter blades with care. PHP33-CB09N-HS/PHP33-CB15N-HS Blade-length adjustment knob Plunger Cutter blade φ 0.9mm / φ1.5mm Plunger-cap Color ring PHP33-CB09N-HS: Blue PHP33-CB15N-HS: Red...
Page 183 12.3 Cleaning the Cutter Plunger Letting leftover media and paper dust build up on blades can dull them and cause them to deteriorate. Be sure to clean the cutter plunger regularly and remove build up. CAUTION To avoid bodily injury, handle cutter blades with care. Cleaning Please clean off paper dust and media powder build up from the blade.
Page 184 12.4 Cutter Plunger Exchange The tip of the cutter plunger gets worn down due to friction with the media. When the tip of the cutter plunger gets worn down, cut quality suffers. When the tip of the plunger cap gets worn down, it is recommended that you exchange the cutter plunger. PHP33-CB09N-HS/PHP33-CB15N-HS Cutter Plunger CAUTION...
Page 185 12.5 Setting the Alarm for Blade Wear Alarm This function allows to measure the cut distance of pen or cutter blade and use it as a guide to determine when the cutter blade should be replaced. BLADE WEAR DETECT ON/OFF, SET BLADE GROUP, ALARM DISTANCE and BLADE WEAR DETECT settings are required.
Page 186 Press the group number you want to assign for each tool condition number (2 to 8). Supplement • The horizontal axis represents the tool condition number (1 to 8) to be set. The vertical axis represents the group number. • ] will be displayed at the assigned location.
Page 187 Specify the setting value using the [ ] [ ] icon or the [ ] icon. Supplement You can set the range between 500 m and 100000 m (100 m step). Confirm the setting and press the [OK]. Press the [ ] icon.
Page 188 Press the group you want to set. Press the [CLEAR B. WEAR VALUE]. Press the [YES]. Press the [ ] icon. It will return to HOME screen. 12-9...
Page 189 Chapter 13: Troubleshooting Refer to this chapter if you feel something is wrong, or it does not work right. It also describes the settings of the plotter, confirming the cutting data, and method to create test patterns. SECTION IN THIS CHAPTER 13.1 Troubleshooting 13.2 Check plotter information 13.3 Printing the Setting of the Plotter...
Page 190 13.1 Troubleshooting When the plotter does not operate after turning the power on Symptom Possible Cause Solution • Nothing is displayed on the LCD panel. There is no power supplied. Check that the power cord is securely connected Or, the plotter is defective. to the plotter's AC line inlet and the electrical outlet.
Page 191 When it does not work right Symptom Possible Cause Solution Reference • Drops the media while Bright light might be shining Block the light if there is direct sunlight detecting. onto the media sensor. shining on the plotter that is placed near the window.
Page 192 Symptom Possible Cause Solution Reference • Tool condition changes. Setting of the priority is set to Change the setting of the priority to Priority of Cut Condition COMMAND PRIORITY. MENU PRIORITY. Selection. [ENTER] key is not pressed Check the TOOL CONDITION again. Setting the Tool Condition after changing the TOOL CONDITION.
Page 193 When the Cutting Result is Not Good Symptom Possible Cause Solution • Corners are rounded. Blade and OFFSET does not match. Change the OFFSET. • Corners are too sharp. It is rounded: Increase the OFFSET It is too sharp: Decrease the OFFSET •...
Page 194 Error Messages in GP-GL Command Mode Error LCD Display Cause Solution Displayed E02001 The plotter received an unrecognizable Press the [ENTER] key. command. Noise came in when the computer was Configure to drive the plotter from the menu turned on. of the software.
Page 195 Error Messages in HP-GL Command Mode If any of the following command errors occur, they are nearly always caused by following 2 reasons. (1) The configuration regarding the output device in the application software has changed. (2) The plotter's interface conditions have changed. Perform following if these are the cause of the problem.
Page 196 Error LCD Display Cause Solution Displayed E03014 Too many parameters in the I/O related Check the program. Error 14 command. 13-8...
Page 197 AXIS Error Messages Error LCD Display Cause Solution Displayed E04001 Tilt to adjust with AXIS ALIGNMENT is too Reload the media. large. 13-9...
Page 198 Other Error Messages Error LCD Display Cause Solution Displayed E01001 The plotter is defective. Contact your sales representative. to E01005 E01006 The plotter is defective. Contact your sales representative. E01007 The plotter is defective. Contact your sales representative. E01008 The plotter is defective. Contact your sales representative.
Page 199 An error has occurred in the wireless LAN Turn the power off and then on again. module. Contact your sales representative or the Graphtec call center if the error still appears. E05001 Data larger than the buffer size cannot be Perform normal cutting not using the copy copied.
Page 200 Error LCD Display Cause Solution Displayed E07002 The encryption key of access point is Please enter the correct encryption key of incorrect. access point. E07003 No access point was found to connect to. Make sure there is an access point nearby and that the access point is turned on.
Page 201 Caution Message Symptom LCD Display Description W06009 When panel cutting has been set to ON, the following functions are not available. • AREA function • COPY function 13-13...
Page 202 13.2 Check plotter information Displays information such as the firmware version and serial number of the plotter. Operation Press the [ ] icon. Press the [INFO]. Press the [MACHINE INFORMATION]. Information about the machine is displayed. Press the [ ] icon. Press the [ ] icon.
Page 203 13.3 Printing the Setting of the Plotter Condition setting list can be printed when you need to check the current setting of the plotter. Operation Load a media larger than A1 size. Set the pen tool to the pen station and select the condition where the pen tool is set. Press the [ ] icon.
Page 204 It will return to READY status when the printing is completed. Supplement Once printing starts, it cannot be paused or canceled midway. 13-16...
Page 205 13.4 Creating Test Pattern Create a self-test pattern to check the operation of the plotter. Operation Load a media larger than A1 size. Set the pen tool to the pen station and select the condition where the pen tool is set. Press the [ ] icon.
Page 206 To exit, turn off the power. Supplement Once the self-test starts, it will continue to run until you turn off the power. 13-18...
Page 207 13.5 Creating Cutting Demo Create a cut demo pattern to check the operation of the plotter. Operation Load a media larger than A1 size. Set the pen tool to the pen station and select the condition where the pen tool is set. Press the [ ] icon.
Page 208 13.6 Confirm the Plotting Data Output of the dump list of the cutting data received by the plotter is possible. It is used to check if the transmission of cutting data is performed correctly. Operation Load a media larger than A1 size. Set the pen tool to the pen station and select the condition where the pen tool is set.
Page 209 Outputs the received cutting data as a command. To exit, turn off the power. 13-21...
Page 210 13.7 Self Diagnostic Test Operation status can be tested by self-diagnostic test by operating the sensors and switches following the instruction on the screen. Supplement Diagnostic test can be performed only right after the power is turned on. DIAGNOSTICS cannot be selected from the menu once any operation, such as loading media, is performed.
Page 211 Press the [ ] icon. It will return to HOME screen. 13-23...
Page 212 13.8 Reading the error message Contents of most current 32 errors can be checked. Operation Press the [ ] icon. Press the [INFO]. Press the [ ] icon. Press the [ERROR MESSAGES]. ERROR MESSAGES screen is displayed. Left column is time the error occurred, and right column is the type of the error.
Page 213 Check the error message and press the [OK]. Press the [ ] icon. Press the [ ] icon. It will return to HOME screen. 13-25...
Page 214 Appendix This chapter describes the specification of the plotter. SECTION IN THIS CHAPTER A.1 Main Specifications A.2 Supplies A.3 External Dimensions A.4 Menu Tree A.5 Initial Setting...
Page 215 (W × D × H) *4 Weight (Approx.) *4 45.5 kg *1: Varies depending on the type of Graphtec-authorized film and the cutting conditions. *2: When using basket. *3: HP-GL is a registered trademark of the US Hewlett Packard Company.
Page 216 Supplies Supplies Item Model Contents Cutter plunger PHP33-CB09N-HS Used with φ0.9 mm diameter cutter blades (for CB09) PHP33-CB15N-HS Used with φ1.5 mm diameter cutter blades (for CB15) Water-based fiber-tip pen plunger PHP31-FIBER Plunger for water-based fiber-tip pen (set of 1) Oil-based ballpoint pen plunger PHP34-BALL Plunger for oil-based fiber-tip pen (set of 1)
Page 217 External Dimensions Unit: mm Dimensional accuracy: ±5mm CE8000-130AP External dimensions (approx.) 1644 × 1219(811) × 1076 mm (W × D1(D2) × H)* *: Stand and basket are included.
Page 218 Menu Tree [1/1] MEMORY SELECTS DATA FILE [1/2] TOOL DATA SORTING [1/2] BLADE WEAR ALARM SETUP BLADE WEAR DEECT. SET BLADE GROUP [2/2] ALARM DISTANCE CLEAR B.WEAR VALUE INITIAL B. ANGLE POSITION [2/2] TOOL UP HEIGHT TOOL UP/DOWN [1/1] AXIS AXIS POINT SETTING AXIS MODE [1/2]...
Page 219 Continued [1/3] [1/2] CONFIG COMMUNICATION WIRELESS LAN WIRELESS LAN * When connected to wireless ACCESS POINT LAN module IP ADDRESS [2/2] CONNECTION INFO WIRED LAN * When connected to wired LAN unit [1/3] COMMAND COMMAND TYPE GP-GL STEP SIZE HP-GL ORIGIN POINT [2/3] HP-GL MODEL EMULATED BUFFER CLEAR...
Page 220 Continued [1/3] INFO MACHINE INFORMATION CONDITION LIST DIAGNOSTICS [2/3] ERROR MESSAGES DATA DUMP SELF TEST [3/3] CUTTING DEMO. CONDITION CONTITION No. [1/6] EDIT CUT CONDITION TOOL OFFSET [2/6] SPEED FORCE [3/6] ACCEL. [4/6] CUT LINE PATTERN [5/6] BLADE CTRL FORCE TANGENTIAL MODE [6/6] OVERCUT...
Page 221 Initial Setting Menu items Setting item Initial value TOOLS SETTING DATA SORTING (TOOL) BLADE WEAR ALARM SETUP INITIAL B. ANGLE POSITION 2mm BELOW TOOL UP HEIGHT NORMAL POSITION AXIS SETTING AXIS MODE AXIS ALIGNMENT (AXIS) AREA PARAMETERS CUT AREA LOWER LEFT (Default) (AREA) CUT AREA UPPER RIGHT...
Page 222 Menu items Setting item Initial value EDIT CUT No.1 MEDIA NAME Condition No. 1 CONDITION TOOL SPEED FORCE ACCELERATION No.2 MEDIA NAME Condition No. 2 TOOL CB09U SPEED/FORCE/ACCELERATION 30/8/2 CUT LINE PATTERN TANGENTIAL MODE OVERCUT START INITIAL DOWN FORCE No.3 MEDIA NAME Condition No.
Page 223 Specifications are subject to change without notice. CE8000-130AP User’s Manual CE80AP-UM-151 March 31, 2024 1st edition-01 GRAPHTEC CORPORATION...
