GRAPHTEC CE6000 SERIES User Manual Page 145

Graphtec ce6000 series cutting plotter.
Hide thumbs

Advertisement

5

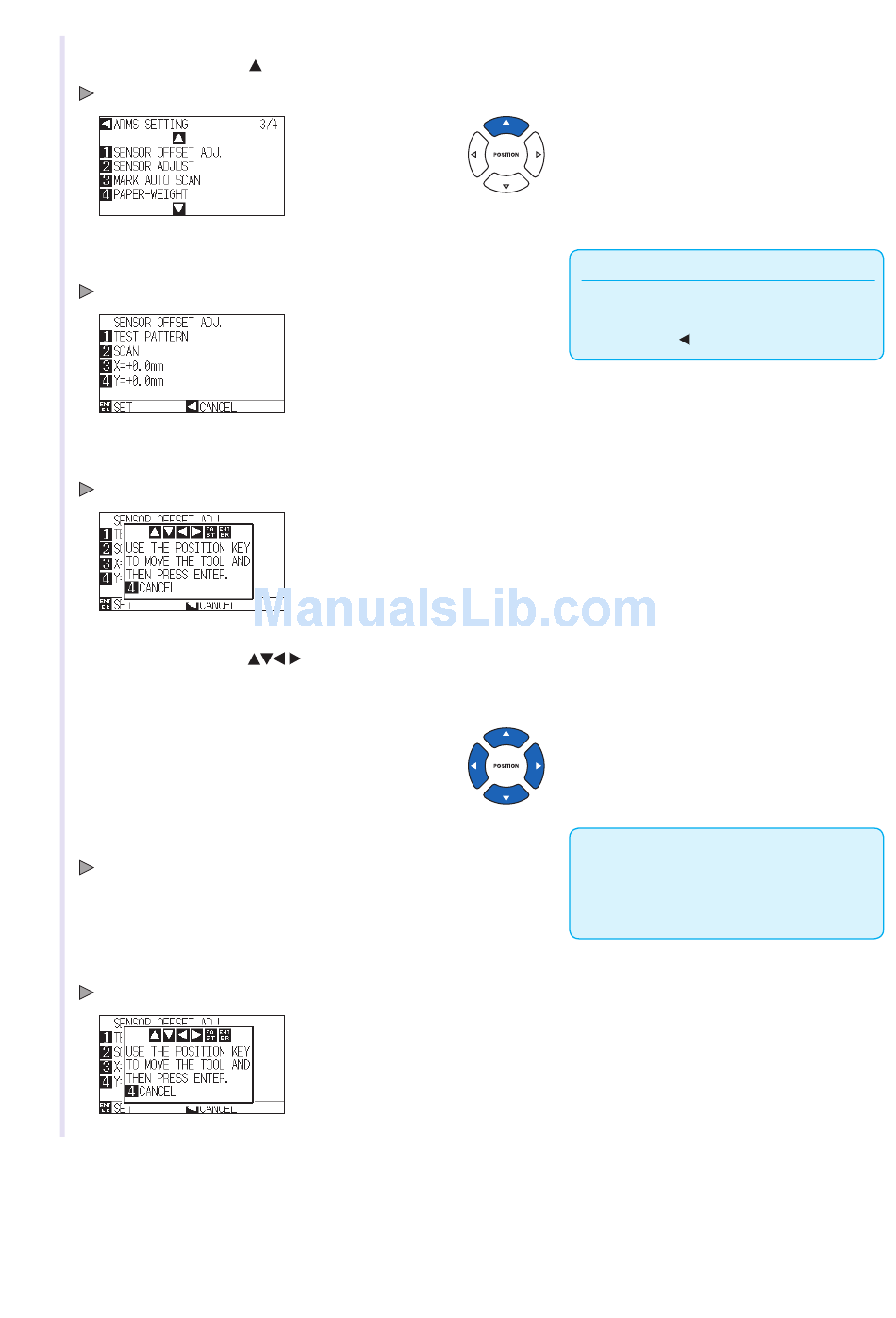

Press the POSITION ( ) key twice.
ARMS SETTING screen (3/4) is displayed.
6
Press the [1] key (SENSOR OFFSET ADJ.).
SENSOR OFFSET ADJ. screen is displayed.
7
Press the [1] key (TEST PATTERN).
Following message is displayed.
8
Press the POSITION (
to the position to plot the registration mark (position nothing
is printed).
9
Press the [ENTER] key.
A revised registration mark is created, and then it will return to SENSOR
OFFSET ADJ. screen.
10
Press [2] key (SCAN). The following message is displayed.
Following message is displayed.
) key and move the tool carriage
5-28
Supplement
It will return to ARMS setting screen (3/4)
without changing the settings when you press
the POSITION ( ) key (CANCEL).
Supplement
It will return to SENSOR OFFSET ADJ.
screen without plotting by pressing the [4] key
(CANCEL).
