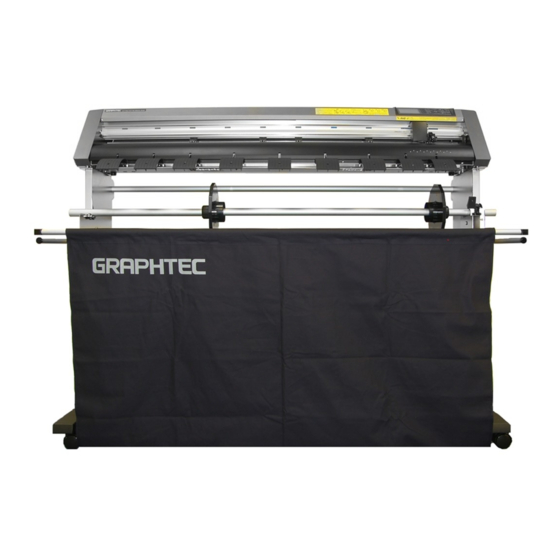

Preface
Thank you for choosing this product. Carefully keep this manual in a handy location for quick reference as necessity
prior to use to ensure safe and correct use and also to thoroughly understand the functions and operate them
effectively.
Prior to use
Be sure to read the attached "TO ENSURE SAFE AND CORRECT USE" prior to use. Otherwise, it may cause an
unexpected accident or fire.
Notes on this Manual
(1) No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,
without the prior written permission of Graphtec Corporation.
(2) The product specifications and other information in this manual are subject to change without notice.
(3) While every effort has been made to provide complete and accurate information, please contact your sales
representative or nearest Graphtec vendor if you find any unclear or erroneous information or wish to make other
comments or suggestions.
(4) Notwithstanding the stipulations in the preceding paragraph, Graphtec Corporation assumes no liability for damages
resulting from either the use of the information contained herein or the use of the product.
Registered Trademarks
All names of companies, brands, logotypes, and products appearing in this manual are the trademarks or registered
trademarks of their respective companies.
Copyright
This User's Manual is copyrighted by Graphtec Corporation.
Roles of each manual
•
Setup Manual (this manual) ....... Read it to understand Displaying method for CE6000-120AP User's Manual, Method for
•
User's Manual (PDF data) ......... Read it to thoroughly understand the functions of CE6000-120AP.
*
describes the reference pages of User's Manual.
P.000
*
indicates the reference page in this Setup Manual.
P.00
connecting this Cutting Plotter with the PC, Installing method for driver software, and to
prepare for the operation.
MANUAL NO.CE60AP-UM-8M2
621609912

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE6000-120AP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GRAPHTEC CE6000-120AP

Summary of Contents for GRAPHTEC CE6000-120AP

  • Page 1 (2) The product specifications and other information in this manual are subject to change without notice. (3) While every effort has been made to provide complete and accurate information, please contact your sales representative or nearest Graphtec vendor if you find any unclear or erroneous information or wish to make other comments or suggestions.

  • Page 2: Before Starting The Setup

    For the Parts Names, please see in the CE6000-120AP User's Manual (PDF). P.1-3 • Assemble the CE6000-120AP, and set up it. For the assembling procedures, see either Manual attached to the Stand or CE6000-120AP User's Manual (PDF). P.1-5 • When there are virus detection program or system resident program, terminate them beforehand.

  • Page 3: Attaching A Tool

    To prevent injury, avoid absolutely touching the tool immediately after the cutting plotter is turned on or whenever the tool is moving. For details, see “Attaching a Tool” on in CE6000-120AP User’s Manual. P.2-4 The cutter holder is suitable only for use with the cutter plunger. Please refrain from attaching the plotting pen to it.
  • Page 4 Make sure that the tool bracket is engaged on the tool's flange, and then tighten the screw. Bracket to hold tool Flange Removing the tool When removing the tool, turn it counterclockwise to remove the tool. Attaching a pen Attach a pen to the pen station. •...

  • Page 5: Loading Media (Paper)

    2. Loading Media (Paper) Both roll media and sheet media can be used with the CE6000-120AP. (For more information about loading a sheet media, please see the User's Manual (PDF). Load the media according to the instructions given for each type. Use the grit roller on the right side of the media (looking from the front) as a guide when setting it in the media sensor.
  • Page 6 Set the stock shaft in from the front. Align the receiving end of the media shaft with the grooves on the roller and push CAUTION down firmly to set it in place. • During a plotting or cutting operation, be Stock shaft sure to keep your hands, hair, and so forth Groove...
  • Page 7 Put the roll media on the roll media tray and then push the tip of the roll media Supplement forward from the back of the machine. Make sure to pull it so that there is no • The media must always be positioned over slackening across the roll media's route.
  • Page 8 When Feeding Long-axis Media (at least 2 meters) Position the push rollers at least 5 mm inside the edges of the media. CAUTION Push roller When setting on inside more than 30 mm, cut cross is not available. Media To use a paper wider than 1,119 mm Carefully set the position of the left edge of the push roller.

  • Page 9: Aligning The Push Roller

    Raise the set lever after confirming that the route the roll paper passes through is taut and not slackening. The push roller position and the roll paper will stay in place. Media set lever Lowering the lever releases the stopper lock. CAUTION During a plotting or cutting operation, be sure to keep your hands, hair, and so forth away...

  • Page 10: Changing The Hold-Down Force

    The down force applied by the middle 3 push rollers can be changed depending on the width and type of media used. When using the genuine Graphtec paper, please set the force of the middle push roller to "Normal" and the remaining 2 rollers to "Low" (OFF).
  • Page 11 Press the [ENTER] key. After the DISPLAY LANGUAGE is selected, the LENGTH UNIT screen will appear. Press the [1] key (METRIC) or the [2] key (INCH) to select the length unit setting. Confirm the setting and press the [ENTER] key (SET). Setting will be set, and the default screen is displayed.

  • Page 12: Running Cutting Tests

    Align the blade tip to the tip of the cutter pen, and make it touch the surface of the media. Blade Media Supplement The blade will gradually extend to suit the thickness of the media being cut; the • optimal length is slightly greater than the thickness of the media. Blade length can be changed by spinning A test cut will then be performed, and the blade length adjusted if there is any the adjustor on the blade.

  • Page 13: Adjustment Of Offset

    Press the [ENTER] key. CAUTION 1 cut test pattern is cut. When the [ENTER] key is pressed, the tool carriage will start moving, so take care not to cut your fingers. Press the [ENTER] key after completion. CONDITION screen is displayed. Press the [COND/TEST] key.

  • Page 14: Installing The Software

    * For the latest OS, please access our web site 1. Launching the Start Menu After starting up Windows, insert the [USER GUIDE & SOFTWARE CD] provided with the CE6000-120AP into your computer's CD drive. The below screen will appear before the Start Menu launches.
  • Page 15 A. Install CE6000-120AP Software If you are using the CE6000-120AP for the first time, click A window for selecting the [Port Name] to be used on [Install CE6000-120AP Software] to install the device. appears. This operation will install the [CE6000-120AP Driver].

  • Page 16: Connecting The Usb Cable

    First, make sure that Windows 7 has been launched successfully. Next, connect the USB cable accompanying the CE6000- 120AP to your computer. Ensure that the CE6000-120AP is turned off when you do. (1) Ensure that the Plotter's power is turned off (" "...
  • Page 17 B. Install User's Manual Follow the below procedures to install the CE6000-120AP When this screen appears, click on [Finish]. User's Manual (PDF format). Adobe Reader must be installed on your computer in order to read the manual. This concludes the installation of the [User's Manual].
  • Page 18 621609912...
