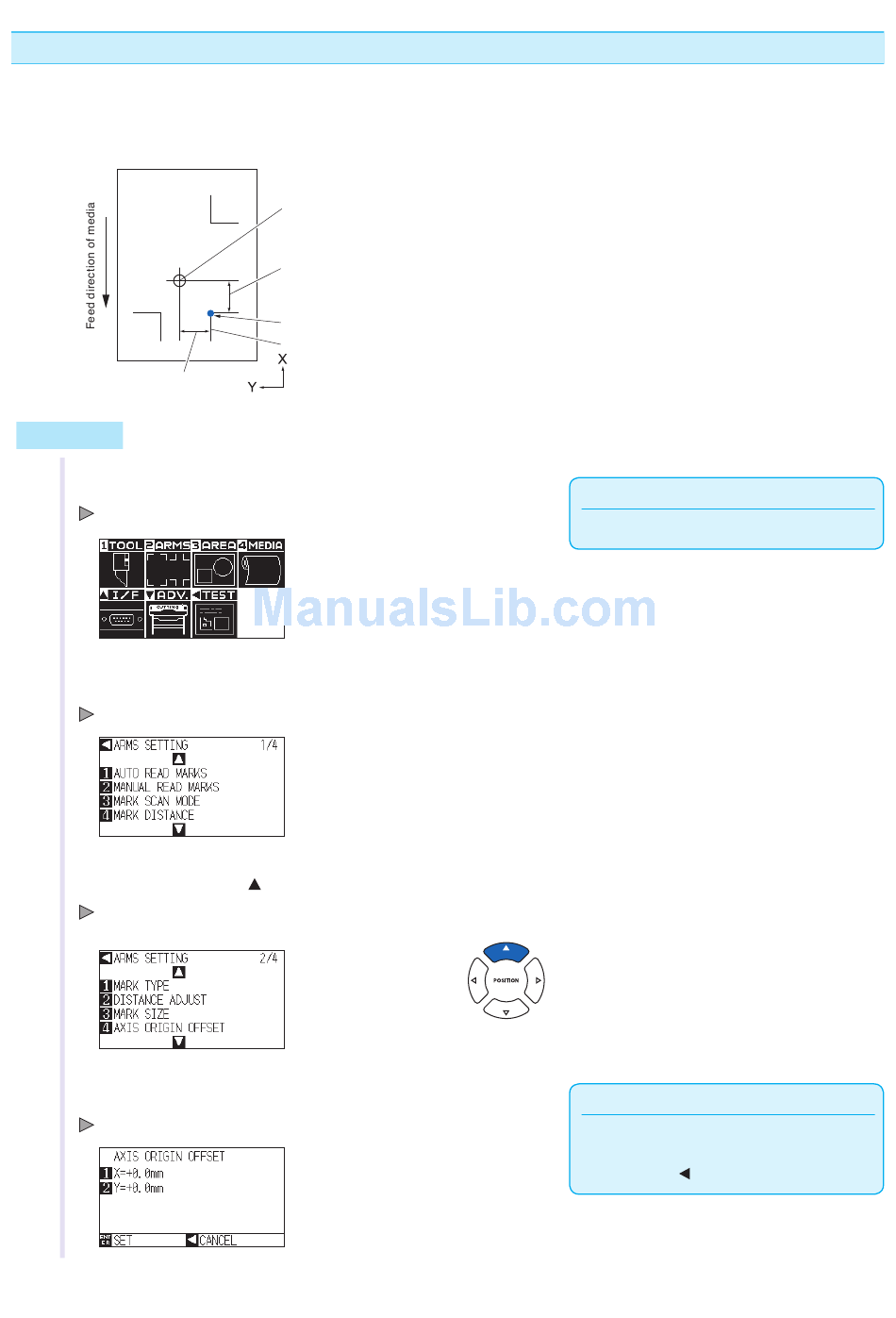

Setting Offset Between the Registration Mark and Cutting Origin Points

You can set the cutting point after the registration mark is read.
The default offset for the registration mark is 0.0 mm on X and Y, and can be changed to any point from -1000.0
to +1000.0 mm.
Y offset
Press the [PAUSE/MENU] key.
MENU screen is displayed.
Press the [2] key (ARMS).
ARMS SETTING screen (1/4) is displayed.
Press the POSITION ( ) key.
ARMS SETTING screen (2/4) is displayed.
Press the [4] key (AXIS ORIGIN OFFSET).
AXIS ORIGIN OFFSET screen is displayed.
Moved origin point (Cutting Point)
X offset
Origin point after registration mark is read
Registration mark (point 1)
Perform the settings in Normal mode.
It will return to ARMS SETTING screen (2/4)
without changing the settings when you press
the POSITION ( ) key (CANCEL).
