Setting the Tangential Emulation

On/off and the mode of the tangential emulation can be set individually for each of 1-8 tool control numbers.

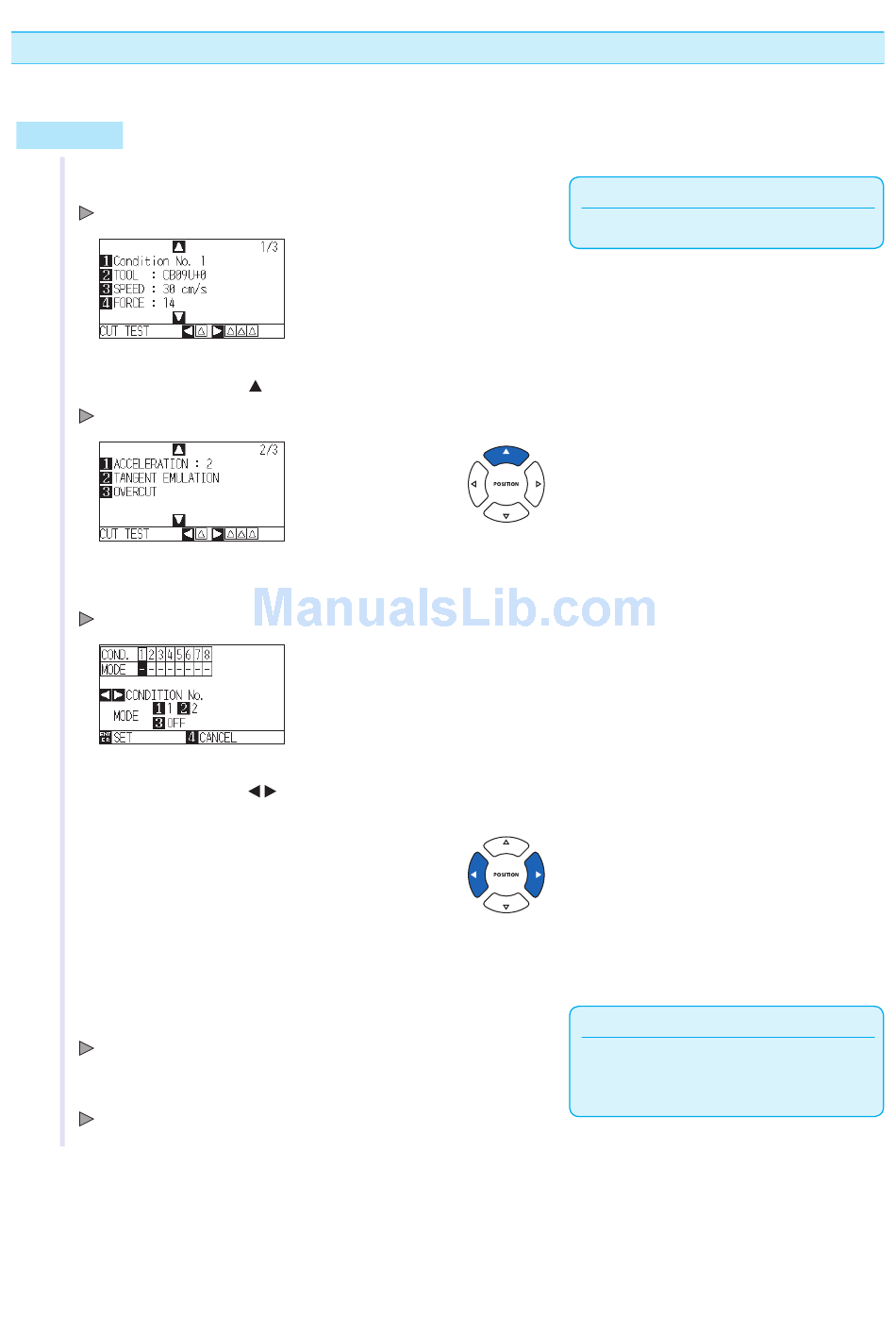

Operation
1
Press the [COND/TEST] key.
CONDITION setting screen (1/3) is displayed.
2
Press the POSITION ( ) key.
CONDITION setting screen (2/3) is displayed.
3
Press the [2] key (TANGENT EMULATION).
TANGENT EMULATION setting screen is displayed.
4
Press the POSITION (
number (CONDITION No.).
5
Press the [1] key (MODE1), the [2] key (MODE2), or the [3]
key (OFF) and select the mode.
6
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to CONDITION setting screen (2/3).
7
Press the [COND/TEST] key.
It will return to default screen.
) keys and select the tool condition
7-3
Supplement
Perform the settings in Normal mode.
Supplement
It will return to CONDITION screen (2/3)
without changing the settings when you press
the [4] key (CANCEL).
