Setting the registration mark automatic detection

When setting the registration mark automatic detection to on, the following operations will be performed.
If the current position of the tool is close to the position of the first registration mark (Point 1) at the time of
registration mark automatic detection, the registration mark is automatically scanned without moving the detect
start position of tool.
Supplement
If the current position of the tool is distanced from the first registration mark, detection may take a long time, and errors due to not
finding anything may occur.
When setting to OFF, the operation above is not performed.

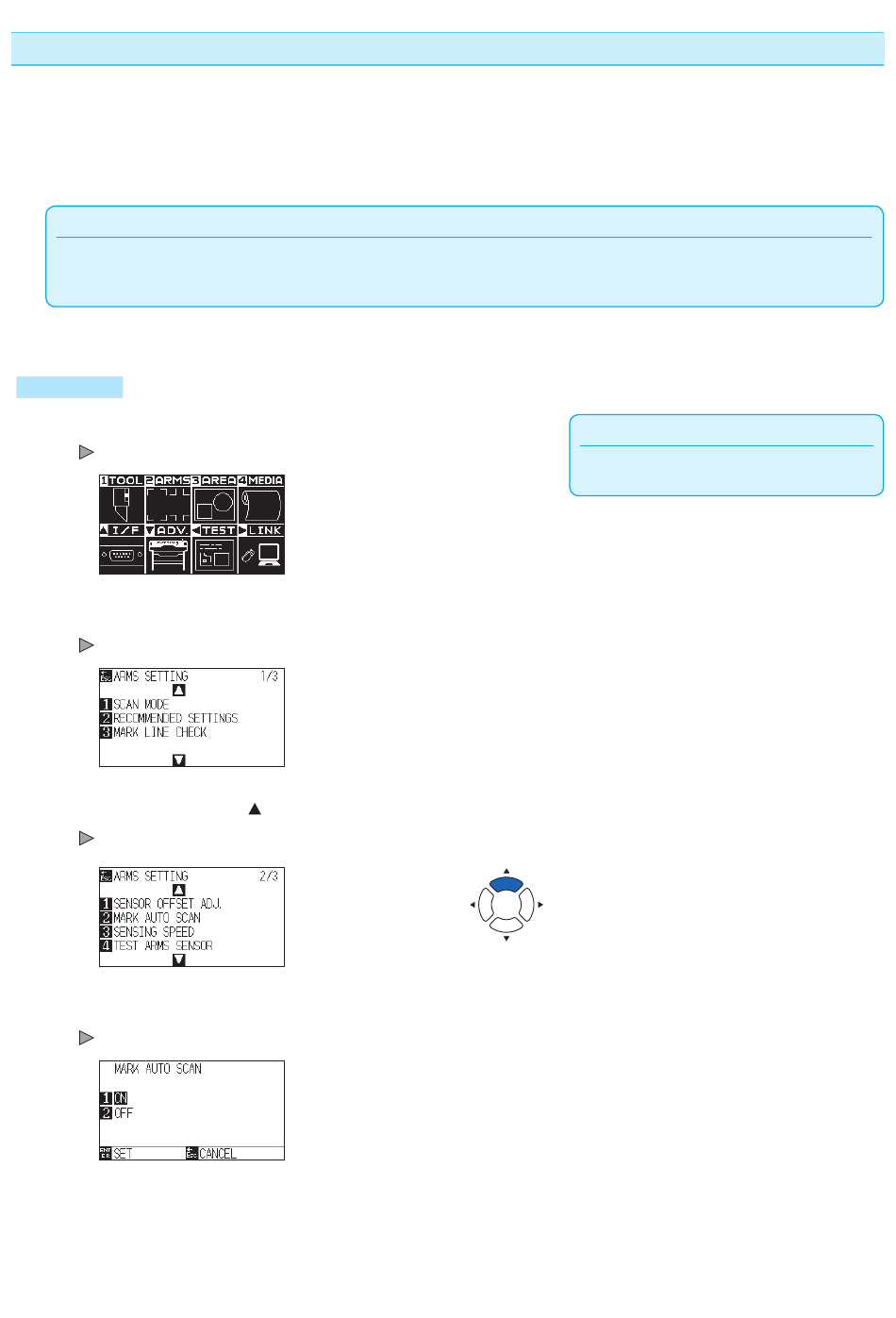

Operation
1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the [2] key (ARMS).
ARMS SETTING setting screen (1/3) is displayed.
3
Press the POSITION ( ) key.
ARMS SETTING screen (2/3) is displayed.
4
Press the [2] key (MARK AUTO SCAN).
MARK AUTO SCAN screen is displayed.
5
Press the [1] key (ON) or the [2] key (OFF).
Supplement
Perform the settings in Normal mode.
