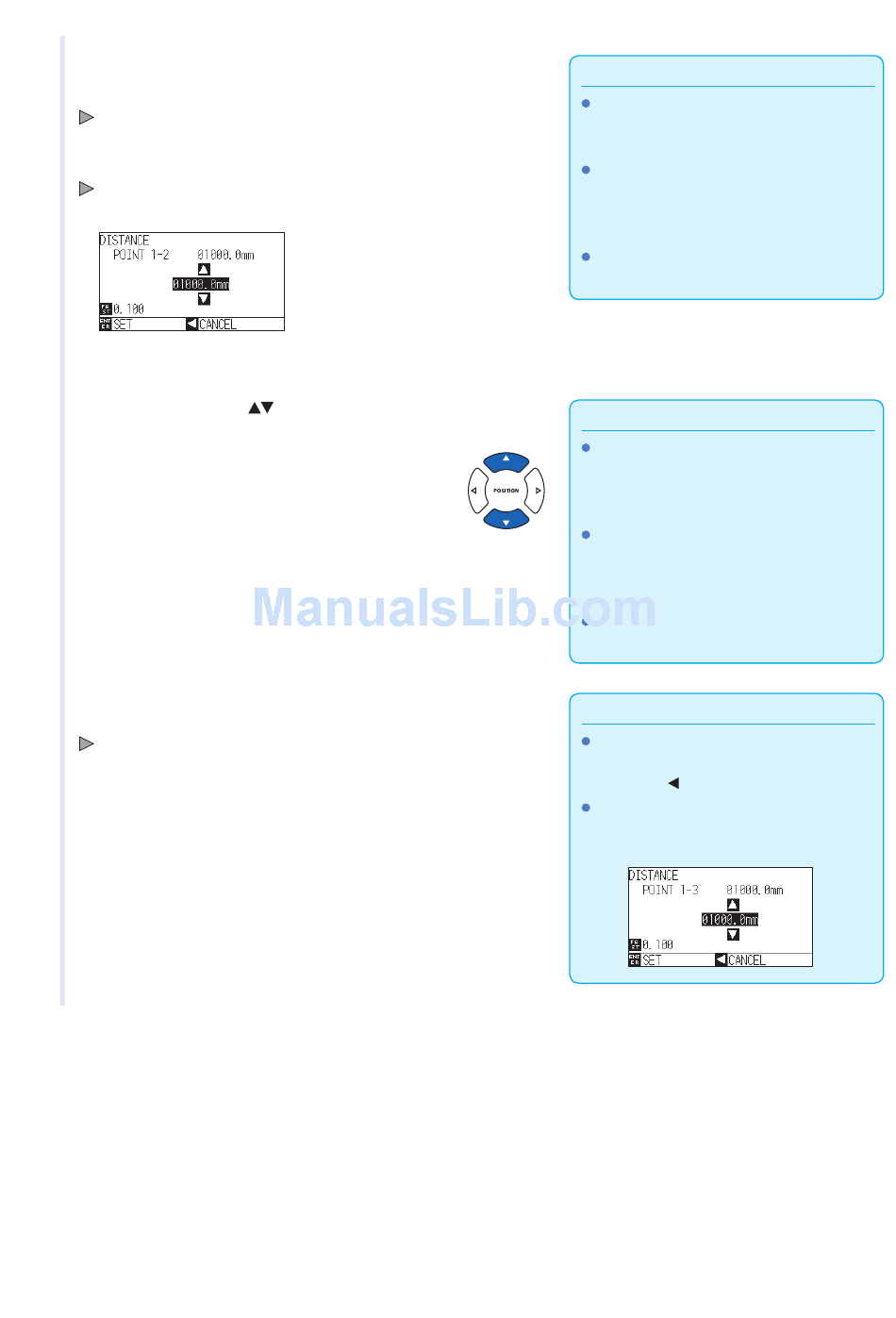

Confirm the position of the tool, and if it is OK, press the
[ENTER] key.
Registration marks are scanned. A message to move to next registration
mark position is displayed once the scanning is completed. Repeat
steps 4 and 5 following the message in that case.
DISTANCE entry screen is displayed once the registration mark is
scanned.
6
Press the POSITION (
setting value.
7
Confirm the setting and press the [ENTER] key (SET).
Adjustment by scanning the registration mark is completed, and it will
return to default screen.
) key and increase or decrease the
5-43
Supplement
Repeat steps 4 and 5 if a message
prompting to move to next registration mark
is displayed.
Numbers to repeat steps 4 and 5 depends on
the number of the registration marks to be
scanned. Follow the instruction displayed on
the screen.
It will scan and return to ARMS setting
screen (1/4) when the [4] key is pressed.
Supplement
Measured distance is displayed in the top
line in the DISTANCE input screen. Input
value (initially same as measured value) is
displayed under that.
If the input value is not changed, it will
assume that there is no difference between
measured distance and the distance in the
data.
Digits of settings can be changed by pressing
the [FAST] key.
Supplement
It will return to default screen without
changing the settings when you press the
POSITION ( ) key (CANCEL).
Distance input screen for point 3 is displayed
if it is set to 3POINTS or more, so repeat
steps 6 and 7 to set.
