Application Guide | iC7 Series Industry
Start
Forward
Coast
Inverse
Reference:
Potentiometer (4,7 kohm)

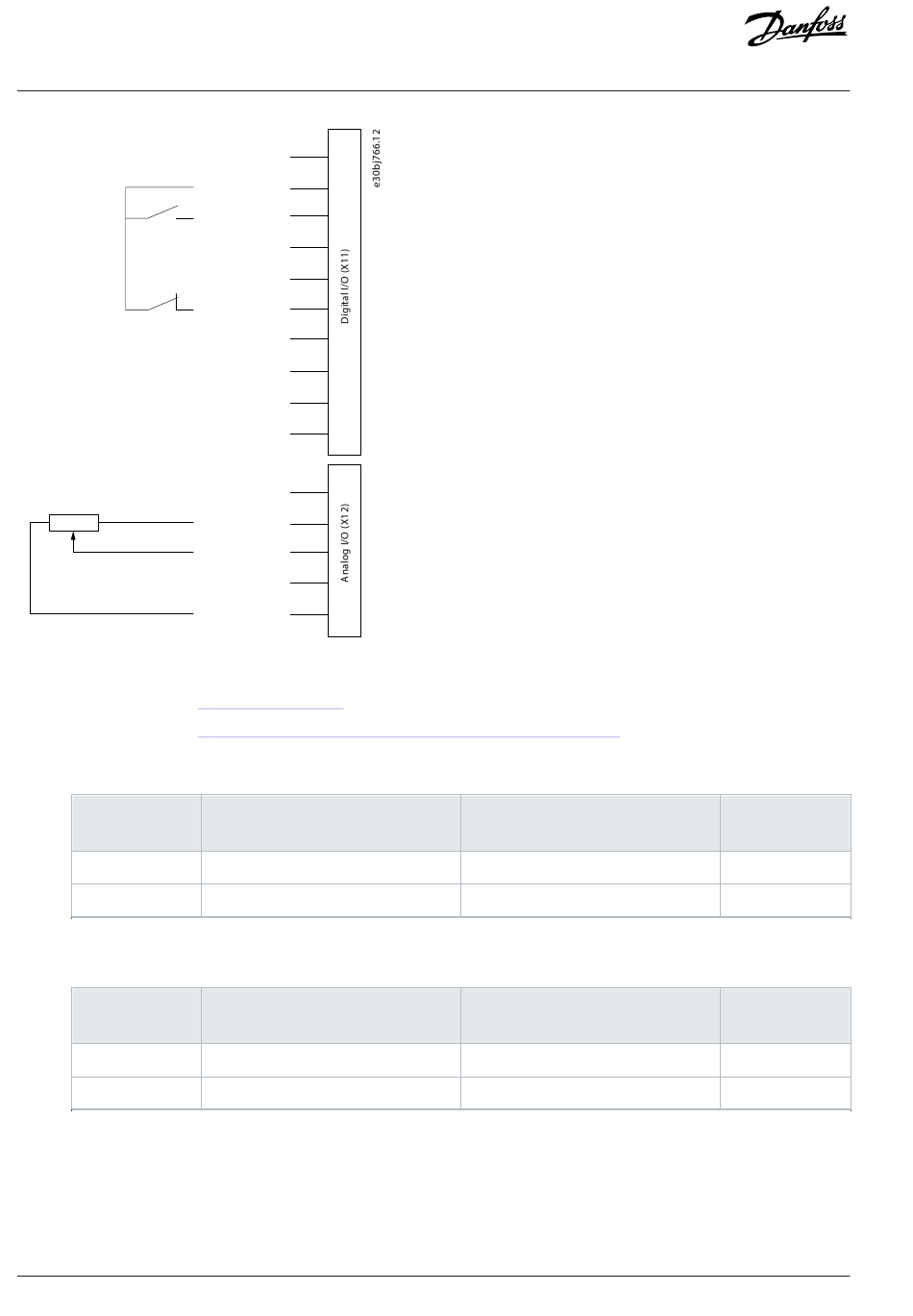

Figure 51: Wiring diagram example - Speed Control with Basic I/O
1.
Perform the steps in
2. Perform the steps in
3. Configure the operation mode for speed control.
Index
5.4.2.16
5.4.2.19
4.
Configure the type of speed reference used for the Advanced Control Place.
Index
5.5.6.2.1
5.5.6.2.2
5.
Configure speed limit settings.
70 | © 2024.05
11 (24V)
12 (24V)
13 (DI1)
14 (DI2)
15 (DI/DO1)
16 (DI/DO2)
17 (DI3)
18 (DI4)
19 (GND)
20 (GND)
31 (AO1)
32 (+10V)
33 (AI1)
34 (AI2)
35 (GND)
5.2 Basic Setup of a Drive.
5.3 Configuring the Motor, Motor Control, and Motor Thermal
Parameter name
Operation Mode
Motor Feedback Mode
Parameter name
Adv. Speed Reference
Adv. Speed Reference Logic
Protection.
Example setting
Speed control
Open loop
Example setting
Fieldbus reference, Reference 1 input
Sum
AB480436531518en-000601 / 136R0283
Configuration Set-up Examples
Parameter
number
2500
2502
Parameter
number
1915
1916
