Configuring Datalogger

3.3.6.2
There are 2 main steps to configuring Datalogger:
Configure the signals to be recorded using Datalogger.
l
Configure the Datalogger settings.
l
1. Open Datalogger
The Settings view opens.
2. Enter the required and desired settings.

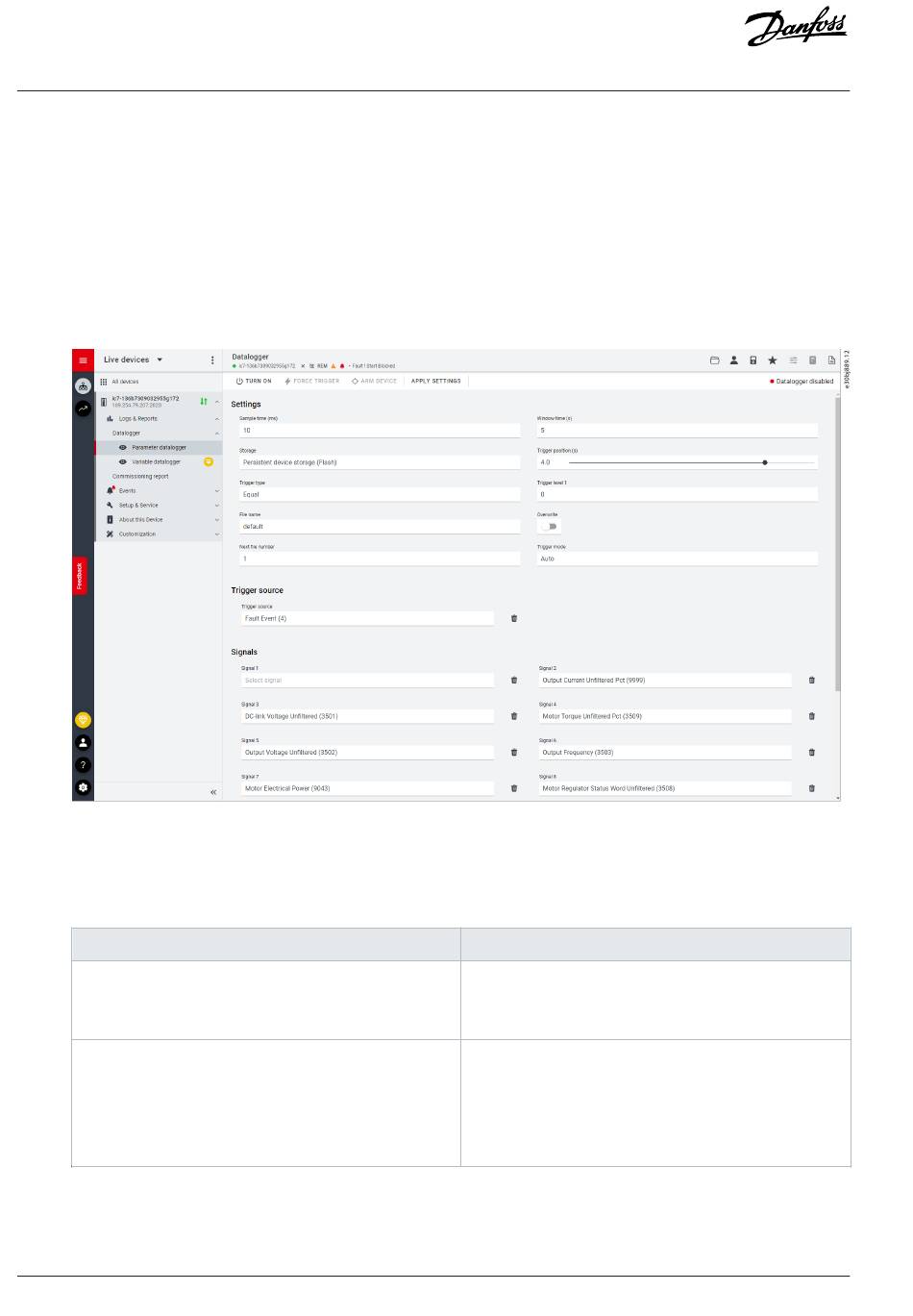

Figure 34: Datalogger Settings
The following table describes the user interface elements:
Table 12: Datalogger Settings Fields
Field name
Sample time (ms)
Window time (s)
52 | © 2024.05
Field description
Enter a sample time in ms. The actual sample time depends
on the switching frequency. Fast sample rate settings result
in data changing slowly in the resulting log.
Define the size of the capture window. Enter the window
time in seconds.
High sample rates and large capture times that result in
large capture files may be rejected when the configuration is
applied.
