When pulse input is selected as the input type, the only active parameters for that input are the pulse min. and max. frequency
parameters. The right filter is selected automatically for the incoming signal by the drive, so the parameters for the filters are not active
when pulse input is selected.
The set pulse minimum and maximum frequencies correspond to the set minimum and maximum speed references defined in
parameter group 5.8.4 Speed Reference.
Ref.
(RPM)
Speed Reference
Max
Speed Reference
Min
Pulse Min
Frequency

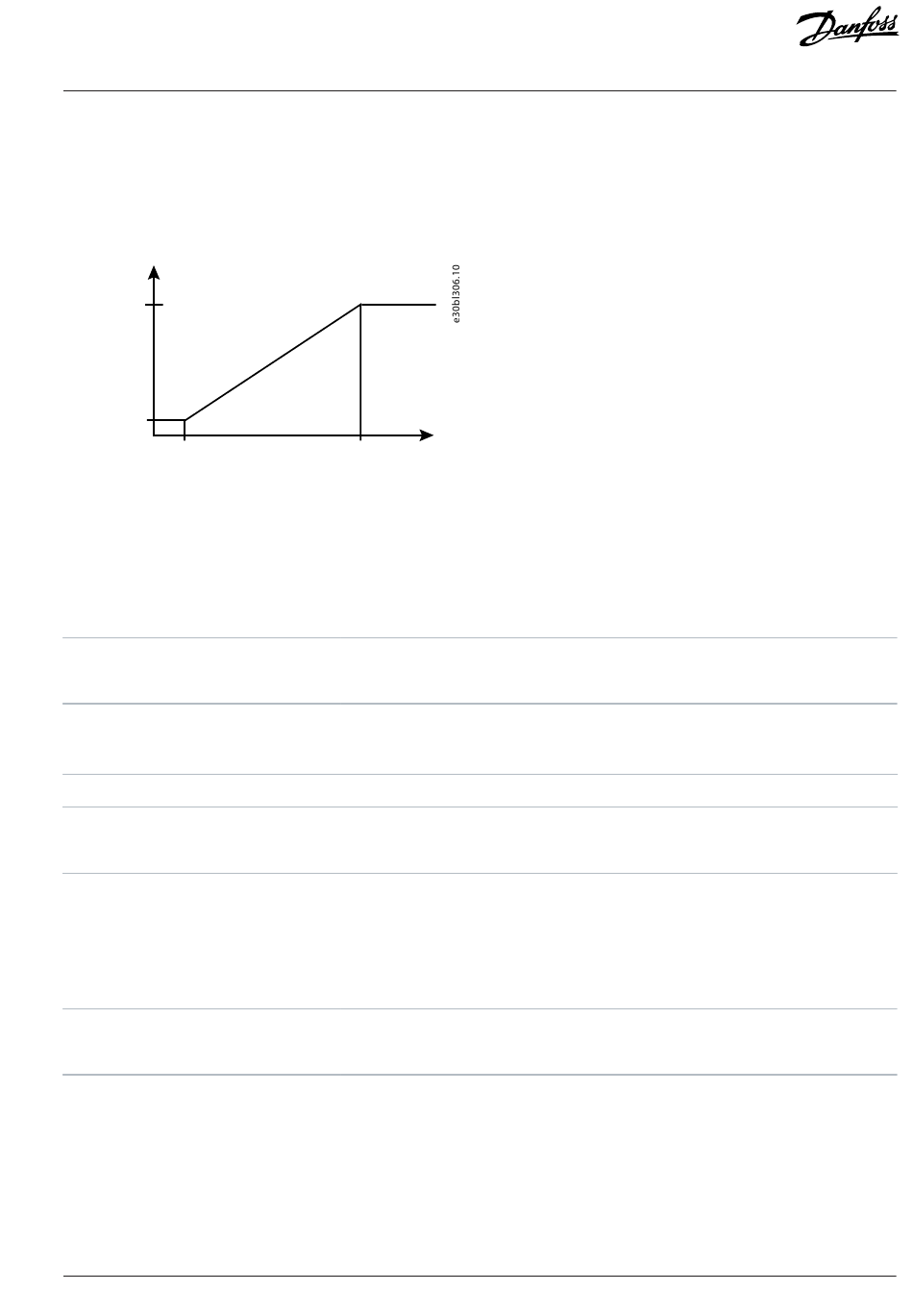

Figure 83: Pulse Input
General Settings (Menu Index 9.4.1)
6.10.2.2.2
P 9.4.1.1 Digital Input Logic
Description: Set the operating logic for all digital inputs.
Default Value: 2 [PNP mode]
Unit: -
The following are the selections for the parameter.
Selection Number
1
2
6.10.2.2.3 Input T13 (Menu Index 9.4.2)
P 9.4.2.1 T13 Terminal Mode
Description: Select the mode for the terminal.
Default Value: 3 [Digital input]
Unit: -
The following are the selections for the parameter.
© 2024.05
Pulse Max Input
(Hz)
Frequency
Parameter Type: Selection
Data Type: UINT
Selection Name
NPN mode
PNP mode
Parameter Type: Selection
Data Type: UINT
Parameter Descriptions
Parameter Number: 2261
Access Type: Read/Write
Selection Description
Open collector sink (NPN).
Open collector source (PNP).
Parameter Number: 2015
Access Type: Read/Write
