3.3.5 PC Control: Operating the Drive Using MyDrive® Insight
To operate the drive using PC control, click the Control Panel button in MyDrive® Insight. The following illustration shows the required
steps to operate the drive via MyDrive® Insight.

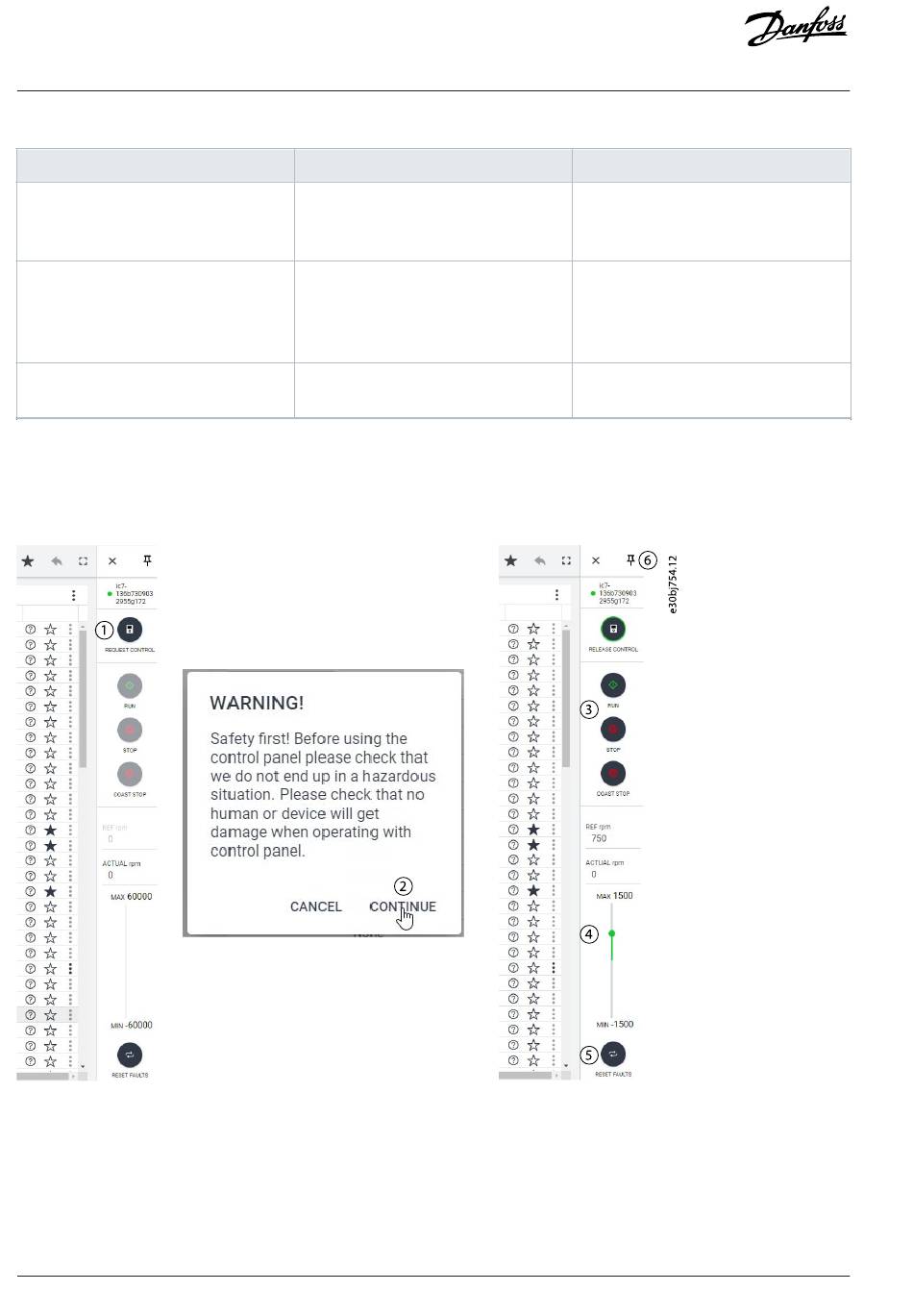

Figure 31: Operate the Drive Using MyDrive® Insight
1.
Click the REQUEST CONTROL button (1).
2.
To confirm secure operational conditions while controlling the drive using MyDrive® Insight, click Continue (2).
3. Use the START, STOP, and STOP COAST buttons (3) to perform drive operations. Use the sliders (4) to increase or decrease the
reference speed.
