User Interfaces

3

Overview of User Interfaces

3.1
To interact with a Danfoss iC7 Series drive, use either the control panel as a simple and direct interface, or the software tool MyDrive®
Insight for more advanced interaction with the drive. The control panel can be mounted directly on the drive, or close to the drive by
using a control panel mounting kit.
With MyDrive® Insight the drive can be accessed from a remote place, if the infrastructure is in place and the network provides the
required access rights.

Control Panel

3.2

iC7 Control Panel Options

3.2.1
The iC7 series offers a broad range of interfaces which suit different connectivity requirements to support wireless regulations.
The iC7 Series offers the following 2 different control panel options. Refer to the relevant Design Guide for information on which control
panels are available to your product.
BUS
WARN
READY
FAULT
Blind Panel

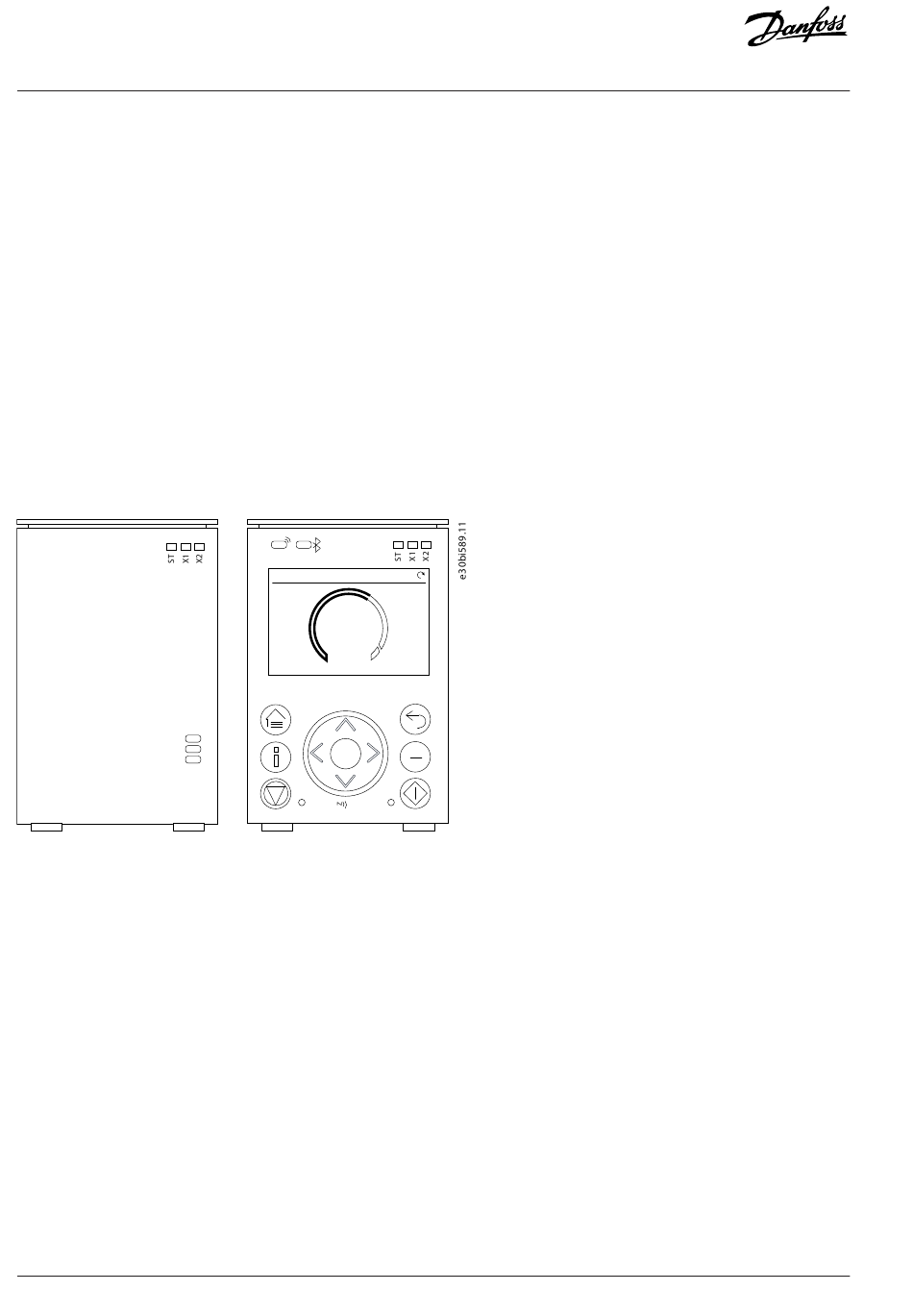

Figure 3: Control Panel Options
Blind Panel OPX00: This panel shows the basic status of the drive and fieldbus indicators. The panel is typically used when only
l
limited interaction with the drive is required after installation and commissioning, or when the drives are controlled by fieldbus.
Control Panel 2.8 OPX20: This panel is the standard user interface, and used when frequent interaction with the drive is required.
l
The panel enables easy setup of the drive via parameters, monitoring the drive status, and also shows event notifications.
Control Panel 2.8 0PX20 has the following features:
2.8" monochromatic user interface with a display resolution of 240 x 160 pixels.
l
Visual LEDs to illustrate drive status and fieldbus communication.
l
Halo indicator with 3 colors to illustrate drive status at a glance.
l
A display which can be customized to show required or essential information.
l
Buttons to control the drive locally, including a toggle button to easily switch between local and remote control.
l
Parameter widgets which support alphanumeric and special characters, integers, floating points, date time formats, choice lists, and
l
commands to configure application data.
Help texts to support operation.
l
32 | © 2024.05
BUS
1420
rpm
Speed
WARN READY FAULT
OK
REM
LOC
OFF RUN
Control Panel 2.8
