Control Panel Basic Configurations

3.2.3
The basic configurations of the control panel include:
A readout of the status of the motor and the drive, including warnings and faults.
l
Navigable menus, where the parameter settings of the drive can be viewed and changed.
l

Starting the Drive and Control Panel Display

3.2.4
While the drive is powering up until it is ready to operate, the display of the control panel shows the iC7 logo.
When the drive is started, it takes 25–30 s for the drive to be in ready state and for the control panel display to change to the
Status screen (default).

Understanding Status Screens

3.2.5
When the drive is in ready state, the control panel display shows the Status screen. The Status screen can be customized.
iC7_Industry
1
2 Running - Speed Limit
Motor Frequency

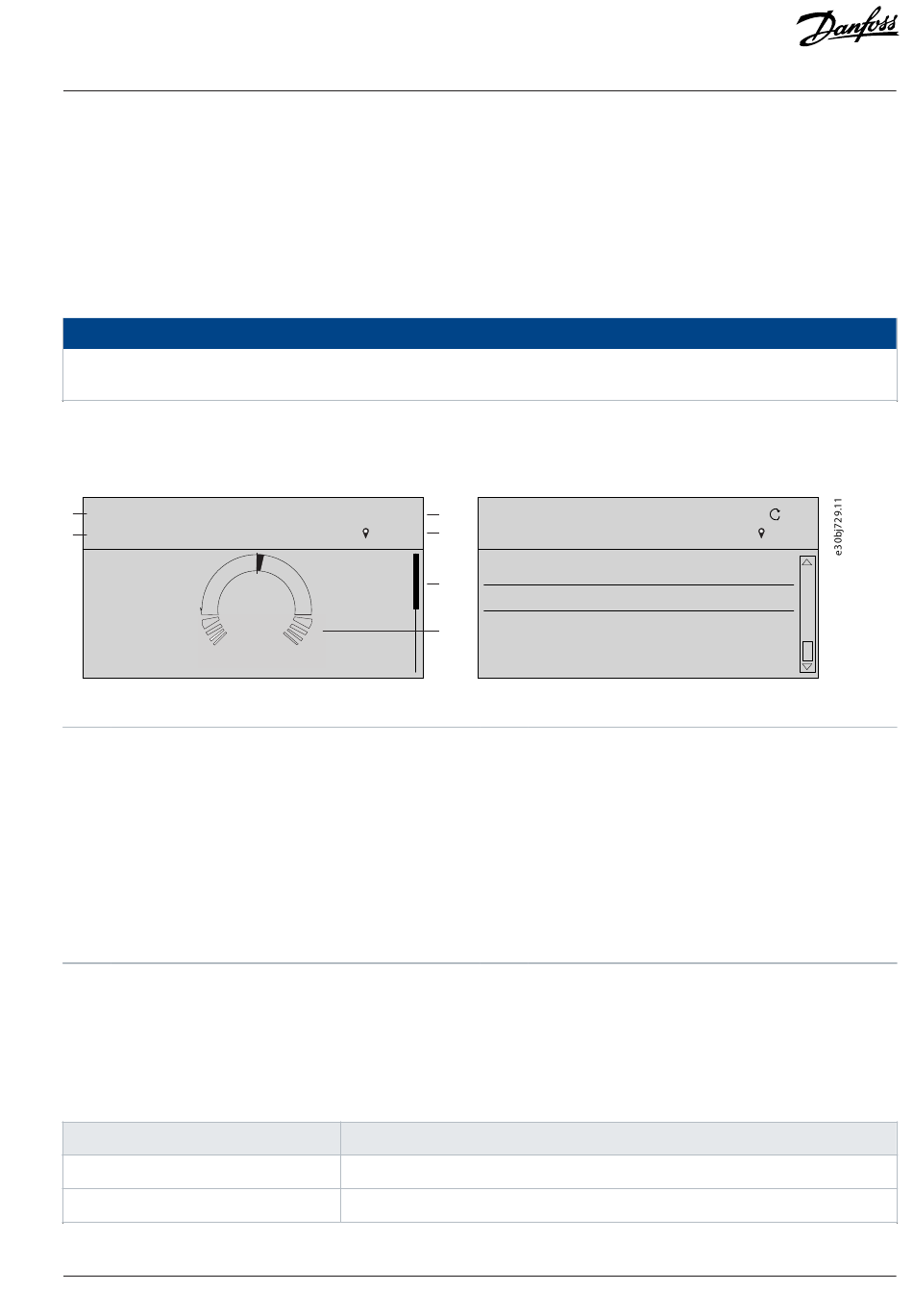

Figure 5: Status Screen (Donut View vs. Line View)
1 The name of the application software.
3 The current control of the drive. REM indicates remote
control and LOC indicates local control. The arrow shows
the direction of the motor.
5 The status signal value as a donut infographic view. It
is possible to show only a single signal in a donut view.
When more than 1 signal is configured, the screen changes
to a line view. A minimum of 2 and a maximum of 5 signals
are shown in the line view.
To navigate between Status Screen 1 and Status Screen 2, press the left and right arrows on the control panel.
The status line of the control panel shows the status of the drive. The status line texts are dynamically generated, based on the
configuration of the system. The following are some examples of basic operation:
Table 8: Drive Status Texts
Drive status in the panel
Drive Ready
Running at Reference
© 2024.05
LOC
49.2 Hz
40.0
Hz
Description
The drive is powered and ready to start.
The drive is running at the selected reference.
NOTICE
iC7_Industry
3
4 Running - Speed Limit
Motor Shaft Speed
5
Motor Torque
Motor Shaft Power
6
2 The status of the drive (see the following table).
4 Shows the value selected with parameter 8.3.2.2 Status
Line Right.
User Interfaces
LOC
49.2 Hz
1800.0 rpm
196.31 Nm
37.00 kW
