Table 8: Drive Status Texts
(continued)
Drive status in the panel
AMA Finished
Inertia Est. Ready
Inertia Est. in Progress
Inertia Est. Finished
Motor Feedback Test Ready
Motor Feedback Test Running
Auto Tuning in Progress

Adjusting Display Backlight and Contrast

3.2.6
When in Status Screen 1 or Status Screen 2, it is possible to adjust the backlight intensity and contrast of the display.
To adjust the display backlight and contrast settings, press the [Info] button and any of the arrow buttons of the control panel. The
settings are shown on the screen:
iC7_Industry
Motor Shaft Speed
Motor Torque
Motor Shaft Power

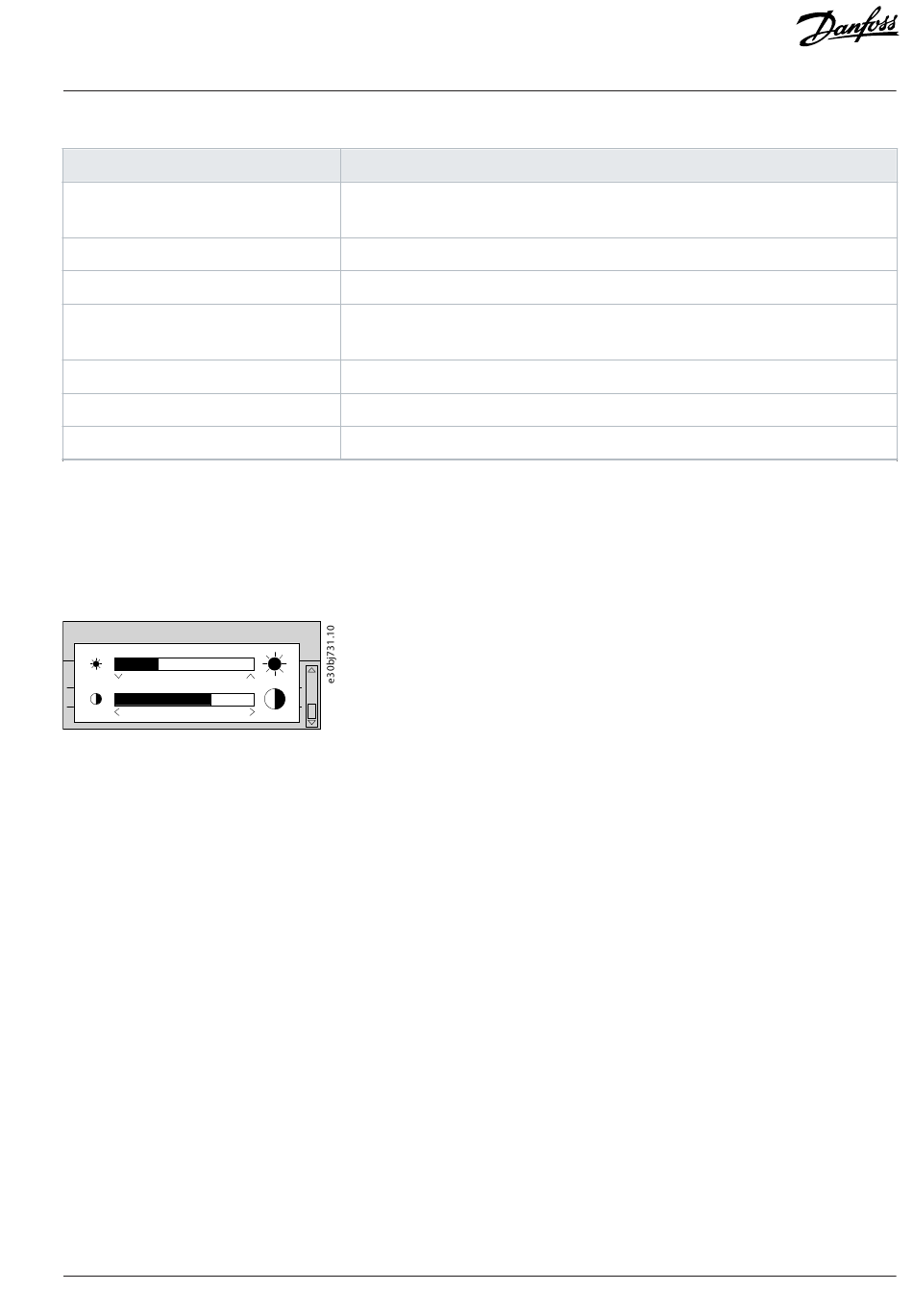

Figure 6: Intensity Change in Backlight and Contrast
To change the intensity of the backlight, keep pressing the [Info] button along with either the up or down arrow buttons of the
l
control panel.
To change the contrast, keep pressing the [Info] button along with either the left or right arrow buttons of the control panel.
l

Changing the Content of the Status Screens

3.2.7
The content of the status screens can be changed with parameters in the parameter groups 8.3.3 Status Screen 1 and 8.3.4 Status Screen
2. Up to five status signals can be selected for each screen. By default, Status Screen 1 shows the actual value of the selected control
mode, for example speed or torque, and Status Screen 2 shows three signals:
Motor shaft speed
l
Motor torque
l
Motor shaft power
l
If the screen shows only one signal, it is shown as a donut graph. If the screen shows more than one signal, they are shown as a line view.

Main Menu and Overall Navigation

3.2.8
Pressing the [Home/Menu] button toggles between the status screens and the main menu screen.
© 2024.05
Description
Advanced Motor Adaptation is finished. To restart the drive, remove and then reapply
the start command.
Inertia Estimation is activated and is waiting for the start command.
Inertia Estimation is running, measuring system inertia.
Inertia Estimation is finished. To restart the drive, remove and them reapply the start
command.
Motor Feedback Test is activated and is waiting for the start command.
Motor Feedback Test is running, checking feedback settings.
The Autotuning of the Process Controller is running, measuring the plant characteristics.
REM
0.0 Hz
0.0 rpm
0.00 Nm
0.00 kW
