Changing A Parameter Value; Locking The Control Panel Display - Danfoss iC7 Series Application Manual

Application Guide | iC7 Series Industry
Ramp 1 Type Selector
Linear Ramp
S-Ramp
Figure 10: The Selections of a Parameter
5.
To browse through the selections, press the up or down arrow buttons.
6.
To select a selection, press [OK].

Changing a Parameter Value

3.2.10
The example parameter in this procedure is P 5.8.6.2.2 Ramp 1 Accel. Time.
1. Press the [Home/Menu] button to enter the main menu.
2.
Navigate to Setup & Service and press [OK].
3.
Navigate to All Parameters and press [OK].
4. Navigate to parameter 5.8.6.2.2 Ramp 1 Accel. Time and press [OK].
The range of the parameter (minimum to maximum values) is shown at the bottom of the control panel display.
5. To go to the values before or after the decimals, use the left and right arrow buttons. A black highlight on the digit indicates the
location where the cursor is active.
6.
To increase or decrease the value, press the up and down arrow buttons.
7. Confirm the changes by pressing [OK].

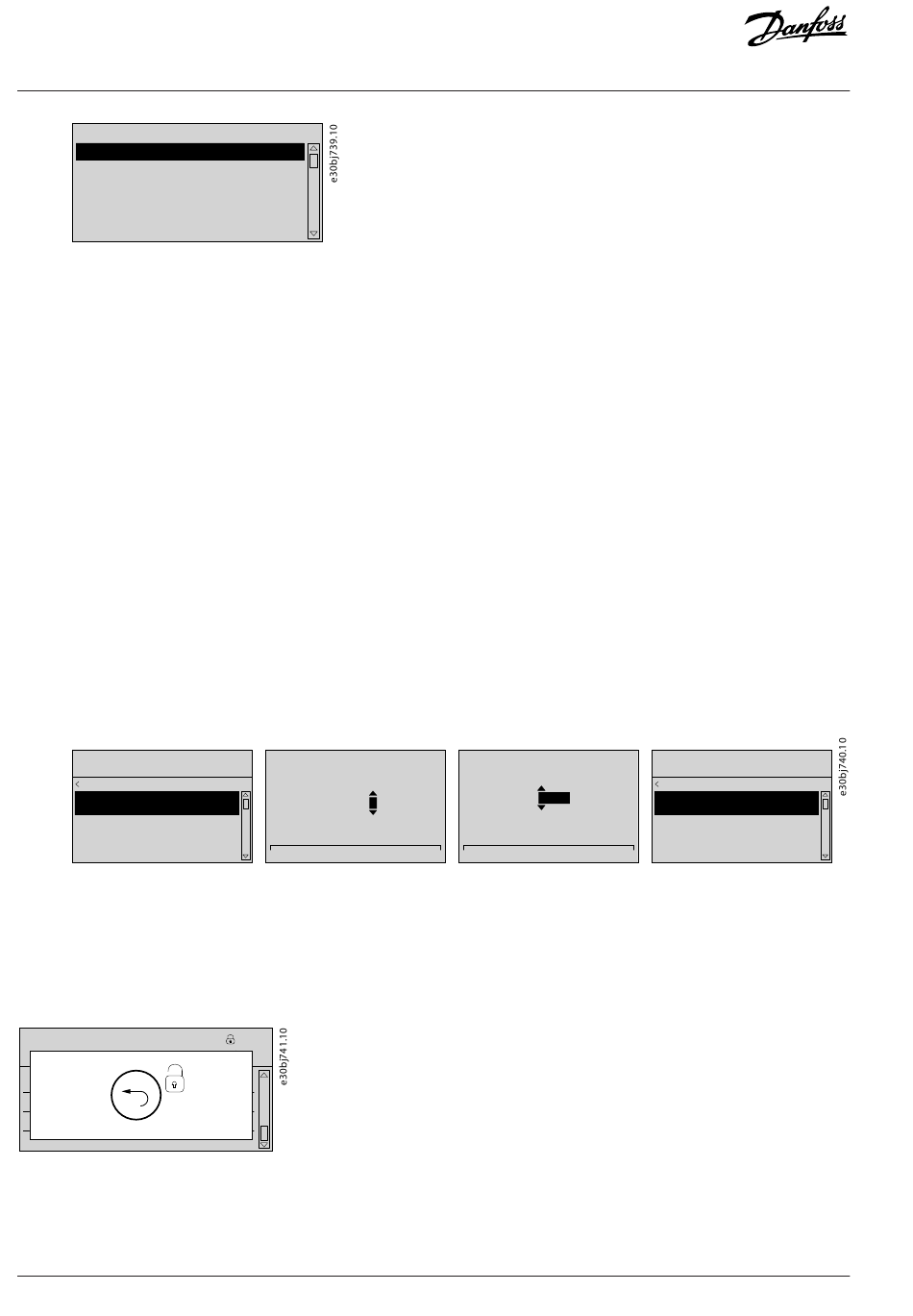

The following illustration shows the process of changing the value of the parameter.
1
iC7_Industry
0.0 rpm 0.0 Nm
Ramp 1
5.8.6.2.1 Ramp 1 Type Selector
Linear Ramp
5.8.6.2.2 Ramp 1 Accel. Time
5.00 s
5.8.6.2.3 Ramp 1 Decel. Time
5.00 s
Figure 11: Changing the Value of a Parameter

Locking the Control Panel Display

3.2.11
To avoid unintended interaction via the control panel, the control panel display can be locked.
To lock the control panel, press the [Back] button for 3 s. After 3 s, the following screen is shown.
iC7_Industry
Noad Drooping Frequency
Eotor Torque
3s
Dotor Shaft Power
Motor Current
Figure 12: Control Panel Lock Screen
When the control panel is locked, pressing the control panel buttons has no effect.
40 | © 2024.05
