Configuration Set-up Examples

5

Configuration Prerequisites

5.1
The section covers the basic configuration steps of a drive. It is possible that the application requires more steps such as protection
settings. Use the following topics as reference during the drive configuration/commissioning process:
For control panel related configurations, see
l
For information on using MyDrive Insight, see
l
For detailed information about the parameters, see Parameter Descriptions.
l
Ensure that the drive is mounted safely according to the installation and safety instructions shipped with the drive.
See also the following schematic for the correct wiring:

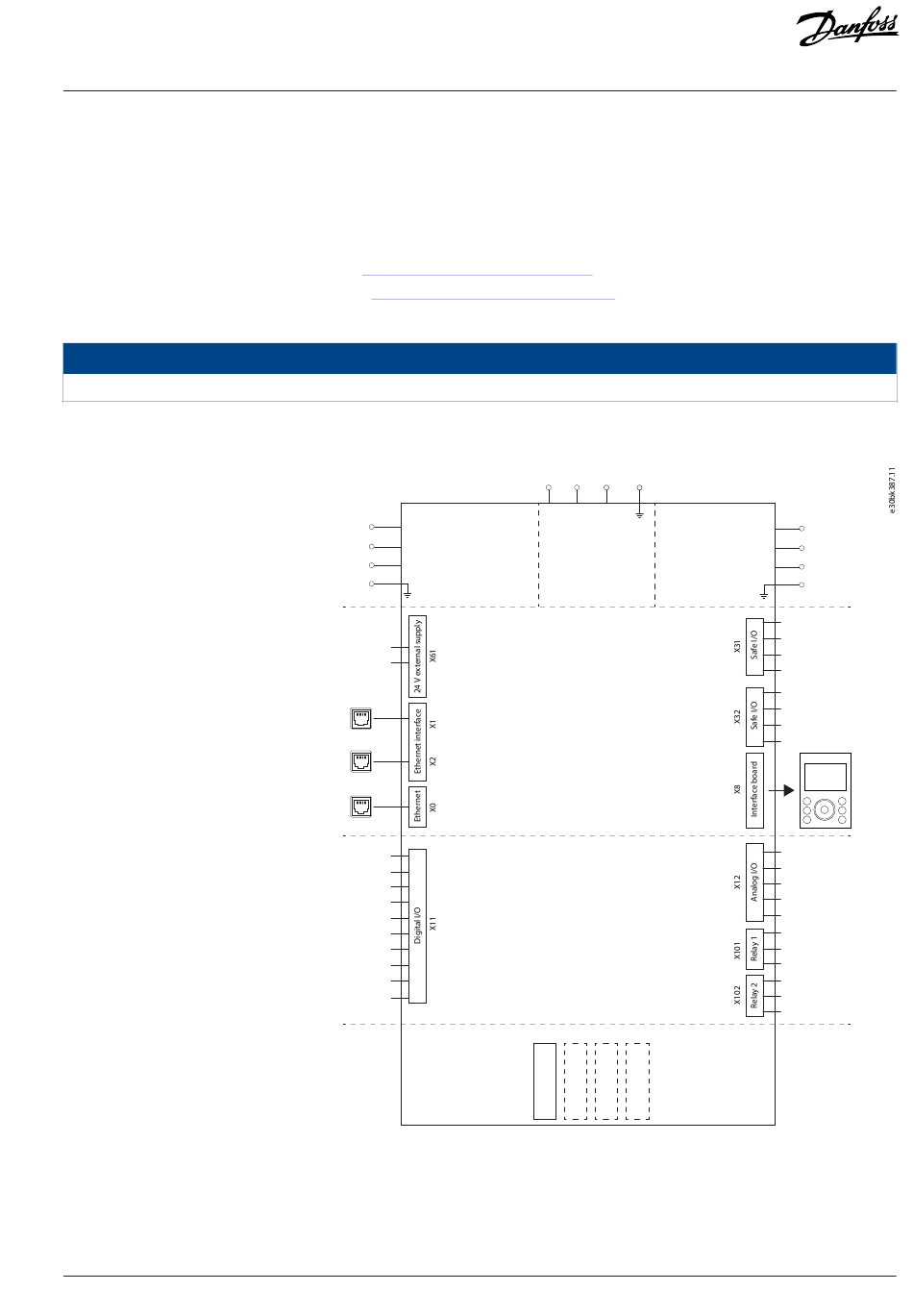

Figure 50: Wiring Diagram
© 2024.05
3.2.3 Control Panel Basic Configurations.
3.3.2 Getting Started with MyDrive
NOTICE
L1
~
L2
L3
GND
61 (+24 V ext)
62 (GND)
11 (24 V)
12 (24 V)
13 (DI1)
14 (DI2)
15 (DI/DO1)
16 (DI/DO2)
17 (DI3)
18 (DI4)
19 (GND)
20 (GND)
Configuration Set-up Examples
Insight.
-DC
+DC/R+ R– GND
=
Power
unit
Control
board
Basic I/O
board
(optional)
Option slots A–E
AB480436531518en-000601 / 136R0283 |
U/T1
~
V/T2
W/T3
GND
41 (24 V)
42 (S.INA+)
43 (S.INB+)
44 (S.FB+)
45 (GND)
46 (S.INA–)
47 (S.INB–)
48 (S.FB–)
31 (AO1)
32 (+10 V)
33 (AI1)
34 (AI2)
35 (GND)
1 (Com)
2 (NO)
3 (NC)
4 (Com)
5 (NO)
6 (NC)
